Customize Removable Grey Fiberglass Electric Heating Insulation

China Customize Removable Grey Fiberglass Electric Heating Insulation supplier
Customize Removable Grey Fiberglass Electric Heating Insulation supplier Customize Removable Grey Fiberglass Electric Heating Insulation supplier Customize Removable Grey Fiberglass Electric Heating Insulation supplier Customize Removable Grey Fiberglass Electric Heating Insulation supplier

Large Image :  Customize Removable Grey Fiberglass Electric Heating Insulation

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS, TUV
Model Number: JT8430TIJ-25-DN80

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: $25--$45 one piece
Packaging Details: 1 piece per poly bag, 10pcs per woven bag
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per day
Contact Now
Detailed Product Description
Type: Other Heat Insulation Materials Color: Grey
Size: Customized Density: 100-220Kg/m3
Thermal Conductivity: 0.035W/M.K - 0.045W/M.K±0.005 (normal Temperature) Usage: Outdoor
Application: Pipe Feature: Removable

Customize Removable Grey Fiberglass Electric Heating Insulation



Product Introduce



The insulation cover is divided into three layers. The first layer is lined with high silicon aluminum cloth, the second layer is ceramic or glass fiber insulation layer, and the third layer is high temperature coating of ceramic fiber protection layer, which is not afraid of water, oil, acid and alkali. The standard thickness is about 25 to 30 millimeters and the temperature is over 1000 degrees. Insulated covers are widely used in various industries such as injection machines, molds, injection machines, valves and pipes, elbows, flanges, heat exchangers and engine exhaust pipes. Working at the required temperature reduces heat transfer and consumes less energy.



Technical Parameters



Density 110-220Kg/m
Thickness 10-150 mm
Thermal Conductivity 0.035 w/m.k-0.045w/m.k
Temperature Up to 1000 degree celsius
Moisture absorption rate Less than 5%
Everage energy saving rate 25% to 40%


Characteristics



1. Good insulation effect.

2. Easy to disassemble and install, easy to clean pipeline equipment and easy to maintain.

3. It can be used repeatedly and has a long service life.

4. High strength, soft and easy to extend, dressing easy to bend.

5. According to the insulation parts customized, processing non-standard products.

6. Strong adaptability: insulation of pipes of different shapes at different temperatures.

7. Environmental protection, no pollution: no asbestos and other harmful substances, completely harmless to human beings and the environment.

8. Product appearance is neat and the surface can be scrubbed.

9. Improve the thermal environment to prevent burns.



Application



Removable insulation cover is a kind of high-grade pipe, equipment insulation material. Widely used in petrochemical, chemical, spinning, metallurgy, electricity, construction, kiln, paper making, pharmaceutical, shipbuilding and other fields of thermal equipment as well as a variety of pipelines, hvac and refrigeration equipment. It is applicable to a variety of channels, is the ideal equipment insulation pipe insulation material! Such as pipeline, elbow, flange, valve, observation mirror, tee, chemical reactor, equipment, thermal power generation, nuclear power turbine set, head, water pump, steel plant and other high temperature environment meter box and other gender.

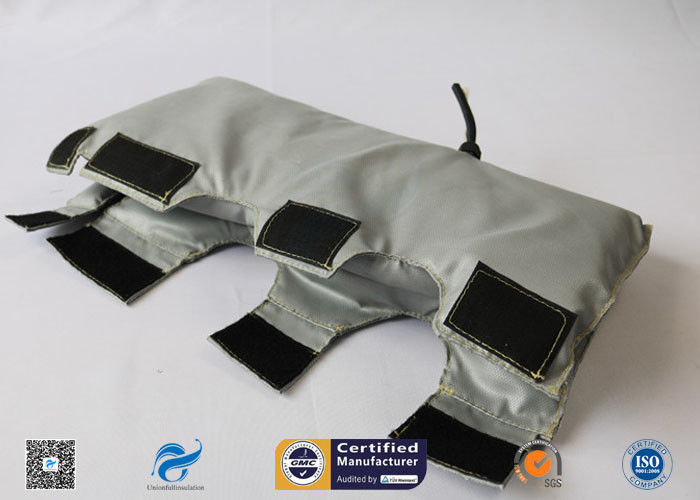

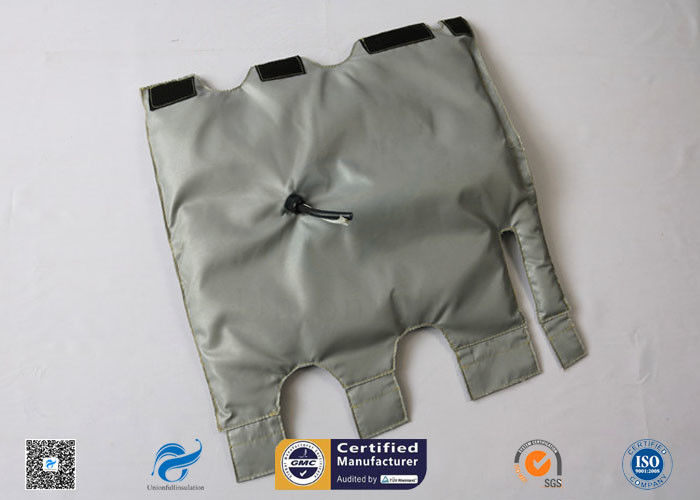

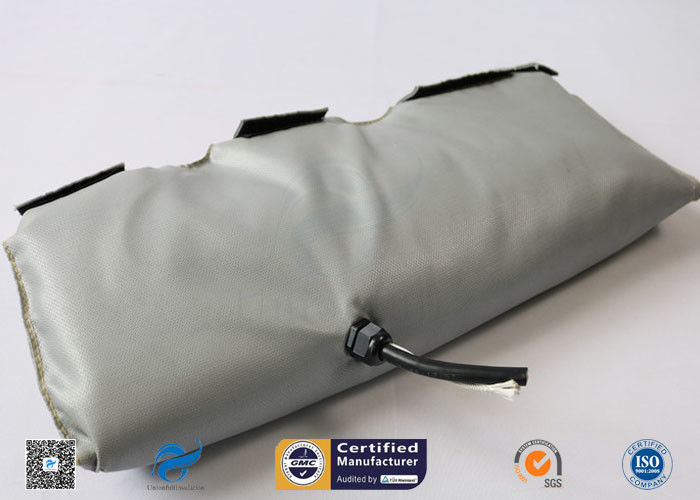

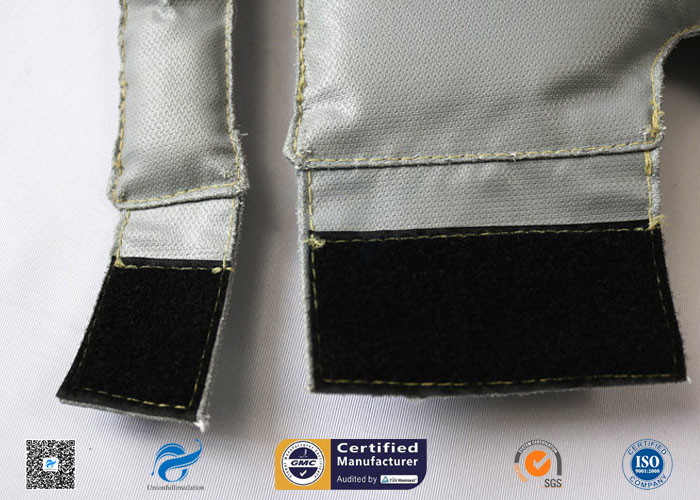

Pictures



Customize Removable Grey Fiberglass Electric Heating Insulation



Customize Removable Grey Fiberglass Electric Heating Insulation
