Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover

China Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover supplier
Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover supplier Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover supplier Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover supplier Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover supplier

Large Image :  Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS, TUV
Model Number: JT8430TIJ-30-DN80

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: $25--$45 one piece
Packaging Details: 1 piece per poly bag, 10pcs per woven bag
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per day
Contact Now
Detailed Product Description
Type: Heat Insulation Materials Color: Grey
Advantage: Removable, Flexible, Reusable Energy Saving: 40%-60%
Moisture Absorption Rate : <5% Density: 110-220Kg/m3
Asbestos Content: Asbestos Free Normal Lifetime: ≥5years

Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover



Product Introduce



Insulation covers are particularly useful for industrial applications, such as customisation. It is very flexible to use and easy to install.

Insulated jackets provide an economical and efficient solution that reduces energy consumption. And it can reduce the temperature of the product, thus preventing the operator from burning or scalding. According to the materials used, the application and the customer's requirements, the movable insulation coat (outer cover) can be manufactured in many different ways. Typically, a removable sleeve consists of a surface layer, a thermal layer, and an internal lining and/or wear resistant layer. Seams are sewn with high temperature thread, usually kevlar, ptfe-coated fiberglass or stainless steel thread for use.



Product performance



Products Index
Material non-pollution without any asbestos and other harmful substances
Temperature Range -70℃-260℃
Moisture absorption rate <5%
Thermal Conductivity 0.025 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)
Density 110-220Kg/m3
Thickness 10-70mm
Energy saving 40%-60%
Normal lifetime ≥5years



Features



1. Energy saving, reducing heat loss, and saving a large amount of steam consumption in long-term operation;

2. Safety, the steam line identification of some workshops is unclear, it is easy to burn the operator, and the surface temperature of the valve is lower and safer after the heat preservation;

3. Convenience of maintenance, if the valve needs to be repaired or disassembled, ordinary rock wool can not be used after heat removal, flexible detachable valve] insulation sleeve can be recycled.



Applications



Removable industrial thermal insulation is currently a high-end valve and equipment insulation product, widely used in petroleum, chemical engineering, electric power, chemical fiber, metallurgy, construction, shipbuilding, tire, kiln, paper, pharmaceutical and other fields of thermal equipment and various pipelines. , HVAC and refrigeration equipment. It is suitable for various pipes and equipment insulation and is an ideal pipe and equipment insulation product! Such as pipes, elbows, flanges, valves, sight glasses, tees, flow meters, level gauges, pressure gauges, chemical reactors, laboratory instruments, equipment, thermal power and nuclear power turbines, heads, pumps, steel plants Insulation of instrument boxes, heat exchangers, compressors, diesel engines, gas engines, engines and other special-shaped parts in high-temperature environments.

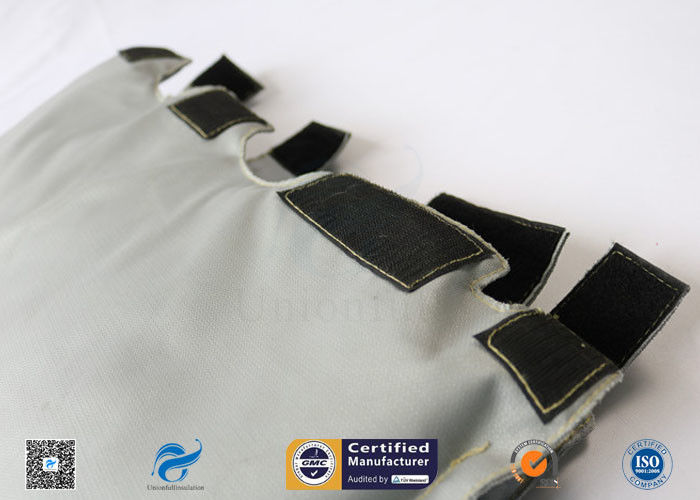

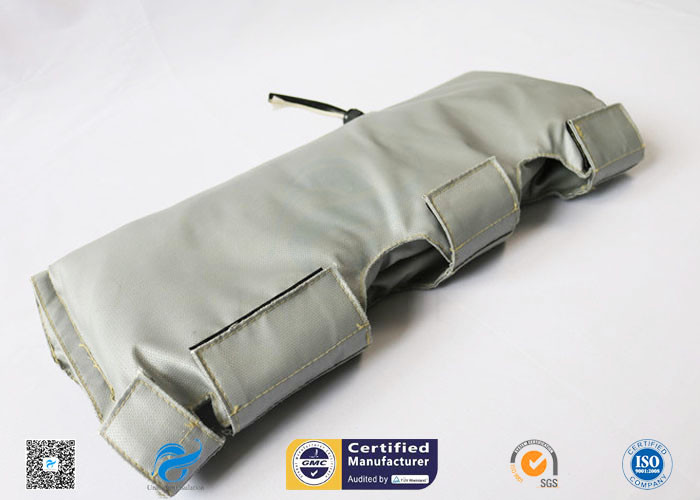

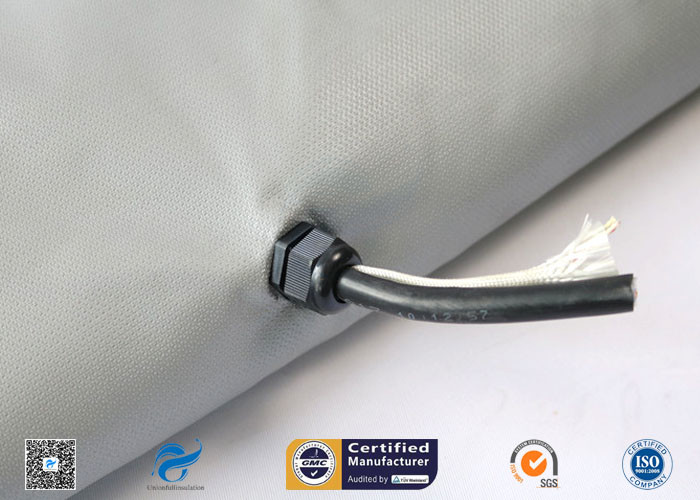

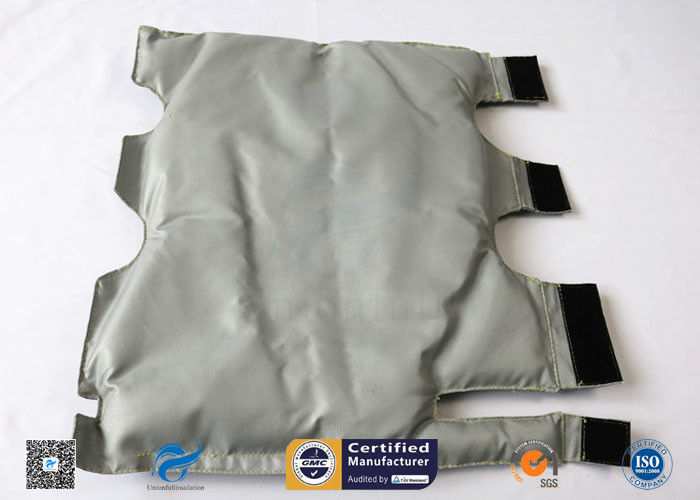

Pictures



Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover



Electric Heating Insulation Jacket Removable And Reusable Insualtion Cover
