Energy Saving Removable Thermal Insulation Jacket For Valve And Pipe

Energy Saving Removable Thermal Insulation Jacket For Valve And Pipe
Energy Saving Removable Thermal Insulation Jacket For Valve And Pipe Energy Saving Removable Thermal Insulation Jacket For Valve And Pipe Energy Saving Removable Thermal Insulation Jacket For Valve And Pipe Energy Saving Removable Thermal Insulation Jacket For Valve And Pipe

Large Image :  Energy Saving Removable Thermal Insulation Jacket For Valve And Pipe

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,UV
Model Number: JT8430TIJ-25

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: $20--$45 one piece
Packaging Details: 10 pcs in woven bag
Delivery Time: 2 weeks after receiving the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5,000 pcs per day
Detailed Product Description
Keyword: Thermal Insulation Type: Other Heat Insulation Materials
Function: Thermal Preservation Feature: Reusable
Size: As You Require Application: Pipeline
Thickness: 30-100mm Thermal Conductivity: 0.035W/M.K - 0.045W/M.K±0.005 (normal Temperature)
Moisture Rate: 5% Max
High Light:

valve insulation jackets

,

pipe insulation jacket

Energy-saving Removable Thermal Insulation Jacket For Valve And Pipe



Product Introduce



The insulation Cover is mainly used for the barrel heater on the injection molding machine, as well as the mold on the injection molding machine and the extruder. It can also be used for insulation of pipes, elbows, flanges, heat exchangers, and engine exhaust pipes. It is made of ceramic fiber and high temperature resistant silicon cloth. The sheath consists of three layers: an inner layer, an insulating layer and a protective layer. Operating temperature up to 260°C. It excels in insulation and cooling work environments.



Product performance



Product Name Thermal Insulation Jacket
Color grey
Base Fabric silicone coated fiberglass cloth
Coating silicone
Weave stain
Cloth thickness 0.43mm
Cloth Weight 430g/m2
Coated Fabric Weight 590g/m2
Coated Fabric Thickness 0.46mm
Temperature resistance -70℃~+260℃



Features



1. Insulation and heat preservation effect is good, heat insulation layer is made of heat-resistant fiber insulation blanket

2. Easy to disassemble, easy to install, easy to clean pipeline equipment, convenient maintenance.

3. Can be used repeatedly, long service life.

4. High strength, both soft and tough, easy to bend and bandage.

5. Can be customized according to the required insulation parts, processing non-standard products.

6. The product adaptability: suitable for different temperature range, different shapes of pipes and equipment.

7. Environmental protection, no pollution: no asbestos and any other harmful substances, completely harmless to people and the environment.

8. The product looks beautiful and clean, the surface can be scrubbed.

9. Improve the working environment and prevent burns.

10. Reduce the indoor temperature, easy to cool the air conditioner, improve environmental comfort.



Advantages



1. It can be quickly disassembled and can be used repeatedly (traditional insulation can only be used once).

2. It is suitable for pipes and equipment of different shapes, especially for "shaped parts". Even in the case of traditional insulation, detachable flexible insulation can also be done (because traditional insulation is "hard" The material is "machined and not easily bent".

3. Space adaptability is wide, and this insulation can also be used in a small space (traditional insulation may not be possible in small spaces sometimes).

4. Environmental adaptability: Some "corrosive" environments like chemical companies have advantages over traditional insulation. (Because the traditional insulation appearance is aluminum or iron is not resistant to corrosion).

5. Suitable for different temperature ranges.



Pictures

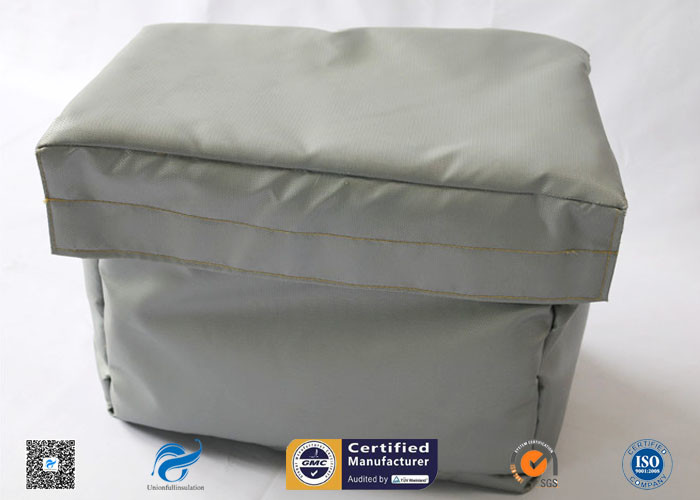

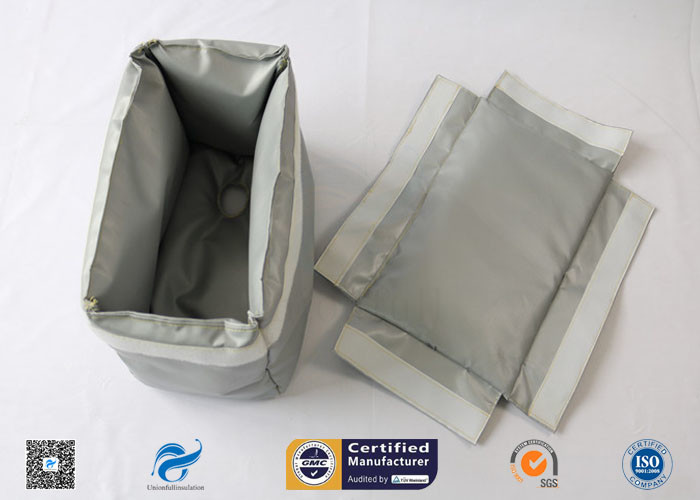

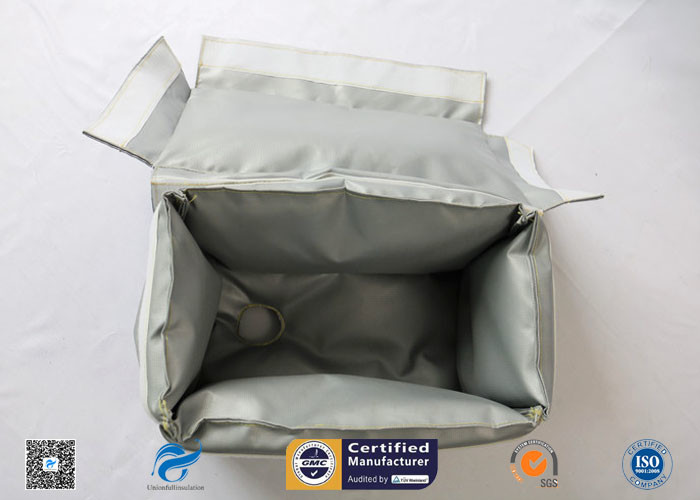

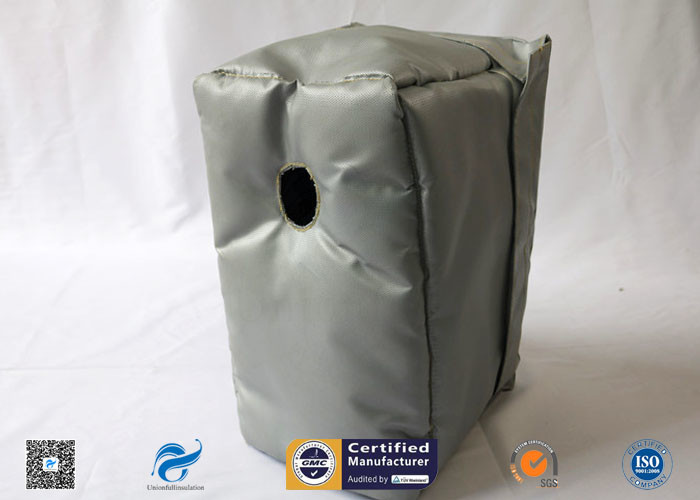

Energy Saving Removable Thermal Insulation Jacket For Valve And Pipe 0



Energy Saving Removable Thermal Insulation Jacket For Valve And Pipe 1
