Fire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate

China Fire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate supplier
Fire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate supplier Fire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate supplier Fire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate supplier Fire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate supplier Fire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate supplier

Large Image :  Fire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8732

Payment & Shipping Terms:

Minimum Order Quantity: 500m
Price: $2.3~$4
Packaging Details: One roll in woven bag
Delivery Time: 7~15days after payment received
Payment Terms: L/C, T/T, Western Union
Supply Ability: 350000 squar meter per week
Contact Now
Detailed Product Description
Surface Treatment: Aluminium Foil Coated Basic Fabric: E-glass Fiber
Thickness: 0.43mm Aluminium Thickness: 7/18/25 Micron
Weight: 430g/m2 Temperature: 300~550℃
Alkali Content: Free Weave: Stain

Fire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate



Aluminium Foil coated fiberglass fabric cloth mainly be used in automobile for pipe insulation, and also HVAC system, roofs, ceilings, walls, ducts and pipes, basements, water heater, crawl spaces, and garages in all types of residential, industrial, commercial and agricultural buildings. And it works well in areas with cool, warm, hot, and humid climates.



The aliminium foil insulation reflects up to 97% of heat in the direction of its source and its reflectivity is manintained even after years of usage.



Aluminum foil coating is best for static applications and temperatures up to 572°F / 300°C, while the basic glass fabric can be up to 1022°F/550℃





Properties:

1. Keeps warmth in during winter and cools in summer

2. Moisture barrier,water-proof, fire-retarding and anti-corrosion

3. Smooth surface & Good Reflective on the aluminum foil

4. Outstanding sealing function



Main Sepecification:



         Item Area Weight
(g/m2)
    Aluminium   Thickness Temperature℃      Weaving Tensile Strength

PCAL-8628



        200        7/18/25 μ       0.2mm     300-550        Plain 2025/1620

UPEAL-8732



        430        7/18/25 μ       0.43mm     300-550        Satin 6000/4500

UPEAL-8784



        880        7/18/25 μ       0.85mm     300-550        Satin 8000/6000





Data sheet:



Item



UPEAL-8732



Thread count



Warp 19.6±0.5 per cm
Weft 15±0.5 per cm



Tensile Strength





1600/2000 (N/5cm)



Weight



510g/m2



Thickness



0.43mm



Width



1000/1270/1550 mm



Coating



Aluminium Foil
Temperature

Fiberglass fabric ≤ 550℃

Aluminium Foil Laminate ≤ 300℃



Roll length



50m



Application:

  1. Used as the export equipment packing materials for moisture barrier, water-proof, fire-retarding and anti-corrosion.
  2. Used as the protective layer of super glass wool with excellent functions of fire-resistance, anti-corrosion, heat isolation and heat protection and sound absorption, sound-proof materials in construction.
  3. Used as the thermal insulation material on Roof,wall,floor,tank,vessel,air conditioner,tank,heat supply pipes or construction materials for the purpose of fire-retarding, anti-corrosion, heat protection and sound aborption.
  4. Packing chemical equipments such as oil and steam transportation pipeline.
  5. Heat sealing aluminum foil facing also used as a water vapor barrier in air condition ductworks and Hot & cold room.

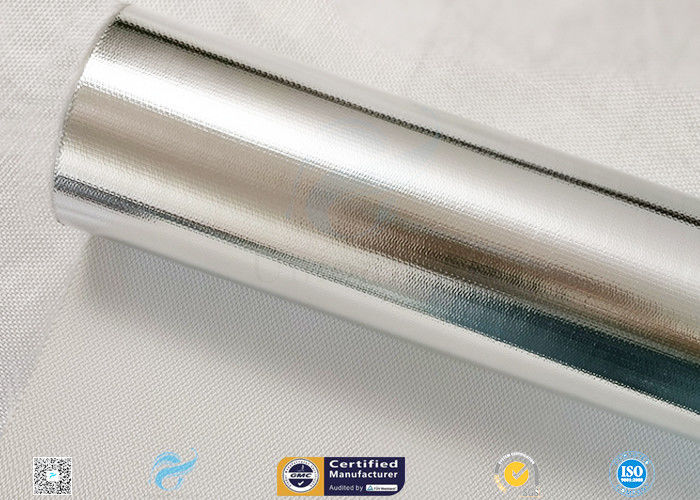

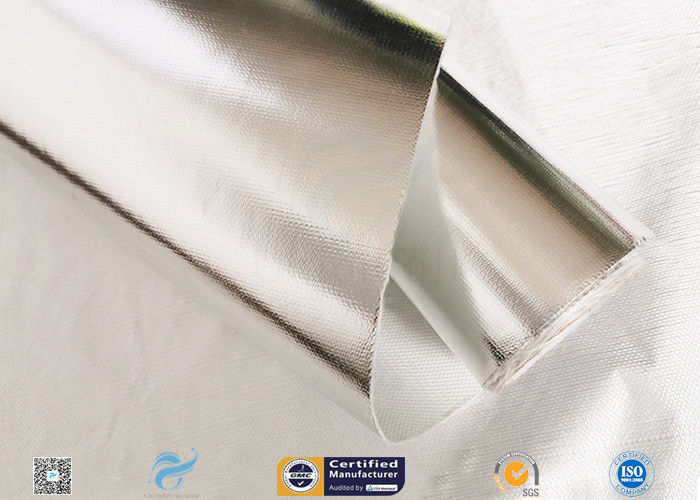

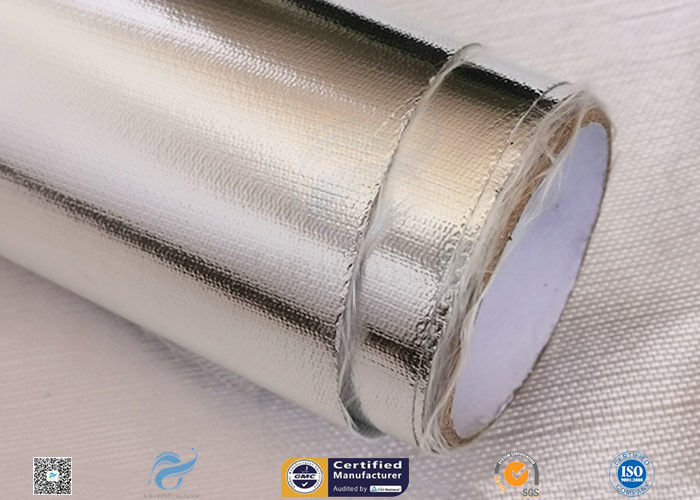

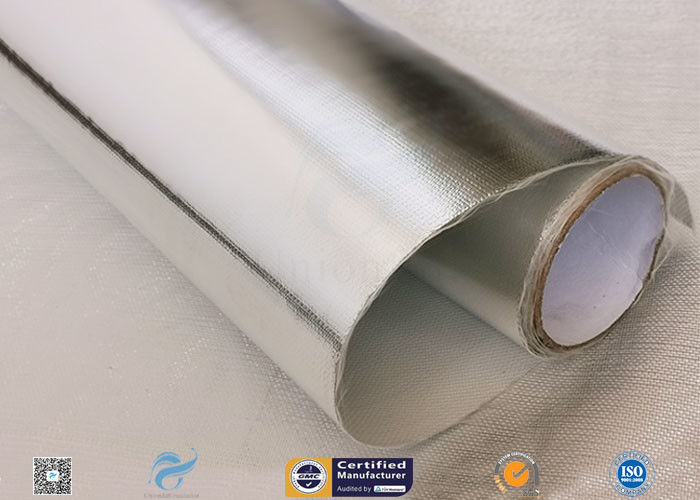

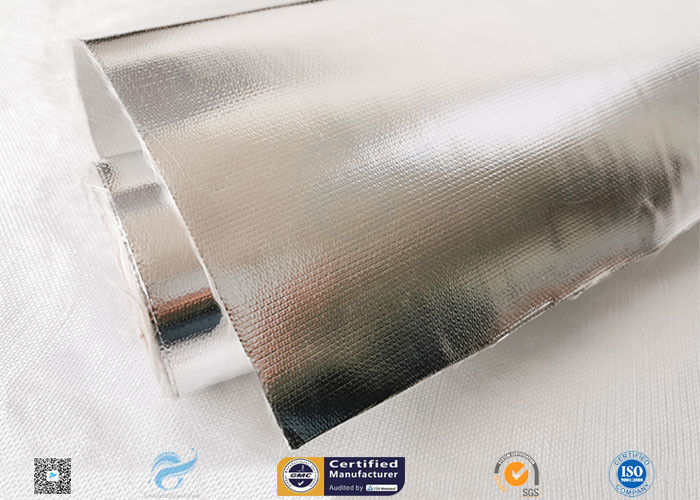

Pictures:

Fire Resistant Waterproof Silver Aluminium Foil Fiberglass LaminateFire Resistant Waterproof Silver Aluminium Foil Fiberglass Laminate
