High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric

China High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric supplier
High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric supplier High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric supplier High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric supplier High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric supplier

Large Image :  High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 300 Meters
Price: $3.15--3.5/M2
Packaging Details: 50 meters or 50 yards per roll
Delivery Time: 2 Weeks After Receiving The Payment
Payment Terms: L/C, Western Union, T/T, D/A, D/P
Supply Ability: 100,000 square meters per day
Contact Now
Detailed Product Description
Material: Silicone Alkali Content: Alkali Free
Yarn Type: E-Glass Color: Blue
Thickness: 0.45mm Weight: 510g/m2
Standing Temperature: -70℃ To +260℃ Roll Length: 50m

High Quality 18oz Blue Silicone Coated E-Glass Fiberglass



Introduce



Silicone coated fabric flexible connector has the advantage of energy saving, air duct using a variety of high-performance non-metallic organic materials and inorganic materials with several kinds of metal additives, the fire-resistant grade is A1 level (non-combustible), which is acid and alkali resistance, pressure resistance, anti-aging, flexibility, etc. It’s used for flexible connection of air conditioning, anti-corrosion, smoke control, radiation prevention, and purification ventilation systems.



Data



Weight 510gsm
Thickness 0.45mm
Width 1m/1.2m/1.5m
Length 50m
Weave Type Satin
Color Blue
Working temperature -70℃ ~ +260℃
Loss on ignition(%) 0.01
Moisture Content(<%) 0.03



Properties



1. Temperature resistant (up to 260 °C)

2. Excellent release properties

3. Superior abrasion resistance

4. Good chemical resistance

5. Superior dielectric properties





Applications



Electric insulation: Silicon coated fiberglass fabric features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.

Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.

Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.

​Others: Apart from above application, silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.



Pictures

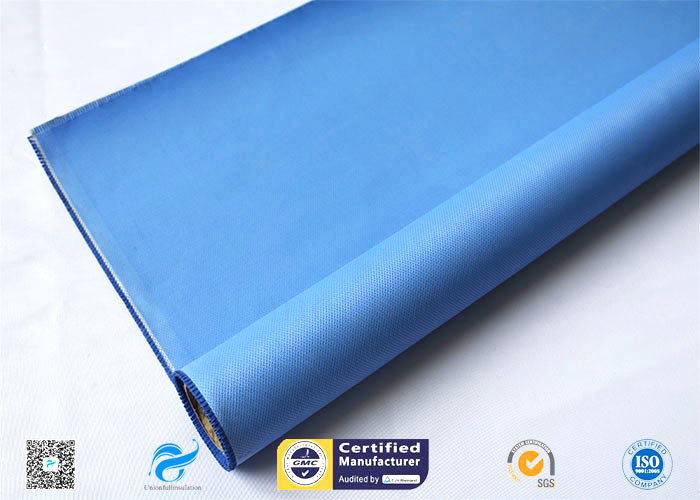

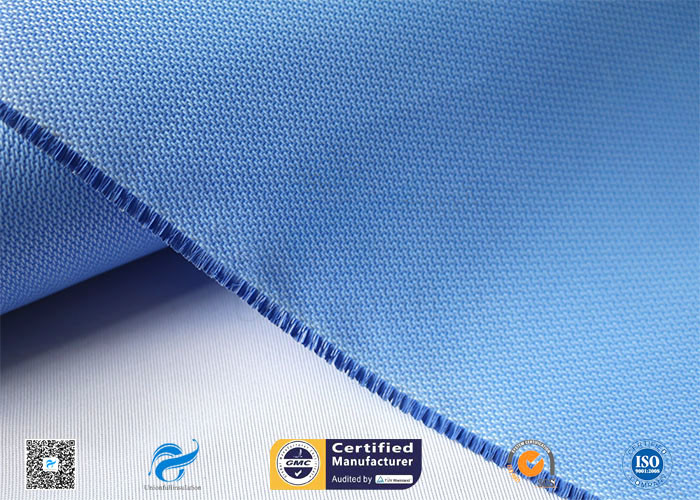

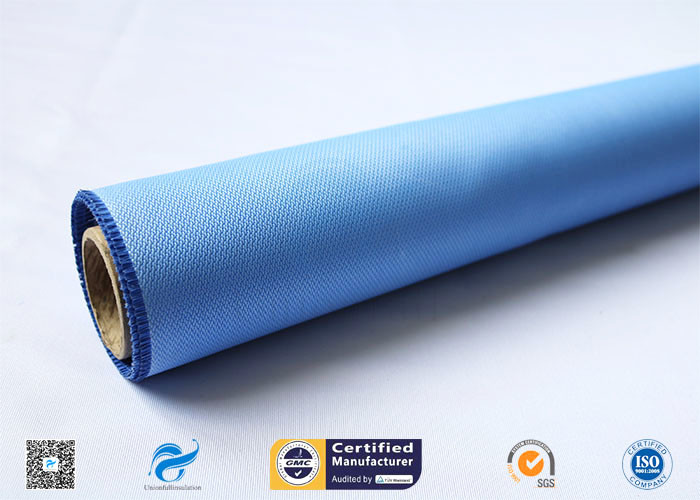

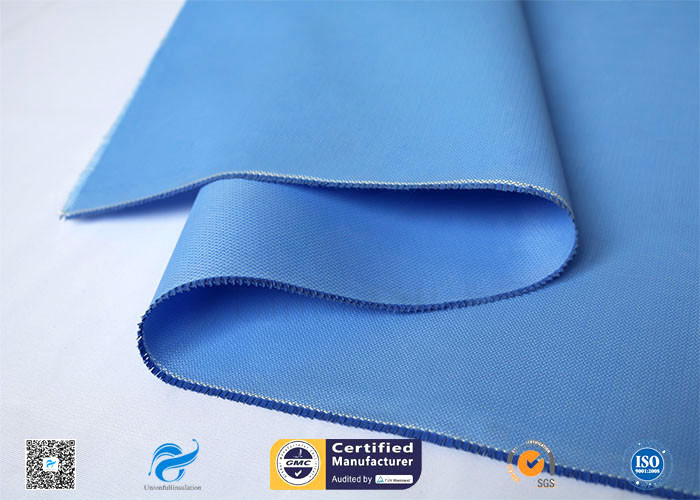

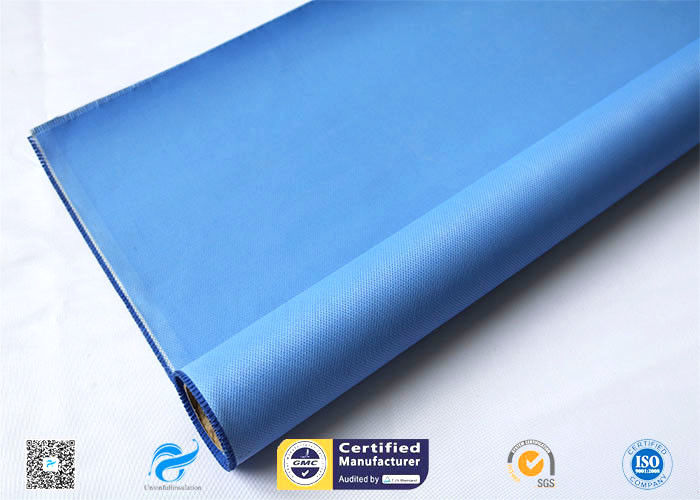

High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric



High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric
