530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance

530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance
530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,TUV
Model Number: UPSC-8732D100
Minimum Order Quantity: 100Meters
Price: $2.35--3.45/M2
Packaging Details: 50 yards per roll with poly bag
Delivery Time: 25 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 square meters per day
Get Best Price Contact Now
Description: Coated Fiberglass Cloth Color: Yellow
Yarn Type: C-Glass Standing Temperature: -70-260Degree
Roll Length: 50m Weight: 530gsm
Alkali Content: Medium Good Features: High Temperature Resistance
Highlight:

silicone coated glass cloth

,

silicone coated fiberglass cloth

530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance



Introduce



Silicone coated fiberglass fabric is constructed from a fiberglass base cloth and impregnated or coated one side or both sides with a specially compounded silicone rubber. Due to silicone rubber physiological inert, not only increase the strength, thermal insulation, fireproof , insulating properties, but also has the ozone resistance, oxygen aging, light aging, climate aging , oil resistance and other properties.



Data



Name 530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance
Material C-glass
Type of Weave Satin
Warp Density 20 Ends/CM
Filling Density 11 Ends/CM
Width 1m,1.2m,1.5m
Thickness 0.45mm
Mass Per Unit Area 530GSM
Roll Length 50M



Properties



Service temperature: -70℃ -260℃

Ozone resistance,weathering aging resistance ,can be used outdoor for many years.

Excellent insulation,dielectric constant from 3 to 3.2,weak voltage from 20~50 kv/mm



Main applications



Fabric expansion joints

Insulation jackets, mattress and pad

Fire doors & Fire curtains

Welding/fire blankets

Pipeline ductile conjunction and non-metal compensating facility

High temperature protection and electric insulation.



Pictures

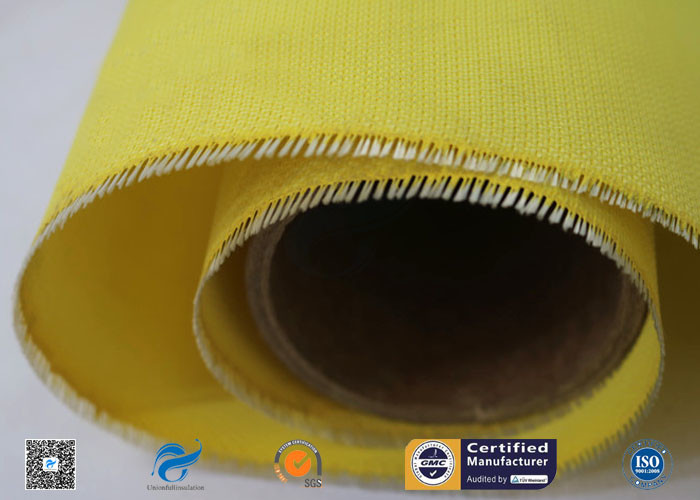

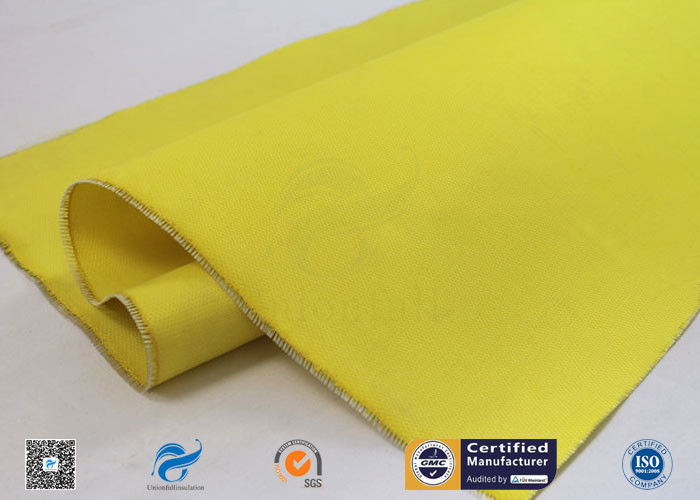

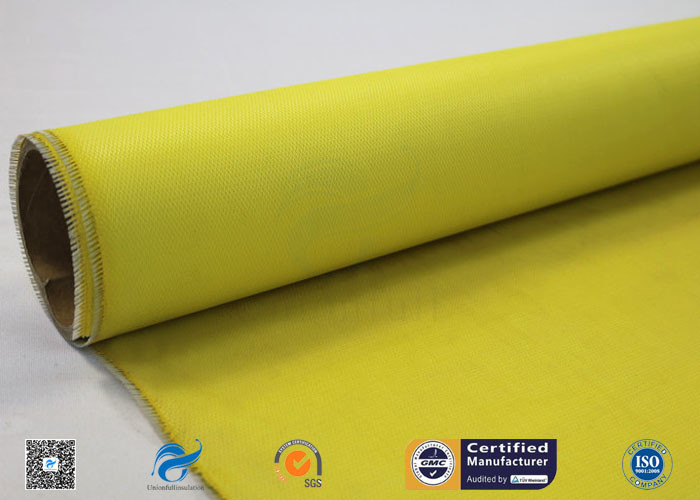

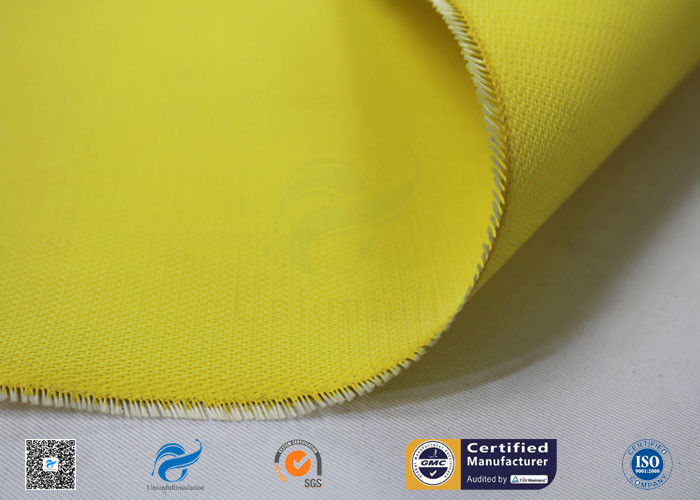

530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 0



530g Yellow Silicone Coated Fiberglass Fabric With High Temperature Resistance 1



Tag:

silicone coated fiberglass cloth,

silicone coated glass cloth,

silicone coated glass fabric
