0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material

China 0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material supplier
0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material supplier 0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material supplier 0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material supplier 0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material supplier

Large Image :  0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D160

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.3~3.4/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 2week after receiving the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000m2/month
Contact Now
Detailed Product Description
Type: Silicone Coated Fiberglass Fabric,insulation Material Color: Black
Basic Weight: 430g/m2 Coating Weight: 160g
Coating Sides: 2 Sides Yarn Type: E-Glass
Thickness: 0.45mm Roll Length: 50m

0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material​



Introduce



Silicone coated fiberglass fabric. With a high temperature, fire retardant, insulation, corrosion resistance, anti-aging and other features. Silicone coated fiberglass fabric is widely used in electrical insulation, non-metallic compensator, flexible connectivity, and as a fire blanket, fire retardant curtain temperature materials, has also been used in building sealed, high-temperature corrosion conveyor belt and other fields.



Data



Product silicone coated fiberglass fabric
Width 1m,1.2m,1.5m
Thickness 0.45mm
Total Weight 590gsm
Coating Surface double coated
Color black
Package 20 rolls one pallet
Temperature -70℃~+260℃





Properties



1.used in the temperature from -70℃ to 260℃

2.resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years

3.high insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM

4.good flexibility and high surface friction

5.chemical corrosion resistance



Applications



Commonly used in diaphragms and gaskets. It can be used as a flange gasket where bolt or compression loads are so high that non reinforced rubber would squeeze or extrude out between the flanges.

Typical applications include meters, control devices, welding curtains, regulators, pumps, and diaphragms. Reinforced silicone diaphragms usually contain one or more plies of reinforcing fabric for added strength. We carry single, double and triple ply silicone rubber.



Pictures

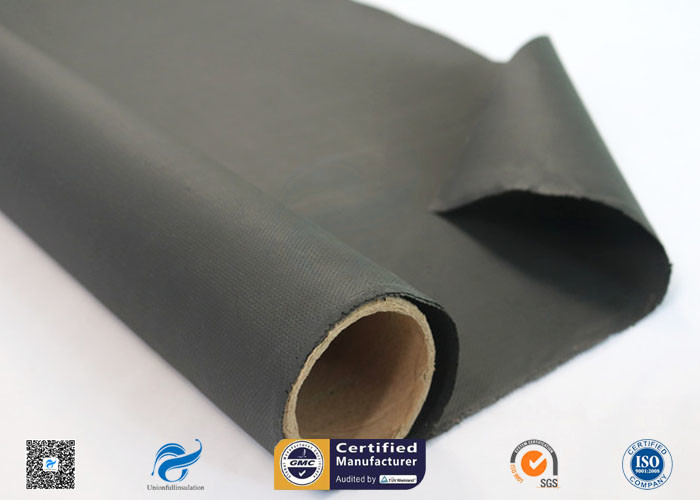

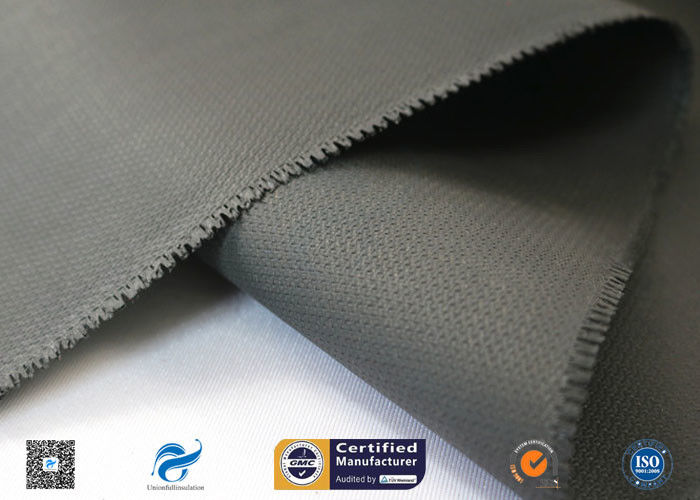

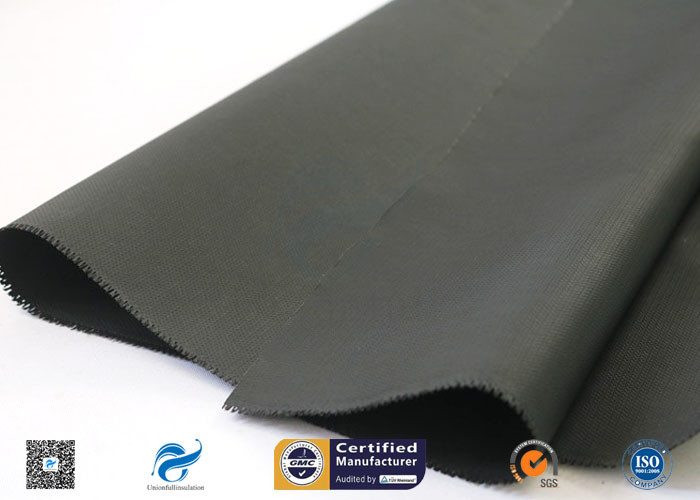

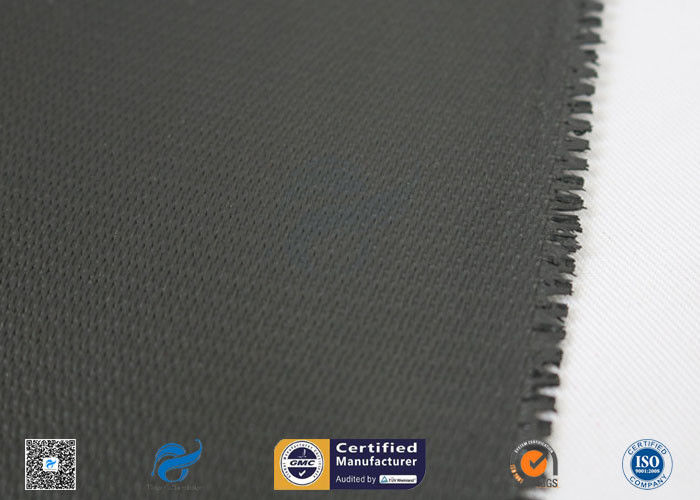

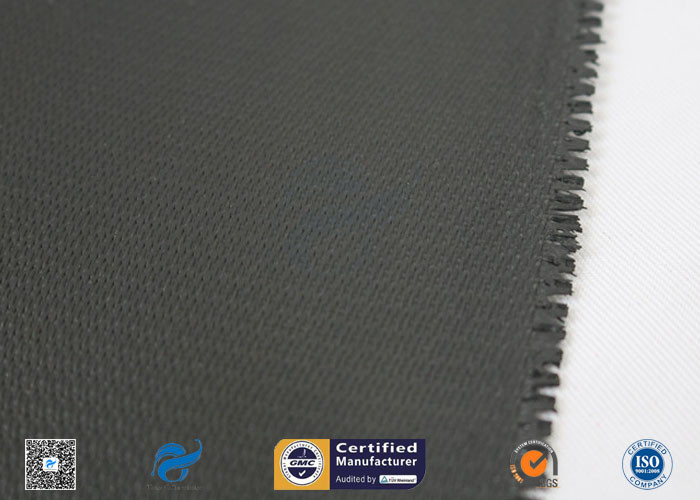

0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material



0.45mm High Temperature Black Silicone Coated Fiberglass Cloth Insulation Material
