Two Side Silicone Coated Glass Fabric / Silicone Rubber Coated Fiberglass Fabric

China Two Side Silicone Coated Glass Fabric / Silicone Rubber Coated Fiberglass Fabric supplier
Two Side Silicone Coated Glass Fabric / Silicone Rubber Coated Fiberglass Fabric supplier Two Side Silicone Coated Glass Fabric / Silicone Rubber Coated Fiberglass Fabric supplier Two Side Silicone Coated Glass Fabric / Silicone Rubber Coated Fiberglass Fabric supplier Two Side Silicone Coated Glass Fabric / Silicone Rubber Coated Fiberglass Fabric supplier

Large Image :  Two Side Silicone Coated Glass Fabric / Silicone Rubber Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,TUV
Model Number: UPSE-8732D160

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.85-3.45/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Coating: Liquid Silicone Color: Silver Grey
Alkali Content: Alkali Free Width: 1.5m
Thickness: 0.46mm Weight: 590g/m2
Standing Temperature: -50℃~+260℃

3732 E-Glass Two Side Silver Grey Silicone Coated Fiberglass Fabric



Introduce



Silicone coated fiberglass cloth has good resistance to extreme temperatures, operate temp. from -50°C to +260°C.
It also has excellent weatherproof, water repellent, good chemical resistance to acids and lye, good mechanical properties for make-up.
We provide 1 side and 2 sides silicone coated fiberglass cloth with different coating weight, colors and widths for difference applications.



Data



Item Technical Requirement
Thickness of raw fabric(mm) 0.43±0.02
Width(mm) 1.0m,1.2m,1.5m
Length(m/roll) 50m, 100m
Area Weight of raw fabric(g/m2) 430
Warp/weft yarn density(ends/cm) 18x13±1
Weaving structure twill
Color of coating gray
Area weight of silicon rubber coated (g/m2) 130
Total area weight after coated (g/m2) 560
Maximum heat resistance for base fiberglass fabric(ºC) 550ºC
Maximum heat resistance for the silicon rubber coating(ºC) 260ºC



Main Features



-Excellent release properties
-High strength and tear resistance
-High dielectric strength
-High resistance to wear and flexing
-High chemical resistance, impervious to mild alkalies, non-oxidizing acids, most salts, mineral and lubricating oils, air, moisture and sunlight
-Operating temperature range from -50°C to +260°C
-Non-toxic odorless and tasteless



Applications


1. Insulation jackets, mattress and pad

2. Fabric expansion joints
3. Fabric ductwork connector
4. Fire doors & Fire curtains
5. Welding/fire blankets
6. Other fire control systems



Pictures

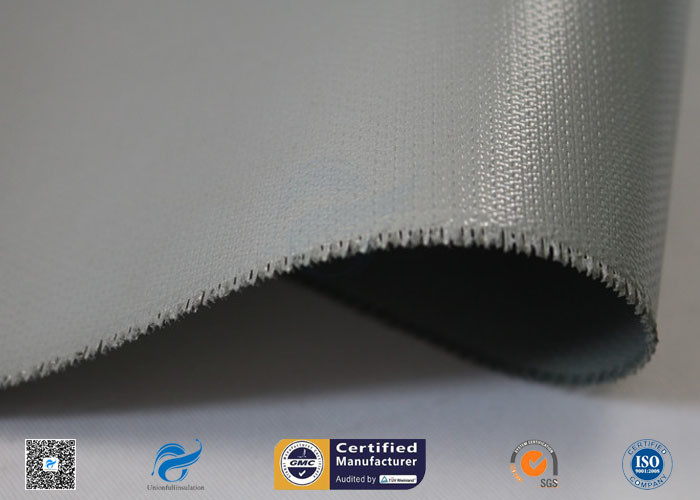

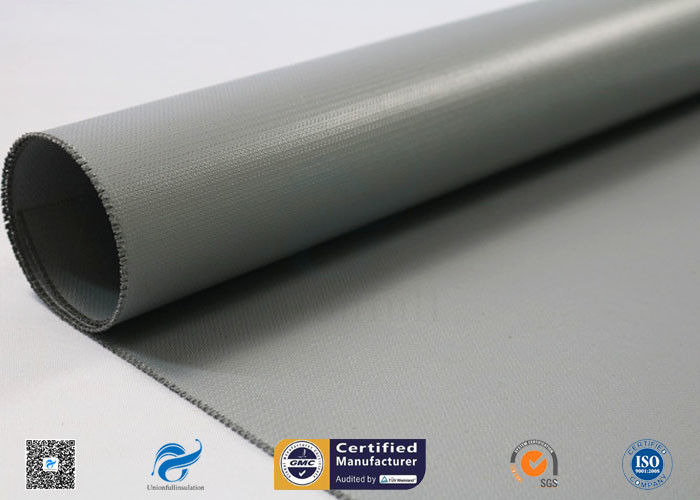

Two Side Silicone Coated Glass Fabric / Silicone Rubber Coated Fiberglass Fabric

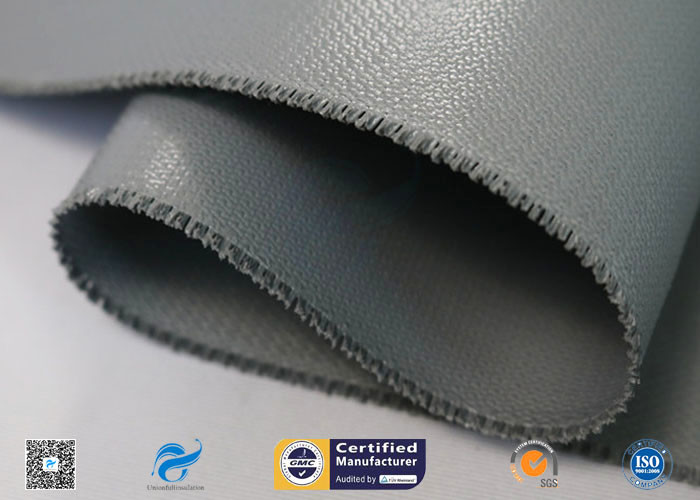

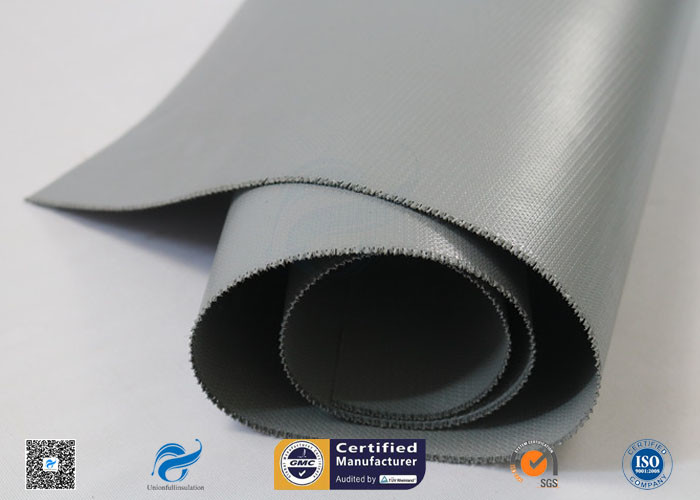

Two Side Silicone Coated Glass Fabric / Silicone Rubber Coated Fiberglass Fabric
