One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric

One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric
One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,TUV
Model Number: UPSE-8784S100
Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 square meters per day
Get Best Price Contact Now
Application: Thermal Insulation Covers/ Welding Insulation/ Fire Curtains Surface Treatment: Silicon Coated
Weave Type: Twill Woven Fiberglass Type: E-Glass
Color: Grey Thickness: 0.85mm
Total Weight: 950g/m2 Coating Weight: 100g/m2
Highlight:

silicone coated fiberglass cloth

,

silicone coated glass fabric

3784 One Side Gray Silicone Coated Fiberglass Fabric 100g E-Glass



Introduce



Fiberglass base fabric that has been impregnated with our specially formulated silicone rubber compound. This silicone coating adds extended life, while providing greater oil and water resistance than uncoated fabrics as well as low smoke and flame retardation.



Data



Item Technical Requirement
Thickness of raw fabric(mm) 0.85
Width(mm) 1.0m,1.2m,1.5m
Length(m/roll) 50m
Area Weight of raw fabric(g/m2) 850
Warp/weft yarn density(ends/cm) 18x13±1
Weaving structure twill
Color of coating gray
Area weight of silicon rubber coated(g/m2) 100
Total area weight after coated (g/m2) 950
Maximum heat resistance for base fiberglass fabric(ºC) 550ºC
Maximum heat resistance for the silicon rubber coating(ºC) 260ºC
Tensile strength (N/5cm) warp 2600N/5CM
weft 2400N/5CM

Main Features

-Excellent release properties
-High strength and tear resistance
-High dielectric strength
-High resistance to wear and flexing
-High chemical resistance, impervious to mild alkalies, non-oxidizing acids, most salts, mineral and lubricating oils, air, moisture and sunlight
-Operating temperature range from -50°C to +260°C
-Non-toxic odorless and tasteless



Pictures

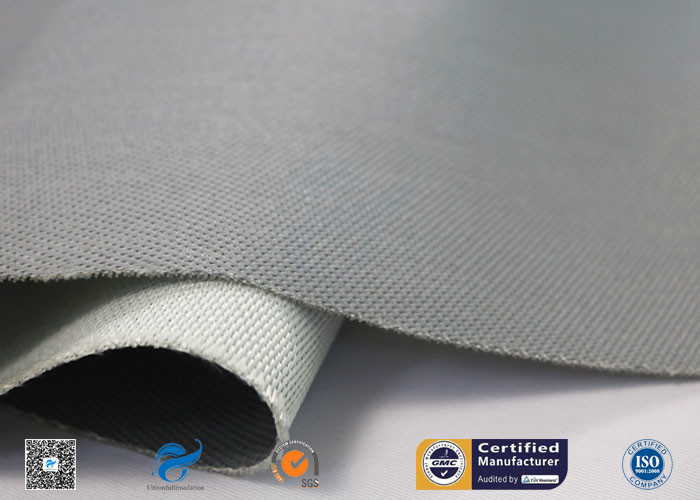

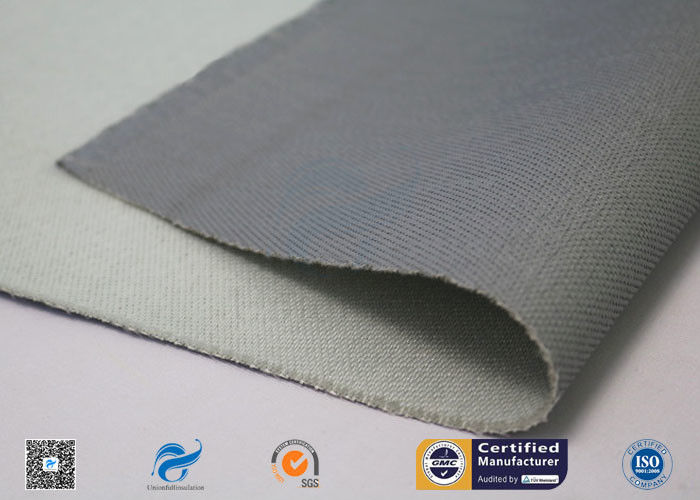

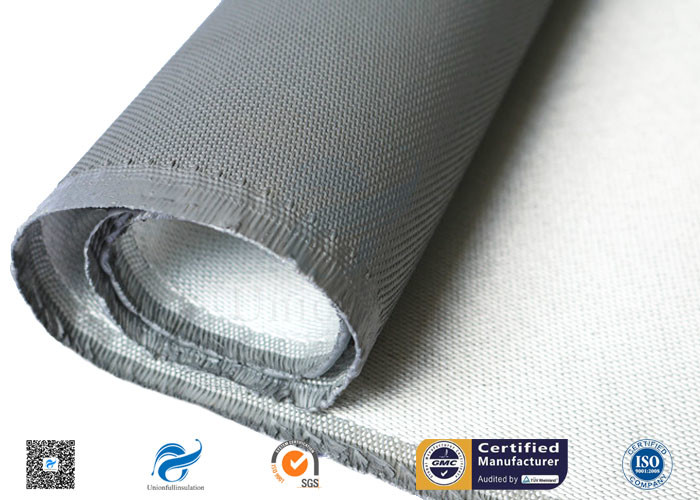

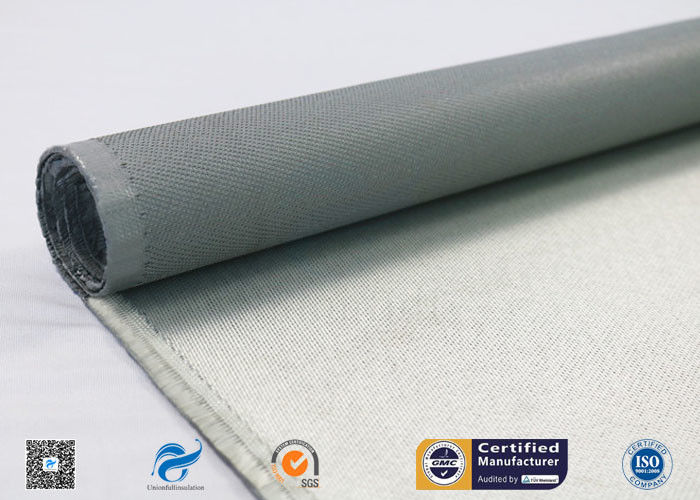

One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric 0



One Side Silicone Coated Glass Cloth , 100g E Glass Silicone Coated Polyester Fabric 1
