3784 Silicone Coated Fiberglass Fabric Fireproof Cloth With 150g One Side Coating

China 3784 Silicone Coated Fiberglass Fabric Fireproof Cloth With 150g One Side Coating supplier
3784 Silicone Coated Fiberglass Fabric Fireproof Cloth With 150g One Side Coating supplier 3784 Silicone Coated Fiberglass Fabric Fireproof Cloth With 150g One Side Coating supplier 3784 Silicone Coated Fiberglass Fabric Fireproof Cloth With 150g One Side Coating supplier 3784 Silicone Coated Fiberglass Fabric Fireproof Cloth With 150g One Side Coating supplier

Large Image :  3784 Silicone Coated Fiberglass Fabric Fireproof Cloth With 150g One Side Coating

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,TUV
Model Number: UPSE-8784S150

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Surface Treatment: Silicon Coated Weave Type: Twill Woven
Coating Side: One Side Yarn Type: E-Glass
Weight: 1000g/m2 Alkali Content: Alkali Free
Strength: 2600/2400N/50mm Good Features: High Temperature Resistance

3784 Silicone Coated Fiberglass Fabric Fireproof Cloth with 150g One Side Coating



Introduce



Silicone coated fiberglass cloth is made of glass fiber cloth as base cloth and produced by coating or calendering. It is made of glass fiber cloth with high temperature resistance, corrosion resistance and high strength and is calendered or impregnated by organic silicon rubber. It is a new composite material product with high performance and multiple purposes.



Data



Silicone Coated Fiberglass Fabric
Base Cloth 3784 fiberglass cloth
Width 1m,1.2m,1.5m
Length 50m
Thickness 0.8mm
Color Gray
Coating Solid silicone
L.O.I <0.5%
Temperature -70°C - 260°C



Main Features



1. Excellent release properties
2. High strength and tear resistance
3. High dielectric strength
4. High resistance to wear and flexing
5. High chemical resistance, impervious to mild alkalies, non-oxidizing acids, most salts, mineral and lubricating oils, air, moisture and sunlight
6. Operating temperature range from -70°C to +260°C
7. Non-toxic odorless and tasteless



Applications

1. electrical insulation: silicon rubber coated glass fabrics can withstand high levels of electrical voltage. Ti is suitable for making insulation blankets and sleeves
2. Non-metallic compensator: it is one of the most important components in the production of expansion joints and flexible compensators for petrochemical. Pharmaceutical cements and industrial ducts and hot gasses pipelines or funnels these compensators are fundamental in the construction of expandable and contracting metal ducts .good flexible ,elasticity ,anti-corrosion and long life will make silicone coated fabrics the ideal membrane for these chemical processes
3. Anti-corrosion sector: it is excellent when used as an inner or out anti-corrosion layer because of its resistant to high temperature ,chemical attacks and extraordinary strength
4. Silicone rubber coated glass fabrics also could be used as sealing materials in areas where corrosion could occur,as packing conveyor belts and predominantly as entrance and exit heat curtains for tunnel oven



Pictures

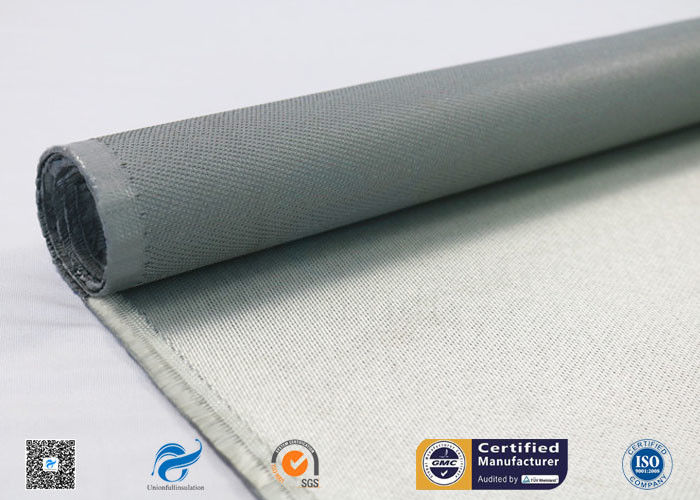

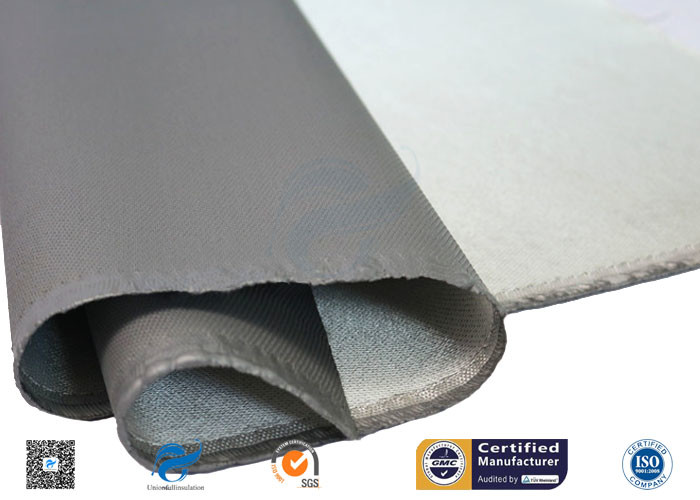

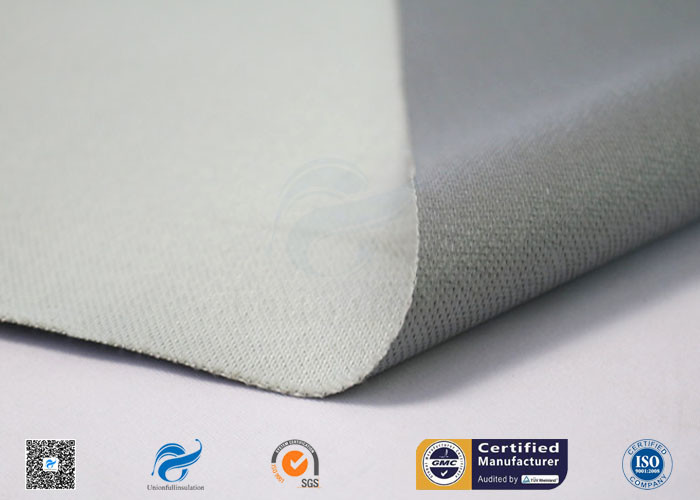

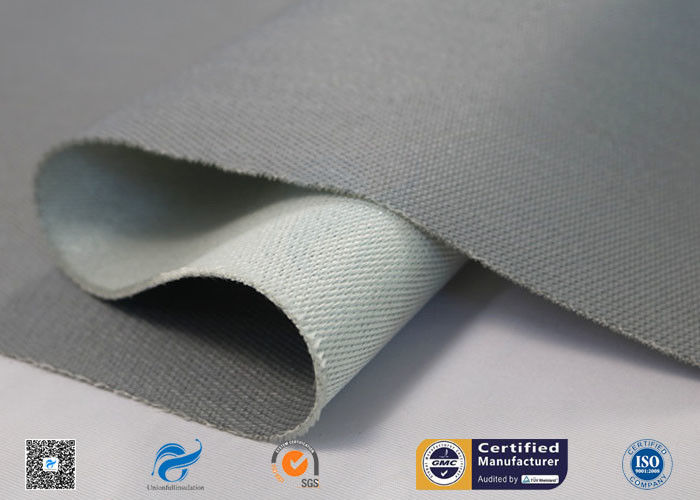

3784 Silicone Coated Fiberglass Fabric Fireproof Cloth With 150g One Side Coating



3784 Silicone Coated Fiberglass Fabric Fireproof Cloth With 150g One Side Coating
