Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008,SGS,TUV |
Model Number: | UPSE-8732S100 |
Minimum Order Quantity: | 500 Meters |
Price: | $2.5-3.5/ Square Meter |
Packaging Details: | 50 meters per roll with poly bag |
Delivery Time: | 15 Working Days After Receiving The Payment |
Payment Terms: | L/C,, D/A, D/P, T/T, Western Union |
Supply Ability: | 50000 square meters per day |
Model NO.: | UPSE-8732S100 | Good Features: | High Temperature Resistance |
---|---|---|---|
Color: | Black | Coating: | One Side |
Weave Type: | Satin | Thickness: | 0.45mm |
Alkali Content: | Alkali Free | Standing Temperature: | -70-260Degree |
High Light: | silicone coated fiberglass cloth,silicone coated glass fabric |

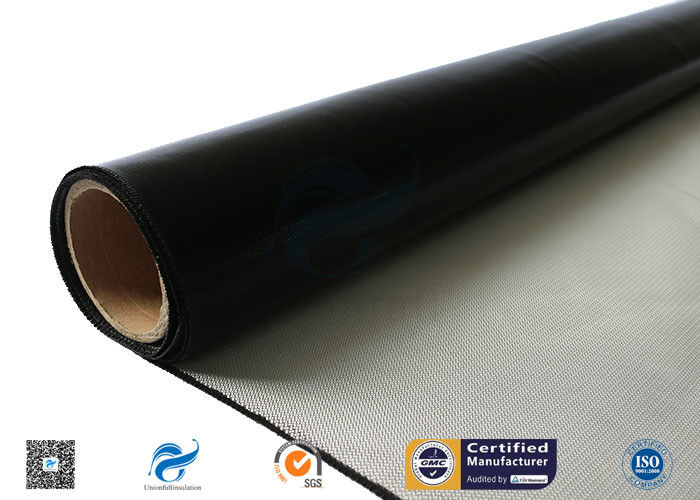

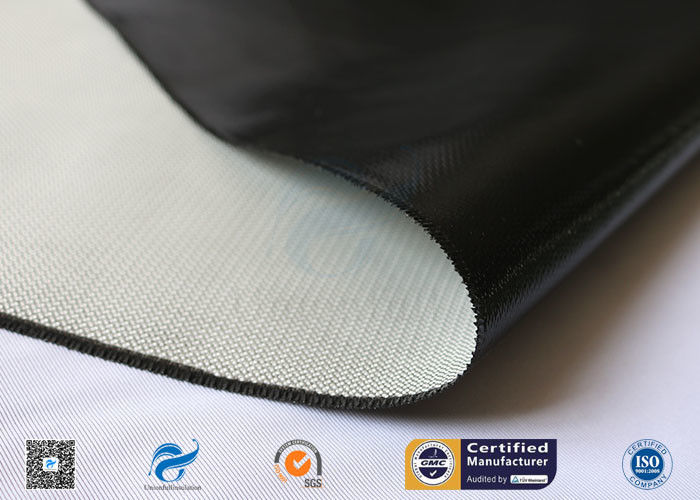

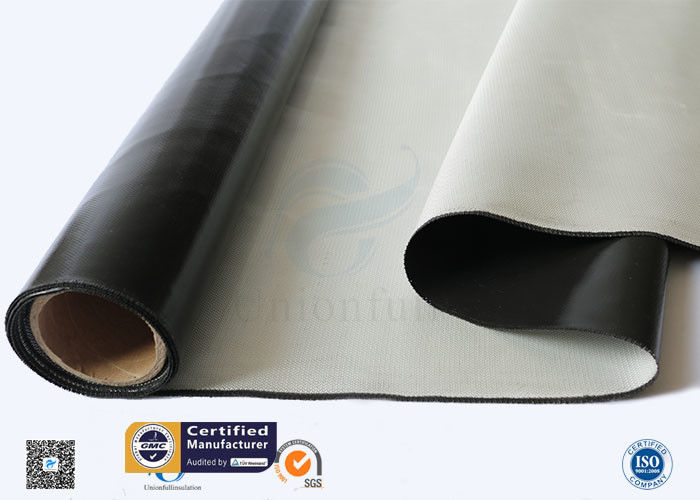

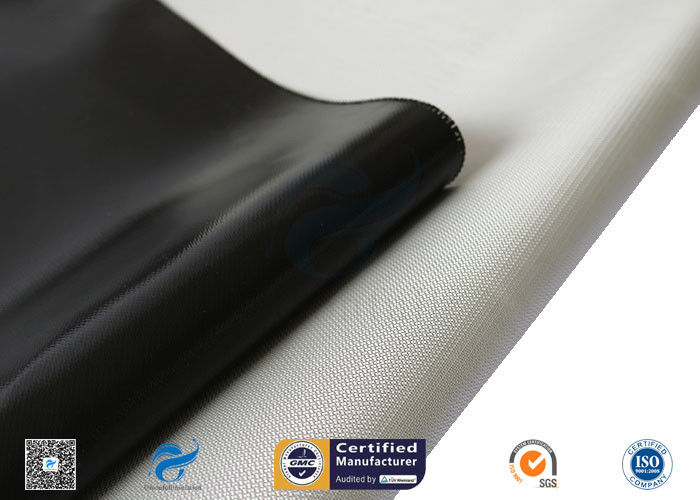

One Side Black Heat Protection Silicon Coated Fiberglass Fabric Insulation Fireproof
Introduce
silicone coated fiberglass cloth is made with high temperature resistant,
non-toxic fire proof silicone rubber and heat/flame resistant thermal insulating fiberglass cloth.
Unionfull Group Ltd silicone coated fiberglass cloth has good resistance to extreme temperatures, with operating temp ranging from -50°C to +260°C.
Data
Weight | 530g/m2 |
Thickness | 0.45 mm |
Width | 1000mm 1200mm 1500mm |
Coated | Silicone 1 sides |
Color | Black |
Fire resistance | Good |
Working temperature | Basic fabric 550 ºC, Silicone coating 260 ºC. |
Pattern | Satin |
Yarn warp | EC9 68 1*2 |
Yarn weft | EC9 68 1*2 |
Construction warp | 18±1 ends/cm |
Construction weft | 12.6±1 ends/cm |
Fiberglass | E -Glass |
Features
1. Incombustible
2. High temperature resistant
3. No toxic gas discharge
4. Good insulation
5. Without melting or dripping
6. High strength
7. No thermal shrinkage phenomenon
Advantages
1. Good certified fire resistance.
2. Color black.
3. Easy to be applied, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
Main Applications
1. Can be used as a fire screen.
2. Electrical insulation, silicone cloth with high electric insulation level, can withstand the high voltage load, can be made into cloth, insulation casing and other products.
3. Nonmetallic compensator, silicone cloth used as flexible connecting device of pipeline, it can solve the heat bilges cold shrink to the destruction of the pipe, silicone cloth with high temperature resistance, corrosion resistance, ageing resistance, good elasticity and flexibility, can be widely used in petroleum, chemical, cement, energy and other fields.
4. Anticorrosive aspects: silicone rubber coated glass fiber cloth, can be used as a pipeline, the internal and external anticorrosive coating of saving, excellent anticorrosion performance, high strength, is a kind of ideal anticorrosion material.
5. And other areas:silicone rubber coated glass fiber membrane structure materials can be applied to building sealing materials,
high temperature anticorrosion conveyor belt, packaging materials, etc.
6. like Ship building, large steel structure and electrical repairs of spot welding, gas cutting of protective equipment, chemical, metallurgical, theaters, war industry and so on ventilation and fire prevention and protection products.
