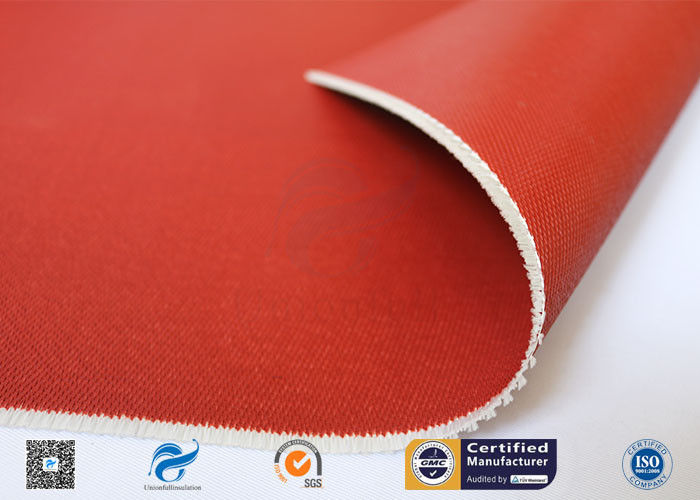

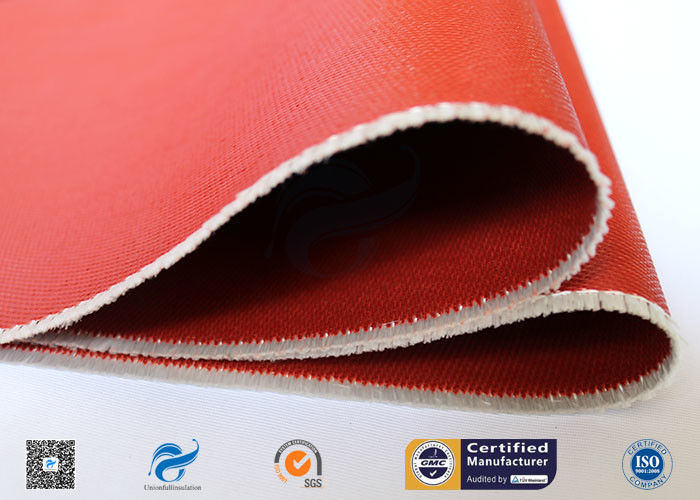

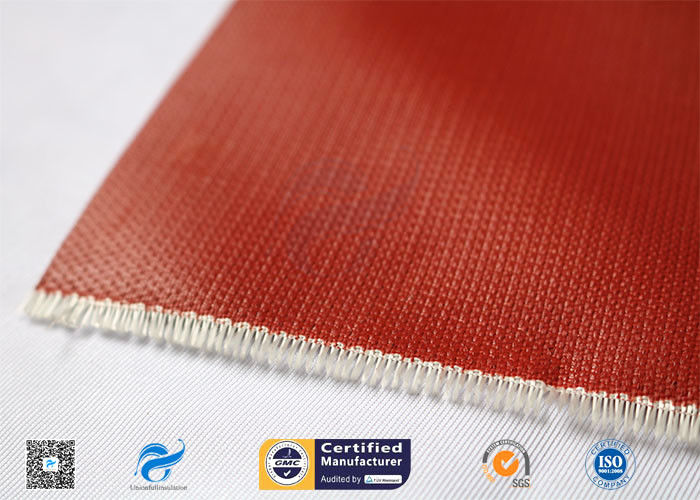

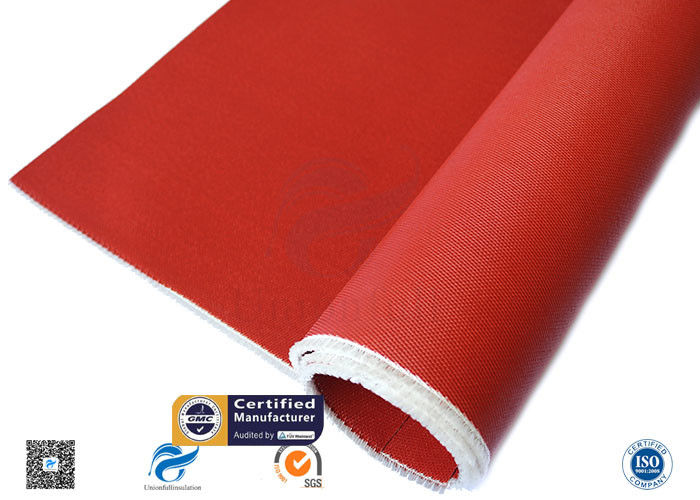

3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover

3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover
3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,TUV
Model Number: UPSC-8784
Minimum Order Quantity: 1000 Meters
Price: $4.6--4.9/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 20 Working Days After Receiving The Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 m2 per day
Get Best Price Contact Now
Yarn Type: C-Glass Weave Type: Satin
Width: 1000mm Roll Length: 50 Meters
Weight: 1000g/m2 Thickness: 0.85mm
Color: Red Coating: Red Color Silicone Rubber On 2 Sides
Highlight:

silicone coated glass cloth

,

silicone coated fiberglass cloth

3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover



Introduce



Heat insulation material thermal insulation silicone fabric is a kind of high performance and multifunction composite materials, it's widely used in Aerospace, Chemical, Petroleum, Large Power Generation Equipment, Machinery, Metallurgy, Electrical Insulation, Building, Transportation and other fields.



Data



Weight 1000g/m2
Thickness 0.85 mm
Width 1m
Coated Silicone 2 sides
Color Red
Fire resistance Good
Working temperature Basic fabric 550 ºC, Silicone coating 260 ºC.
Pattern Satin
Yarn warp EC9 68 1*2
Yarn weft EC9 68 1*2
Construction warp 18±1 ends/cm
Construction weft 12.6±1 ends/cm
Fiberglass C -Glass



Features



1. Excellent heat and cold resistance (long-term working temperature from -70 to 260℃)

2. Good aging resistance

3. High strength

4. Chemical acid and alkali resistant



Main Applications



1. Heat/electrical insulation jacket

2. Laminated mat

3. Flexible duct connector

4. Hot air blower

5. Flexible duct

6. Non-metal compensator or Fabric expansion joints

7. Fireproof curtain & blanket

8. Welding blanket

9. Construction electrical protection cover

10. Other fire-control systems






3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover 0
