Moisture Resistant Aluminium Foil Silver Coated Fabric 300℃ Industry Using

Basic Information

Place of Origin:	China
Brand Name:	Unionfull
Certification:	ISO9001:2008, SGS;TUV
Model Number:	UPEAL-8732

Minimum Order Quantity:	500m
Price:	$2.3~$4
Packaging Details:	One roll in woven bag
Delivery Time:	7~15days after payment received
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	350000 squar meter per week

Get Best Price Contact Now

Surface Treatment:	Aluminium Foil Coated	Basic Fabric:	Fiberglass Fabric
Thickness:	0.43mm	Aluminium Thickness:	7/18/25 Micron
Weight:	430g/m2	Temperature:	300~550℃
Alkali Content:	Free	Yarn Type:	E-glass
Roll Length:	50m
Highlight:	silver plated fabric , carbon fiber fabric

Moisture Resistant 300℃ Industry Using Aluminium Foil Coated Fiberglass Fabric

Aluminum foil fiberglass composite fabric reflects 95% or more of the radiant heat that contacts its surface. Constructed from a high-temperature base fiberglass which is then coated with aluminum foil or aluminum film.

It is mainly used as the thermal insulating materials of steam heating pipelines, sound -proof materials in construction and protective layer of super glass wool with excellent functions of fire -resistant, anti-corrosion, heat isolation and sound absorbability.

Properties:

1. Light and heat reflectivity

2. Smooth surface

3. Anti-corrosion

4. Waterproof

5. Tear resistance

Main Sepecification:

Item	Area Weight (g/m²)	Tensile Strength	Thickness(mm)	Temperature℃	Weaving
PCAL-8628	200	2025/1620	0.2	300-550	Plain
UPCAL-8732	420	6000/4500	0.43	300-550	Satin
UPEAL-8732	430	6000/4500	0.43	300-550	Satin
UPCAL-8784	880	8000/6000	0.85	300-550	Satin

Data sheet:

Item		UPEAL-8732
Thread count	Warp	19.6±0.5 per cm	51.7 ±1.3 per inch
	Weft	15±0.5 per cm	39.5 ±1.3 per inch
Breaking Strength	Warp	2000 N/5cm	222 lbs/inch
	Weft	1600 N/5cm	178 lbs/inch
Weight		510g/m2	15 oz/yd2
Thickness		0.43mm	0.018 inch
Width		0~1550mm	0~61 inch
Coating		Aluminium Foil
Weave		Satin
Working Temperature		Fiberglass is 550℃, while mucilage is 300℃

Application:

• High temperature insulation
• Energy efficient insulation
• Removable covers and blankets
• Pipe insulation
• Building materials
• Petrochemical industries

Pictures:

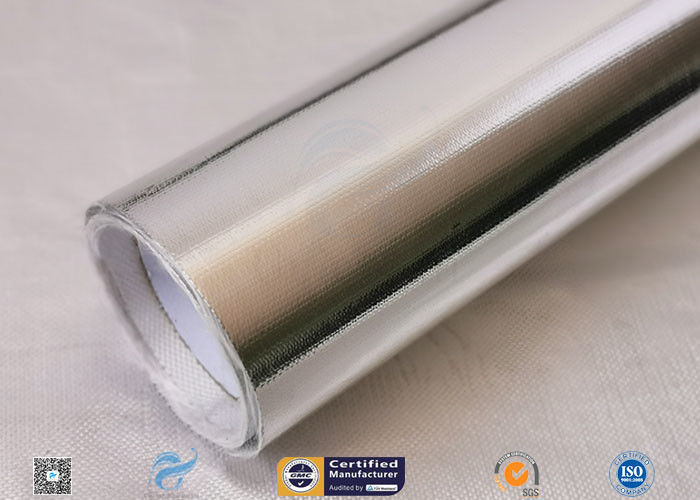

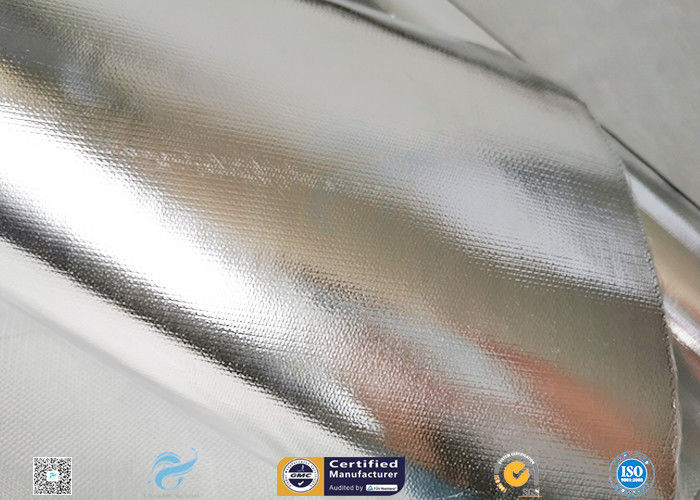

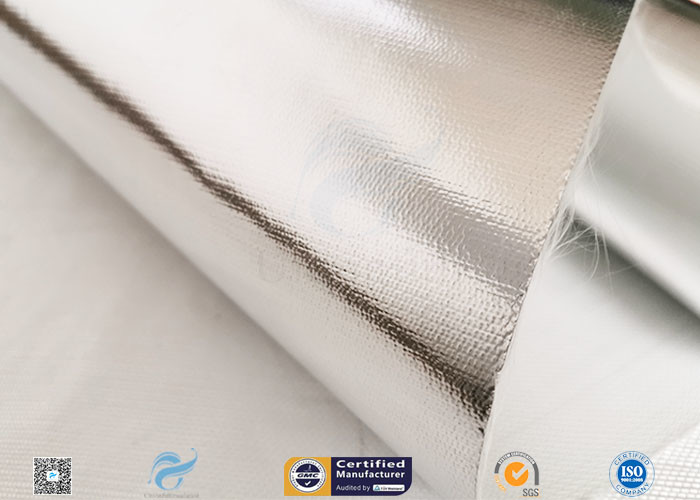

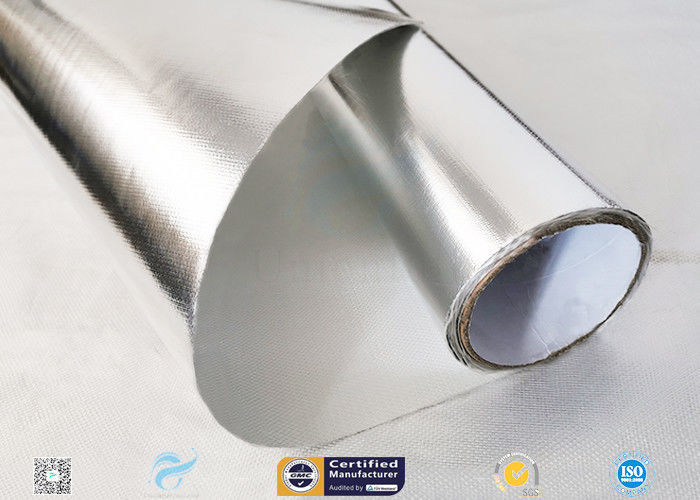

Moisture Resistant Aluminium Foil Silver Coated Fabric 300℃ Industry Using 0
