|Basic Cloth:||3732||Alkali Content:||Alkali Free|

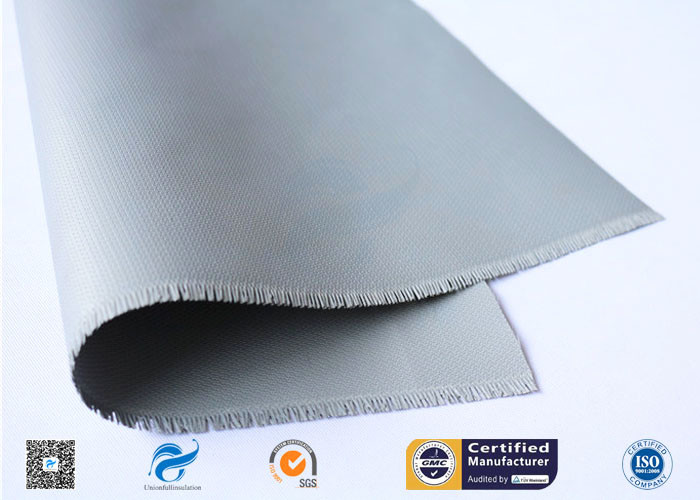

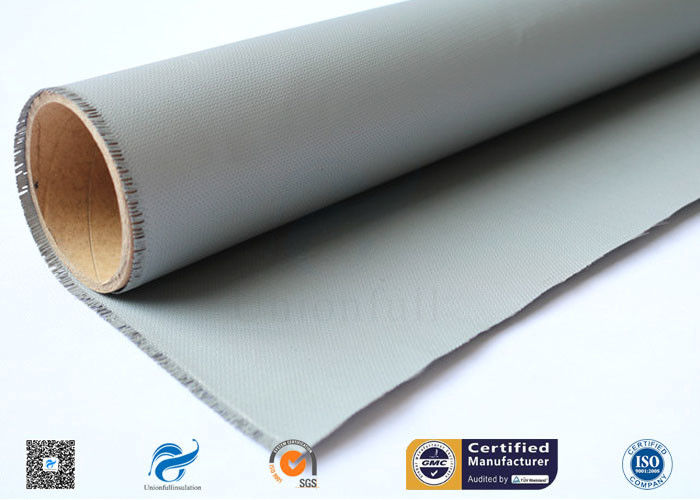

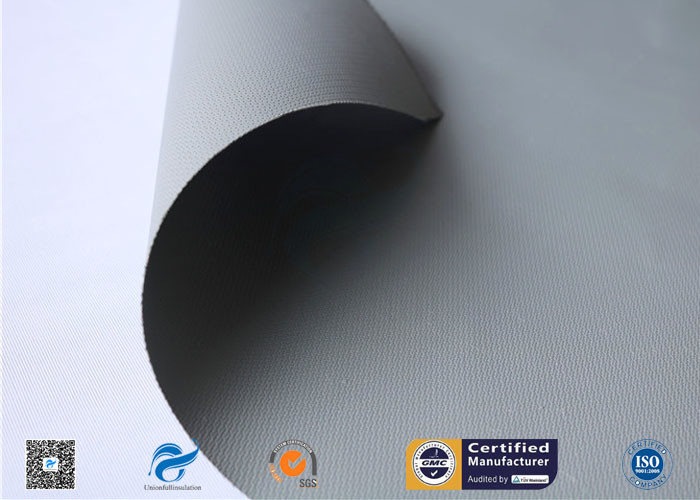

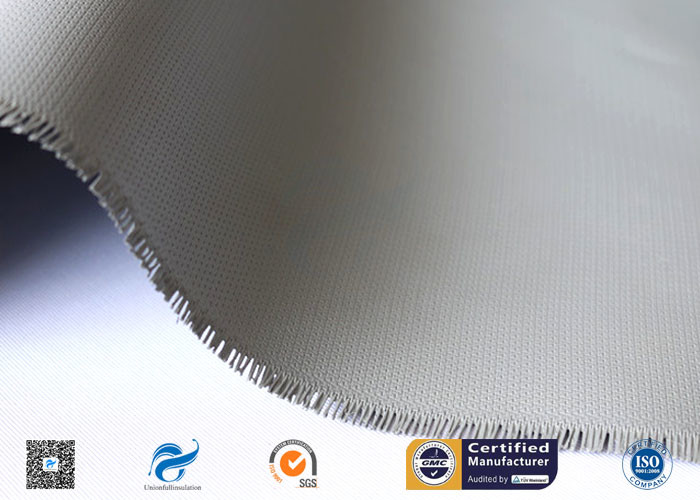

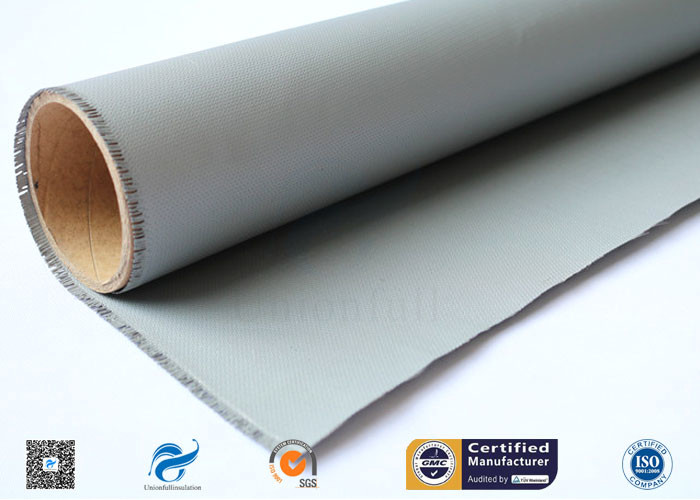

E Glass Satin Weave Double Sides Grey Silicone Coated Fiberglass Fabric
Silicone coated fiberglass cloth has good resistance to extreme temperatures, operate temp. from -50°C to +260°C.
It also has excellent weatherproof, water repellent, good chemical resistance to acids and lye, good mechanical properties for make-up.
We provide 1 side and 2 sides silicone coated fiberglass cloth with different coating weight, colors and widths for difference applications.
|Thickness of raw fabric(mm)||0.43±0.02|
|Area Weight of raw fabric(g/m2)||430|
|Warp/weft yarn density(ends/cm)||18x13±1|
|Color of coating||gray|
|Area weight of silicon rubber coated (g/m2)||160|
|Total area weight after coated (g/m2)||590|
|Maximum heat resistance for base fiberglass fabric(ºC)||550ºC|
|Maximum heat resistance for the silicon rubber coating(ºC)||260ºC|
|Tensile strength (N/5cm)||warp||6000N/5CM|
-Excellent release properties
-High strength and tear resistance
-High dielectric strength
-High resistance to wear and flexing
-High chemical resistance, impervious to mild alkalies, non-oxidizing acids, most salts, mineral and lubricating oils, air, moisture and sunlight
-Operating temperature range from -50°C to +260°C
-Non-toxic odorless and tasteless
1. Insulation jackets, mattress and pad
2. Fabric expansion joints
3. Fabric ductwork connector
4. Fire doors & Fire curtains
5. Welding/fire blankets
6. Other fire control systems
