0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric

0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO, RoHS
Model Number: UPSE-8732D160
Minimum Order Quantity: 500m2
Price: usd3~4/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000m2/Month
Get Best Price Contact Now
Material: Fiberglass Fabric Alkali Content: Alkali Free
Width: 1.5 Meter Coated Fiberglass Fabric Area Weight: 590g/sqm
Usage: Fire Resistant, Flame Resistant Standing Temperature: From -50℃ To 500℃
Highlight:

silicone coated glass cloth

,

silicone coated fiberglass cloth

0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric



Introduce



Silicone coated fiberglass fabric is a kind of high performance and multifunction composite materials, it's widely used in Aerospace, Chemical, Petroleum, Large Power Generation Equipment, Machinery, Metallurgy, Electrical Insulation, Building, Transportation and other fields.



Data



Weight 590 g/m2
Thickness

0.46mm
Width 1000mm 1200mm 1500mm
Coated Silicone 2 sides
Color Red
Fire resistance Good
Working temperature Basic fabric 550 ºC, Silicone coating 260 ºC.
Pattern Satin
Yarn warp EC9 68 1*2
Yarn weft EC9 68 1*2
Construction warp 18±1 ends/cm
Construction weft 12.6±1 ends/cm
Fiberglass E -Glass





Features



1. Excellent heat and cold resistance (long-term working temperature from -70 to 260℃

2. Good aging resistance

3. High strength

4. Chemical acid and alkali resistant



Main Applications



* Heat/electrical insulation jacket

* Laminated mat

* Flexible duct connector

* Hot air blower

* Flexible duct

* Non-metal compensator or Fabric expansion joints

* Fireproof curtain & blanket

* Welding blanket

* Construction electrical protection cover

* Other fire-control systems



Pictures

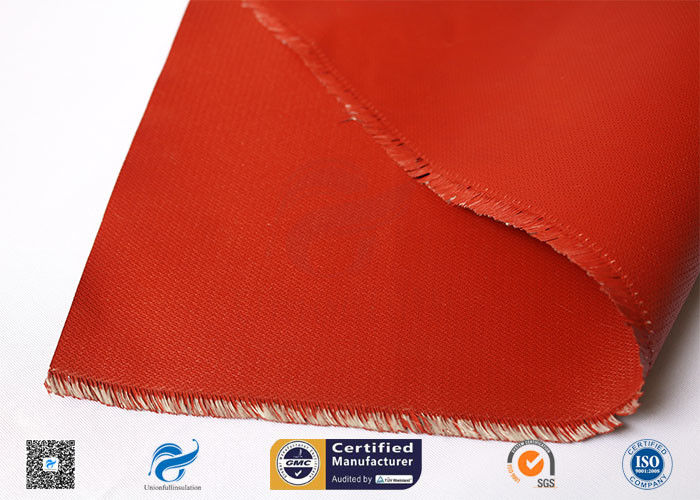

0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 0

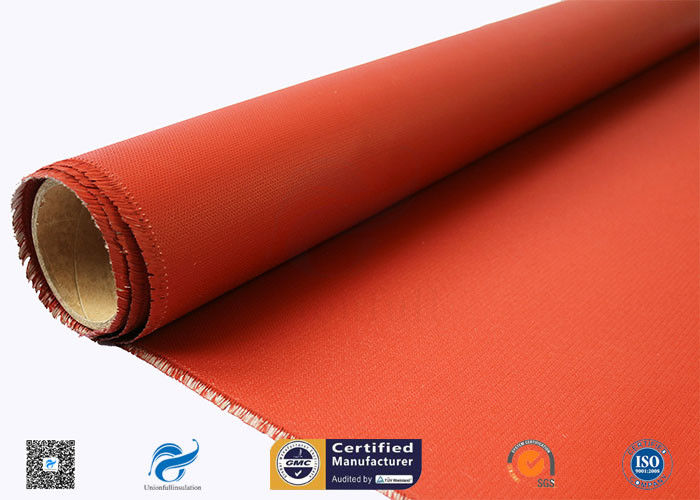

0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric 1



Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd.
