Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPEAL-8732 |
Minimum Order Quantity: | 500m |
Price: | $2.3~$4 |
Packaging Details: | One roll in woven bag |
Delivery Time: | 7~15days after payment received |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 350000 squar meter per week |
Surface Treatment: | Aluminium Foil Coated | Basic Fabric: | Fiberglass Fabric |
---|---|---|---|
Thickness: | 0.43mm | Aluminium Thickness: | 7/18/25 Micron |
Weight: | 430g/m2 | Temperature: | 300~550℃ |
Alkali Content: | Free | Yarn Type: | E-glass |
Roll Length: | 50m | ||
High Light: | carbon fiber fabric,silver carbon fiber |

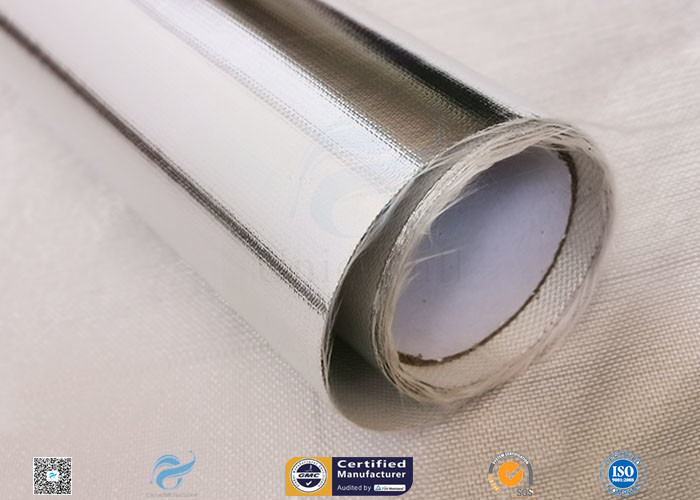

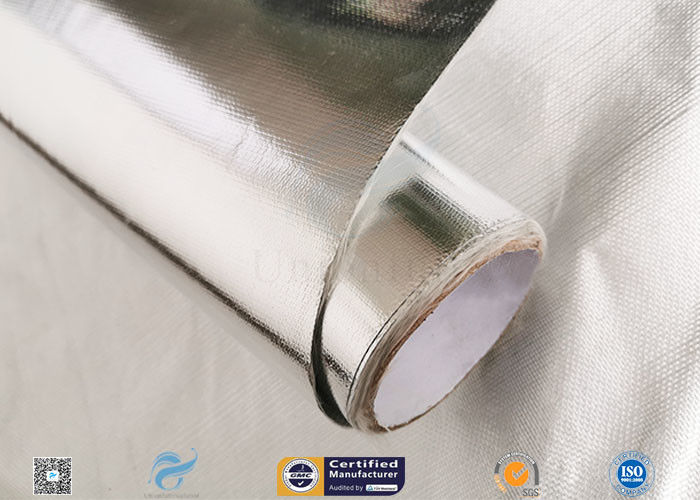

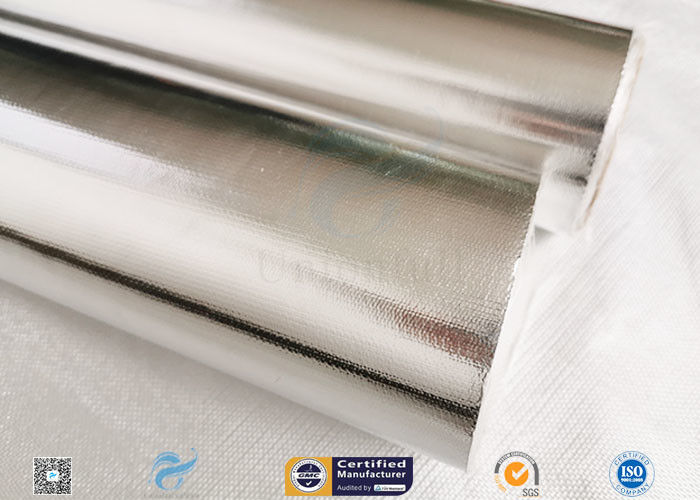

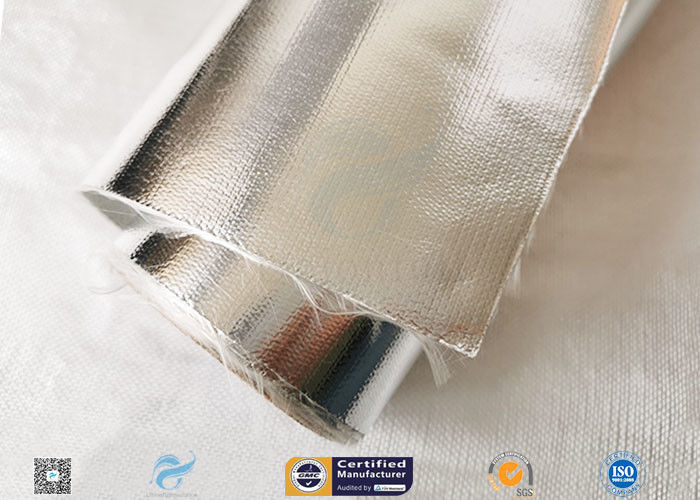

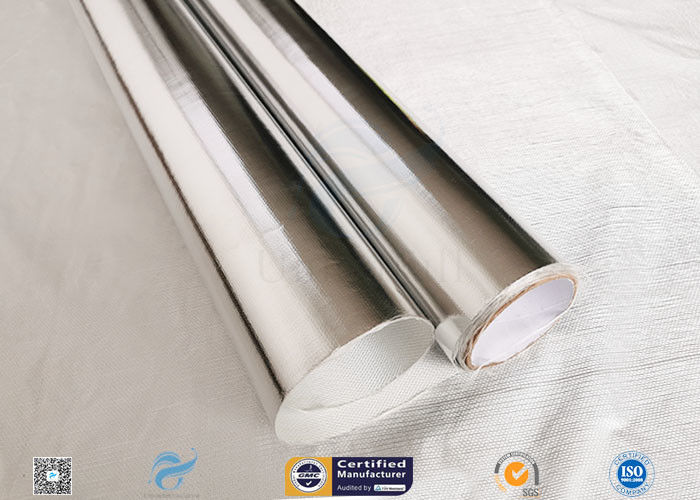

Heat Insulation 0.43mm Thick Aluminium Foil Coated Fiberglass Fabric
Aluminium Coated Fiberglass Fabric is coated with aluminium foil in order to reduce fraying in a variety of application. It's mainly used for insulation of pipes, buildings, ships, HVAC equipment, foundries, cars and motorbikes. Its continuous working temperature is 550℃ and its short-term working temeperature is 600℃.
Properties:
1. Light and heat reflectivity
2. Smooth surface
3. Anti-corrosion
4. Waterproof
5. Tear resistance
Main Sepecification:
Item | Area Weight (g/m2) |
Tensile Strength | Thickness(mm) | Temperature℃ | Weaving |
PCAL-8628
|
200 | 2025/1620 | 0.2 | 300-550 | Plain |
UPCAL-8732
|
420 | 6000/4500 | 0.43 | 300-550 | Satin |
UPEAL-8732
|
430 | 6000/4500 | 0.43 | 300-550 | Satin |
UPCAL-8784
|
880 | 8000/6000 | 0.85 | 300-550 | Satin |
Data sheet:
Basic Fabric
|
E-glass fabric |
|
Surface
|
Aluminium Foil coating | |
Aluminium Foil
|
7/18/25 Micron | |
Weight
|
430g/m2 | 13oz/yd2 |
Thickness
|
0.43mm | 0.017inch |
Tensile strength
|
6000/4500 (N/50mm) | |
Temperature resistant
|
300-550℃
|
|
Thread Count
|
18/12.6 ±1 ends/cm |
|
Weave
|
Satin |
Application:
• High temperature insulation
• Energy efficient insulation
• Removable covers and blankets
• Pipe insulation
• Building materials
• Petrochemical industries
Pictures:
