Non - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

Non - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric

China Non - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric supplier
Non - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric supplier Non - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric supplier Non - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric supplier Non - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric supplier

Large Image :  Non - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray



Non-adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric



Glass fiber is an inorganic non-metallic material with excellent properties. It is a process of melting, drawing, winding, weaving, etc. of glass balls or waste glass. Finally, various types of products are formed. Silicone coated fiberglass fabric excles in excellent waterproof/fireproof, Non-adhesive, high insulation properties.



UPSE-8732D80 is made of good quality E-glass fiberglass cloth,which is a light weight material but has moderate tensile and compressive strength. The alkali-free glass fiber yarn is mainly used for weaving electronic cloth, electric insulating cloth and fishing rod cloth. These three kinds of fabrics have higher requirements on the cloth surface, especially the electronic cloth. The user has uniform thickness and unit area quality. Sexual requirements are particularly high, so the requirements for yarn are also particularly high.



Data Sheet:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSE-8732D80
Material

Basic Fabric: 3732 E-glass fiber

Pattern:Silicone Coated

Weight(g/m2) 510g/m2
Width 1000mm
Thickness 0.45mm
Color Gray
Temperature -70~260℃
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Yarn type(Warp/Weft) G37 1/0 0.7Z /G37 1/0 0.7Z
Length 50m per roll



Properties:

1.Toxic free and safe, Eco-friendly



2.Shade, light, ventilation
This fabric eliminates up to 80% of solar radiation, maintains indoor air circulation, and provides a clear view of the outdoor scene.



3.Low friction coefficient is the best choice for oil-free self-lubrication.



4.With high insulation properties, UV protection, anti-static.



5.High softness, good adhesion and no chipping



6.Antibacterial, moisture proof
The fabric is a natural mineral, does not provide a bacterial growth environment, bacteria can not breed, the fabric will not mold.



Application:

1.It is a fantasy protection thing for the public security fire safety key unit. When it is used for construction in public places such as large shopping malls, supermarkets, hotels, etc., such as welding, cutting, etc.: using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk.



2.Glass fiber cloth is mostly used in hand lay-up process. Glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.



3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



4.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.



5.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied



6.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

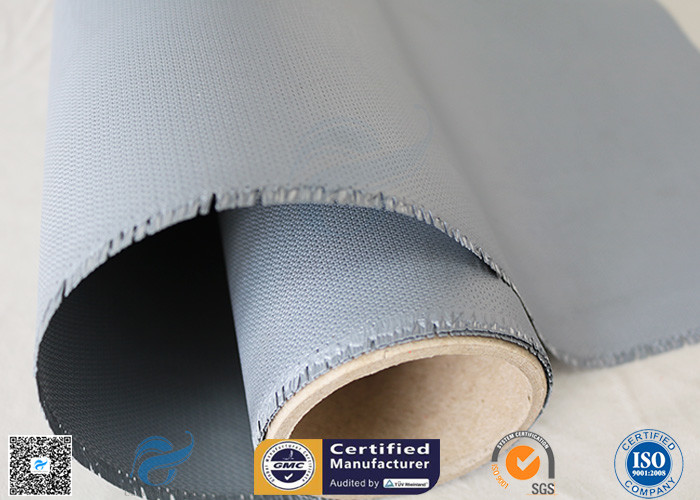

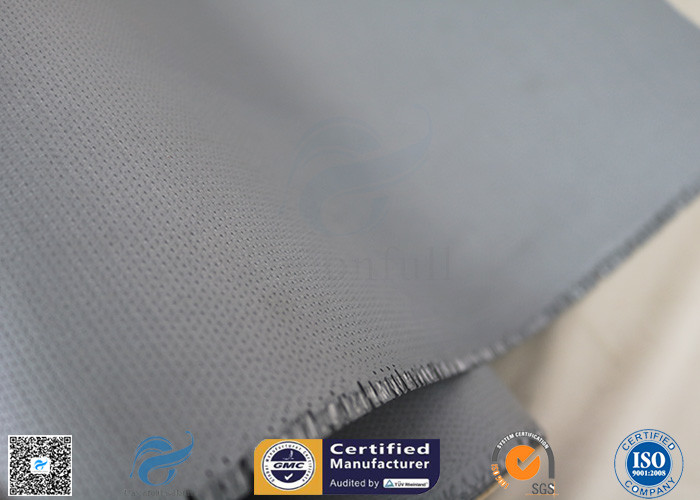

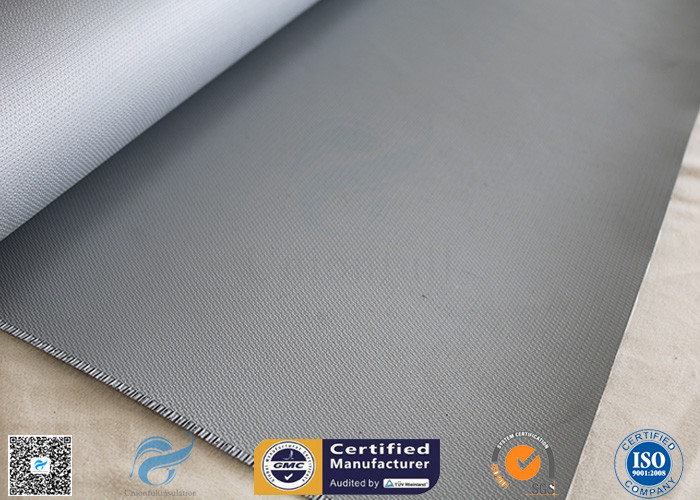

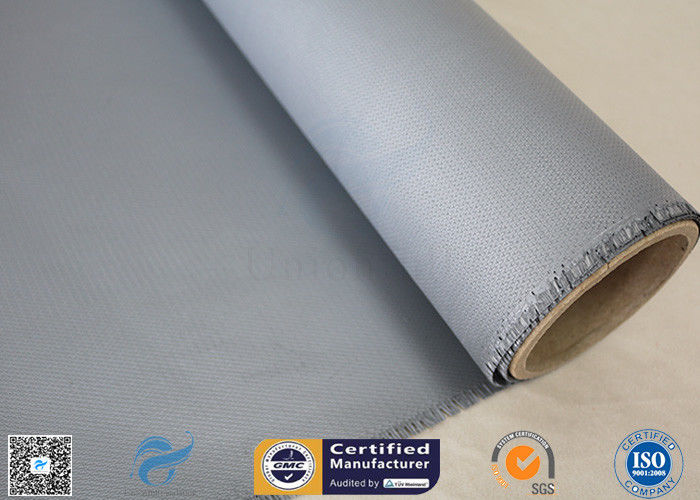

Pictures:

Non - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass FabricNon - Adhesive 0.45mm Gray Color 510g High Insulaiton Silicone Coated Fiberglass Fabric
