260℃ High Temp Resistant 18oz 0.45mm E - Glass Silicone Coated Fiberglass Fabric

China 260℃ High Temp Resistant 18oz 0.45mm E - Glass Silicone Coated Fiberglass Fabric supplier
260℃ High Temp Resistant 18oz 0.45mm E - Glass Silicone Coated Fiberglass Fabric supplier 260℃ High Temp Resistant 18oz 0.45mm E - Glass Silicone Coated Fiberglass Fabric supplier 260℃ High Temp Resistant 18oz 0.45mm E - Glass Silicone Coated Fiberglass Fabric supplier 260℃ High Temp Resistant 18oz 0.45mm E - Glass Silicone Coated Fiberglass Fabric supplier

Large Image :  260℃ High Temp Resistant 18oz 0.45mm E - Glass Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray



260℃ High Temp. Resistant 18oz 0.45mm E-glass Silicone Coated Fiberglass Fabric



Fiberglass fabric is a light weight material which has moderate tensile and compressive strength.As an ideal engineering material in construction, glass fiber cloth is mainly used to reinforce cement, roofing, wall materials, stone etc. Unionfull can produce any size according to customer's requirements like width and weight per square meter. Our product quality is guaranteed as approved by SGS, TUV, and we are the winner of the IMO rules.



UPSE-8732D80 is 0.45mm thick, 510g/m2 after coating, and can be use from -70°C to 260°C. The basic fiberglass cloth is able to resist 550℃ continuously.



This kind of cloth is Alkali-free fiber, commonly known as E-glass: The R2O content is less than 0.8%, which is an aluminoborosilicate component. Its chemical stability, electrical insulation properties and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.





Data Sheet:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSE-8732D80
Material

Basic Fabric: 3732 E-glass fiber

Pattern: Silicone Coated

Weight(g/m2) 510g/m2
Width 1000mm
Thickness 0.45mm
Color Gray
Temperature -70~260℃
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Yarn type(Warp/Weft) G37 1/0 0.7Z /G37 1/0 0.7Z
Length 50m per roll





Properties:

1.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.



2.Durable, abrasion resistant



3.Good Chemical resistant



4.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time. No warping, expansion



5.Temp resistance:-70℃ to 260℃



6.Non-adhesive, not easy to adhere to any substance.



7.Resistant to ozone, sample, light and weather aging, excellent weather ability in the field, life expectancy of up to 10 years





Application:

1.It is a fantasy protection thing for the public security fire safety key unit. When it is used for construction in public places such as large shopping malls, supermarkets, hotels, etc., such as welding, cutting, etc.: using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk.



2.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



3.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



4.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.



5.In the transportation industry, buses, yachts, tankers, cars, etc. are used.



6.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.





Pictures:

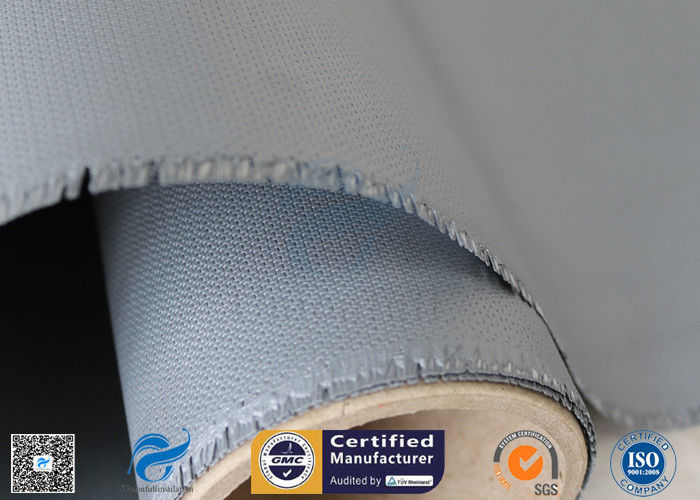

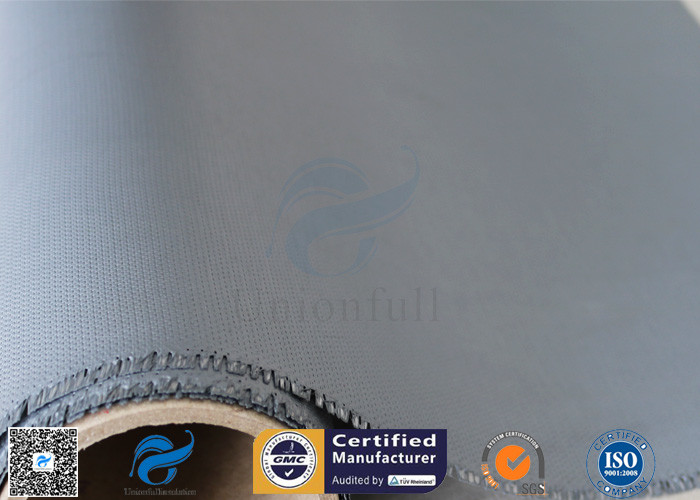

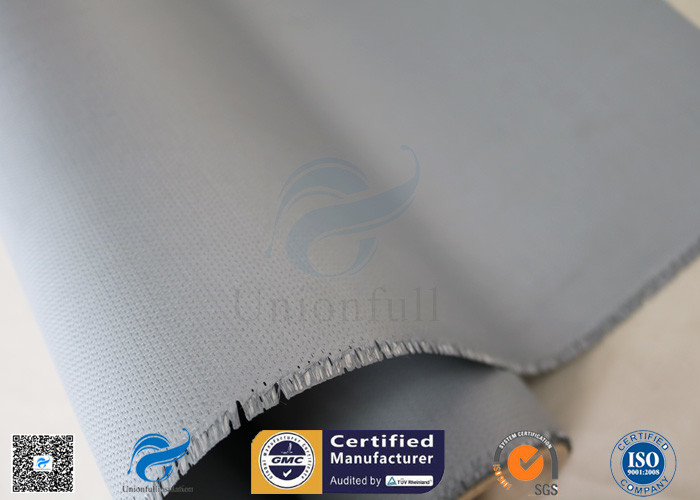

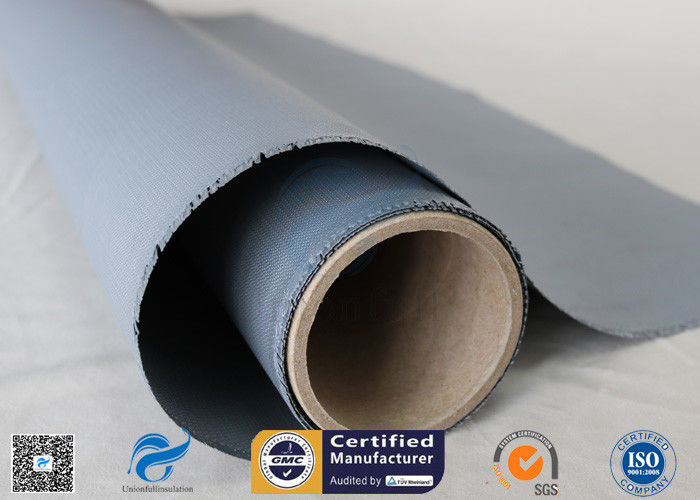

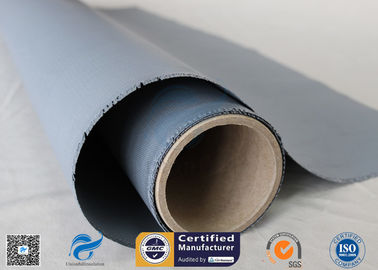

260℃ High Temp Resistant 18oz 0.45mm E - Glass Silicone Coated Fiberglass Fabric260℃ High Temp Resistant 18oz 0.45mm E - Glass Silicone Coated Fiberglass Fabric
