Satin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass Fabric

China Satin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass Fabric supplier
Satin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass Fabric supplier Satin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass Fabric supplier Satin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass Fabric supplier Satin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass Fabric supplier

Large Image :  Satin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray



Satin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass Fabric



UPSE-8732D80 is made of good quality fiberglass cloth and coated with 40g silicone rubber on each side. And it is 0.45mm thick, 510g/m2 after coating. Silicone coated fiberglass cloth can be use from -70°C to 260°C. The basic fiberglass cloth is able to resist 550℃ continuously.



This type is woven by satin weave,the four-harness satin is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.In this weave patter there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.



Description of UPSE-8732D80 are as below:



Material: E-glass fiber

Coating: Silicone Silicone Rubber

Coating side: 2 sides

Coating Weight: 40g+40g

Thickness: 0.45mm

Total Weight: 510g

Length: 50m/roll

Flammable: ≤25%

Temperature: Fiberglass cloth ≤ 550℃

Silicone coating ≤ 260℃

Weave pattern: 4HS

Feature: High Temp. resist, Chemical resistant, good indulation properties, High strength





Data Sheet:



Item Name Silicone Coated Fiberglass Fabric
Products Code UPSE-8732D80
Material

Basic Fabric: 3732 E-glass fiber

Pattern:Silicone Coated

Weight(g/m2) 510g/m2
Width 1000mm
Thickness 0.45mm
Color Gray
Temperature -70~260℃
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Yarn type(Warp/Weft) G37 1/0 0.7Z /G37 1/0 0.7Z
Length 50m per roll





Properties:



1.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.



2.Shade, light, ventilation
This fabric eliminates up to 80% of solar radiation, maintains indoor air circulation, and provides a clear view of the outdoor scene.



3.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time. No warping, expansion



4.Fire prevention
Fiberglass fabrics have flame retardant properties not found in other fabrics. The real fiberglass fabric, after the fire, because the inner skeleton of the fabric is glass fiber, it will not be deformed and will not be charred.



5.High softness, good adhesion and no chipping



6.Resistant to ozone, sample, light and weather aging, excellent weather ability in the field, life expectancy of up to 10 years





Application:



1.It is a fantasy protection thing for the public security fire safety key unit. When it is used for construction in public places such as large shopping malls, supermarkets, hotels, etc., such as welding, cutting, etc.: using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk.



2.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



3.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.



4.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.



5.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

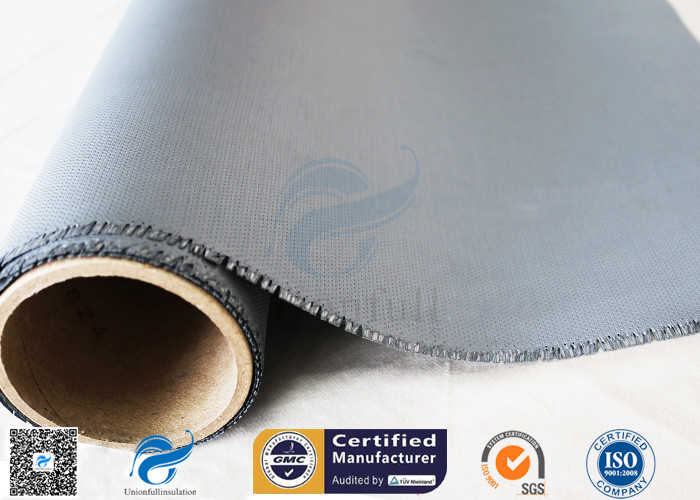

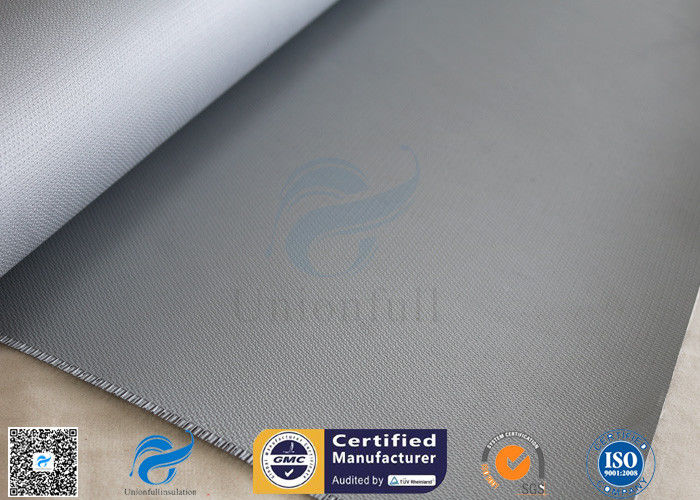

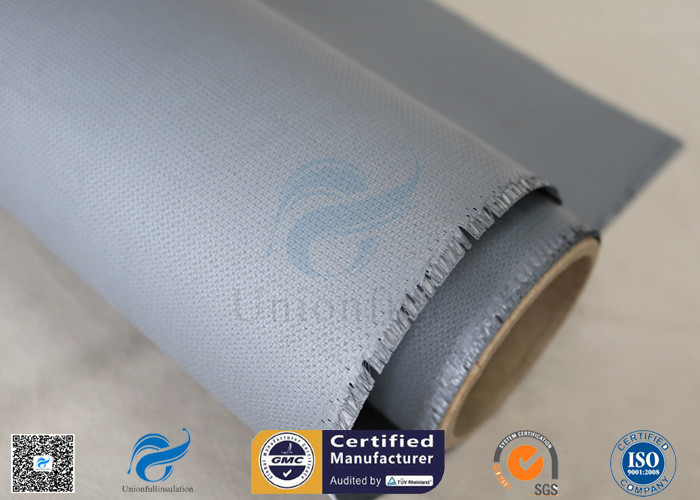

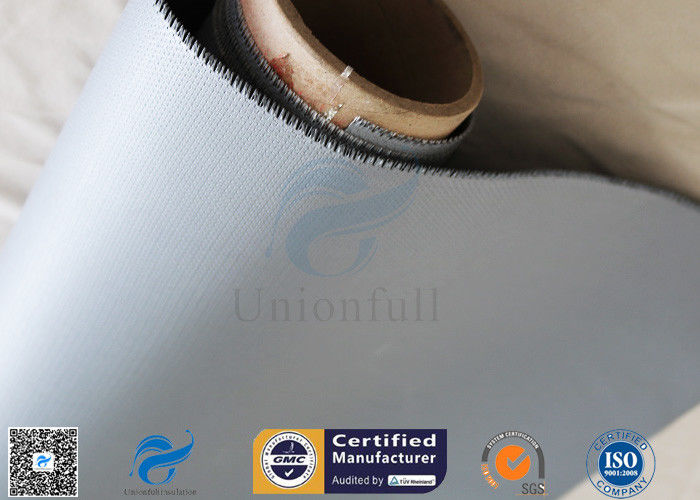

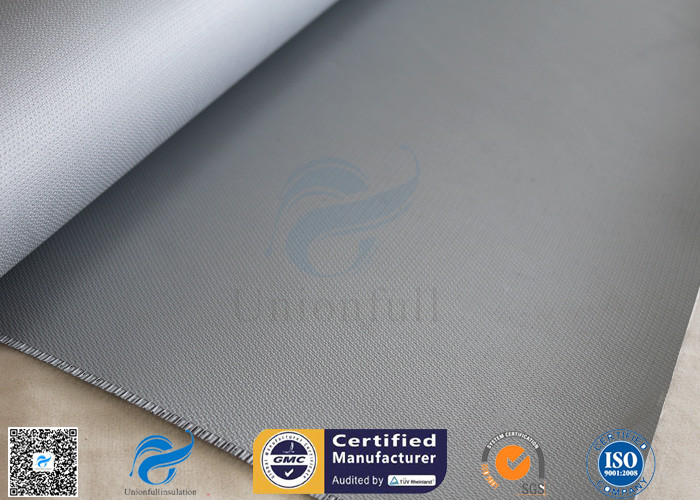

Pictures:



Satin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass FabricSatin Weave Abrasion Resistant 0.45mm 40/40g Silicone Coated Fiberglass Fabric
