E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric

China E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric supplier
E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric supplier E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric supplier E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric supplier E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric supplier

Large Image :  E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D160

Payment & Shipping Terms:

Minimum Order Quantity: 100m2
Price: usd2.5~3.8/m2

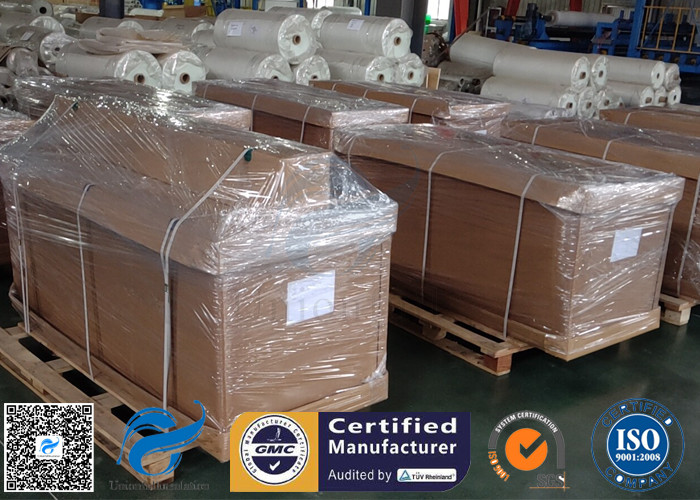

Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 7 days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4 HS
Thickness: 0.43mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 590g/m2
Basic Weight: 430g/m2 Color: Red/Gray/Orange

E-glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590g Silicone Coated Fiberglass Fabric



E-glass fiber is also know as Alkali-free, which the R2O content is less than 0.8%, it is an aluminoborosilicate component. E type glass fiber present excellent chemical stability, electrical insulation properties and high strength. So it is the most widly use fabric than C-glass, S-glass.



Unionfullinsulation's Silicone coated fiberglass fabric is made from high quality fiberglass cloth and coated with silicone rubber on both or single side. It is providing greater oil and water resistance than uncoated fabrics as well as electrical insulation.



UPSE-8732D160 is E-glass type coated with 40g /80g silicone rubber on each side, so the total weight is 510g/m2 / 590g/m2, and thickness is 0.45mm.



It is woven by satin weave(4HS), the four-harness satin is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.In this weave patter there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.







Data Sheet:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSE-8732D160
Material

Basic Fabric: 3732 E-glass fiber

Pattern:Silicone Coated

Weight(g/m2) 510g/m2  /590g/m2
Width 1000mm
Thickness 0.45mm
Color Red/Gray/Orange
Temperature -70~260℃
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Yarn type(Warp/Weft) G37 1/0 0.7Z /G37 1/0 0.7Z
Length 50m per roll





Properties:

1.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time. No warping, expansion



2.Fire prevention
Fiberglass fabrics have flame retardant properties not found in other fabrics. The real fiberglass fabric, after the fire, because the inner skeleton of the fabric is glass fiber, it will not be deformed and will not be charred.



3.Antistatic
It does not adsorb solid particles in the air and does not adhere to dust, which can effectively reduce the amount of dust.



4.Excellent high temperature insulation performance

Working temperature can be from -70℃ to 260℃



5.Anti-ripper
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.





Application:

1.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.



2.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.



3.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.





4.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



5.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.







Pictures:

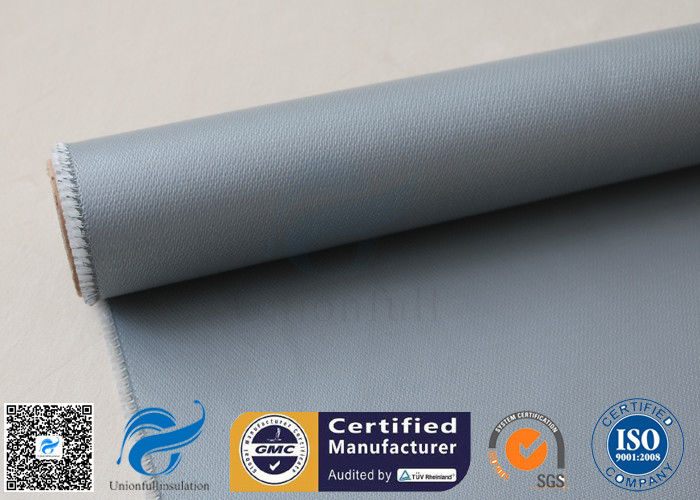

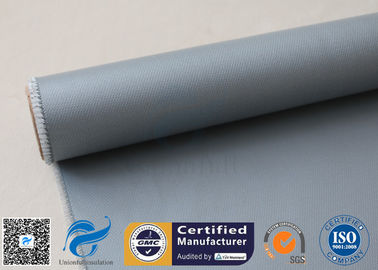

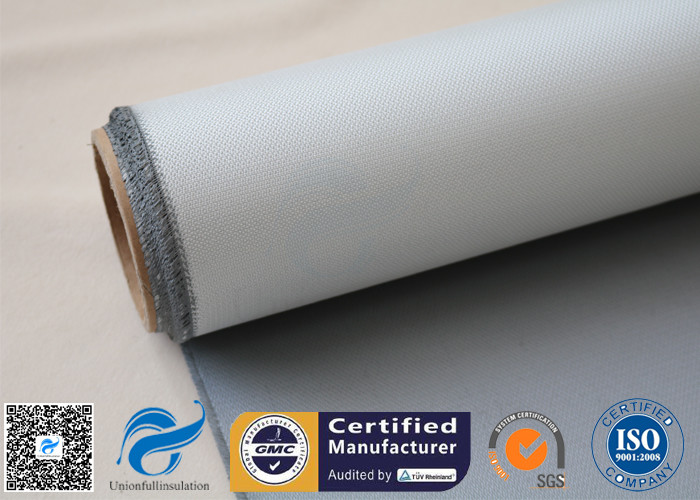

E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric



E - Glass 260℃ Gray Silicone Coated Curtains 4HS 510g / 590 Silicone Coated Fiberglass Fabric
