Chemical Corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass Fabric

China Chemical Corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass Fabric supplier
Chemical Corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass Fabric supplier Chemical Corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass Fabric supplier Chemical Corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass Fabric supplier Chemical Corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass Fabric supplier

Large Image :  Chemical Corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red



Chemical corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass Fabric



UPSE-8732D80 is E-glass type and woven by satin weave-4HS:



The four-harness satin is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.In this weave patter there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.



Four methods to weave the fabric:

a). Plain weave: it can be used in electricity insulation materials and reinforced materials in industry,

because of inseparable structure, plain and clear lines.
b).Twill weave: compared with plain weave, it is of high density, high intensity, with a soft and loose

structural weave. It can be used in ordinary reinforced materials, filter materials, and painting cloth.
c) Satin weave: compared with plain weave and twill weave, it is of high density,high intensity, with a

soft and loose structural weave with a good texture. It is applicable for use as a higher reinforced

material in machinery.
d). Gauze weave: said lattice twist weave. It can be used in spread model curtain,resin reinforced emery





Data Sheet:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSE-8732D80
Material

Basic Fabric: 3732 E-glass fiber

Pattern:Silicone Coated

Weight(g/m2) 510g/m2
Width 1000mm
Thickness 0.45mm
Color Red
Temperature -70~260℃
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Yarn type(Warp/Weft) G37 1/0 0.7Z /G37 1/0 0.7Z
Length 50m per roll



Properties:

1.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.



2.Fire prevention
Fiberglass fabrics have flame retardant properties not found in other fabrics. The real fiberglass fabric, after the fire, because the inner skeleton of the fabric is glass fiber, it will not be deformed and will not be charred.



3.Antibacterial, moisture proof
The fabric is a natural mineral, does not provide a bacterial growth environment, bacteria can not breed, the fabric will not mold.



4.Excellent high temperature insulation performance



5.This fabric eliminates up to 80% of solar radiation, maintains indoor air circulation, and provides a clear view of the outdoor scene.





Application:

1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



2.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.



3.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.



4.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.



5.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

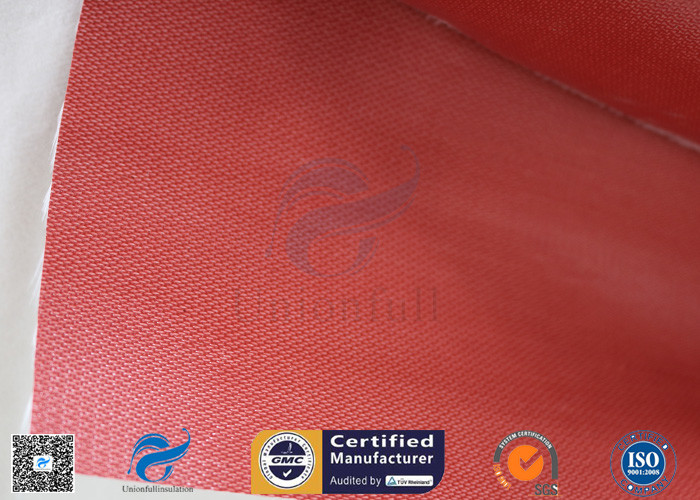

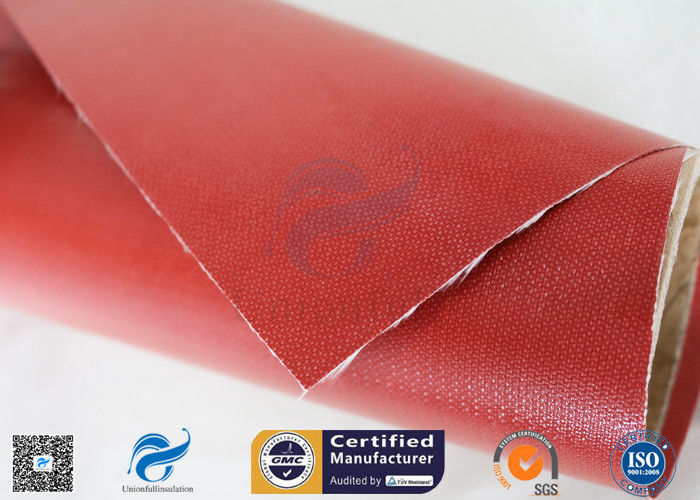

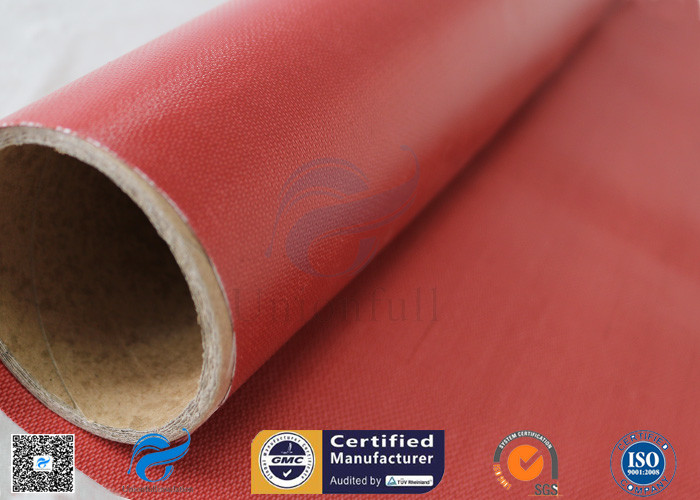

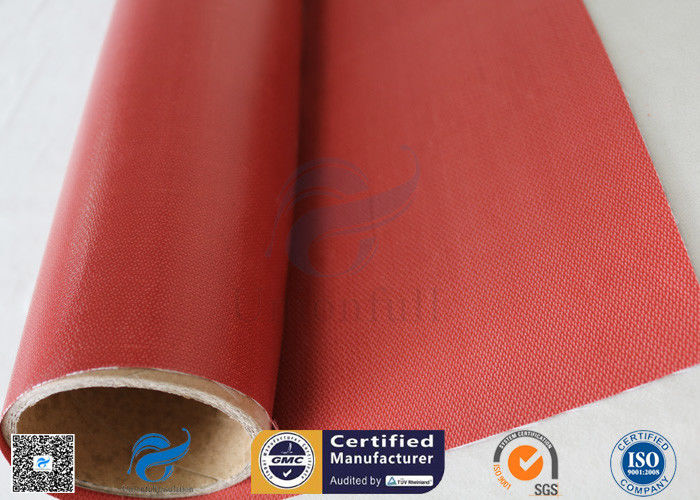

Pictures:

Chemical Corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass FabricChemical Corrosion 1m*50m Satin Weave 0.45mm Silicone Coated Fiberglass Fabric
