Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric

China Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric supplier
Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric supplier Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric supplier Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric supplier Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric supplier

Large Image :  Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red



Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric



Silicone coating is durable and abrasion resistant to withstand the high temperatures heat.The working temperature can be from -70℃ to 260℃, so it is used to be made insulation jacket, fire blanket etc.



UPSE-8732D80 is made of E-glass fiber cloth which R2O content is less than 0.8%, this type of fabric is more softness and tough. It is mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.



Description of UPSE-8732D80 are as below:



Material: E-glass fiber

Coating: Red Silicone Rubber

Coating side: 2 sides

Coating Weight: 40g+40g

Thickness: 0.45mm

Total Weight: 510g

Length: 50m/roll

Flammable: ≤25%

Temperature: Fiberglass cloth ≤ 550℃

                      Silicone coating ≤ 260℃

Weave pattern: 4HS

Feature: High Temp. resist, Chemical resistant, good indulation properties, High strength







Data Sheet:



                                                   Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white            1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white            1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white            2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white            1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white            2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white            2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white            2



Properties:



1.With high insulation properties, UV protection, anti-static.



2.Non-adhesive, not easy to adhere to any substance



3.Durable, abrasion resistant



4.Excellent high temperature insulation performance



5.This fabric eliminates up to 80% of solar radiation, maintains indoor air circulation, and provides a clear view of the outdoor scene.



6.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.



7.Fire prevention
Fiberglass fabrics have flame retardant properties not found in other fabrics. The real fiberglass fabric, after the fire, because the inner skeleton of the fabric is glass fiber, it will not be deformed and will not be charred.







Application:



1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



2.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.



3.Application in filtration: gas filtration and liquid filtration



4.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.



5.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

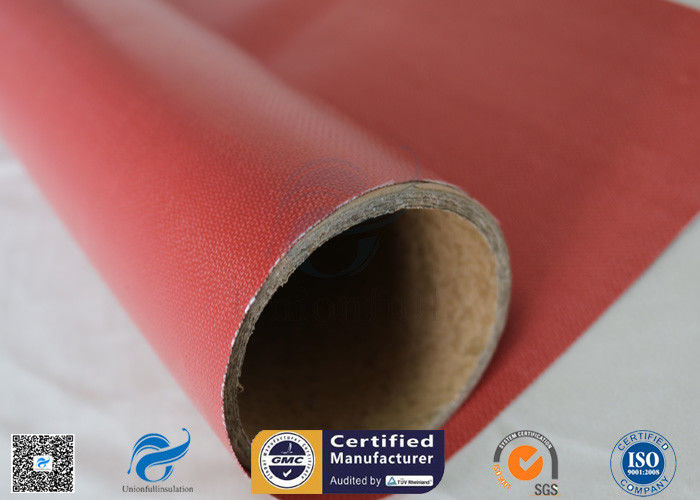

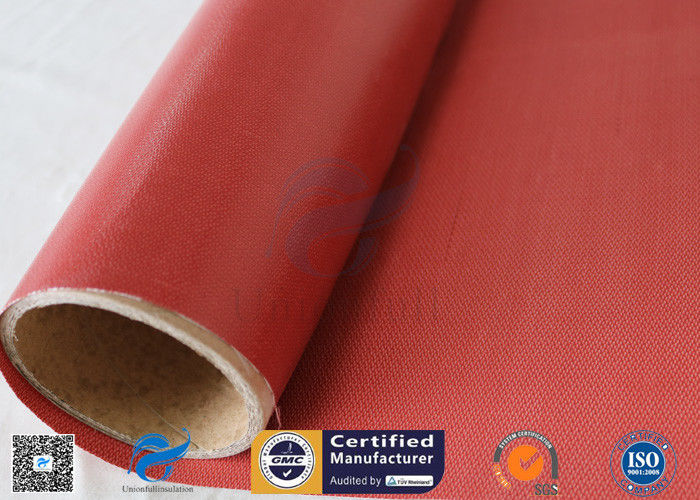

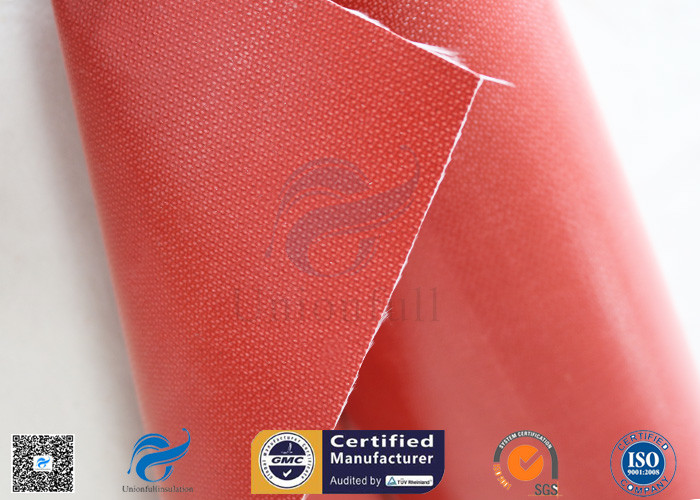

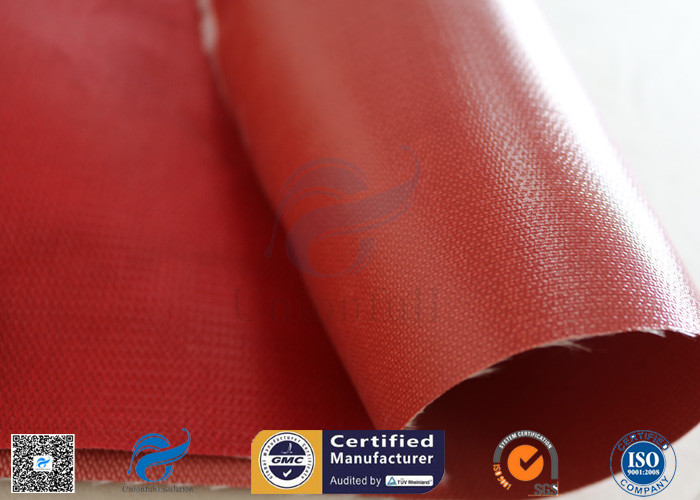

Pictures:

Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass FabricRemovable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric
