1000mm Wide 50m Long 40/40g Double - Sided Red Silicone Coated Fiberglass Fabric

China 1000mm Wide 50m Long 40/40g Double - Sided Red Silicone Coated Fiberglass Fabric supplier
1000mm Wide 50m Long 40/40g Double - Sided Red Silicone Coated Fiberglass Fabric supplier 1000mm Wide 50m Long 40/40g Double - Sided Red Silicone Coated Fiberglass Fabric supplier 1000mm Wide 50m Long 40/40g Double - Sided Red Silicone Coated Fiberglass Fabric supplier 1000mm Wide 50m Long 40/40g Double - Sided Red Silicone Coated Fiberglass Fabric supplier

Large Image :  1000mm Wide 50m Long 40/40g Double - Sided Red Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red



1000mm Wide 50m Long 40/40g Double-sided Red Silicone Coated Fiberglass Fabric



UPSE-8732D80 is made of E-glass fiber cloth with high strength,corrosion resistance and high temperature resistance.



E-glass fiberglass fabric is Alkali-free, the R2O content is less than 0.8%, which is an aluminoborosilicate component. And has excellent chemical stability, electrical insulation properties. It is mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.



The details of UPSE-8732D80 are as below:



Material: Fabric:100% E-glass fiber

              Coating:Silicone Rubber

Structure:3 layers--Silicone+Glass fiber+Silicone

Coating side: double -sides

Coating Weight: 40g+40g

Total Weight: 510g

Length: 50m/roll

Width: 1m

Flammable: ≤25%

Temperature: Fiberglass cloth ≤ 550℃

                      Silicone coating ≤ 260℃

Type: E-glass(Alkali free)

Weave pattern: 4HS

Feature: High Temp. resist, Chemical resistant, good indulation properties, High strength







Data Sheet:



                                                   Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2



Properties:



1.ISO9001,ISO2008,SGS,TUV certified



2.High and low temperature resistance:

High temperature resistance 280 ° C, low temperature resistance minus 70 ° C



3.Durable, abrasion resistant



4.Excellent high temperature insulation performance



5.Outstanding thermal conductivity to meet various heat dissipation requirements



6.High softness, good adhesion and no chipping



7.Good chemical resistance



8.Low friction coefficient is the best choice for oil-free self-lubrication.





Application:



1.Application in filtration: gas filtration and liquid filtration



2.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.



3.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.



4.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



5.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



Pictures:

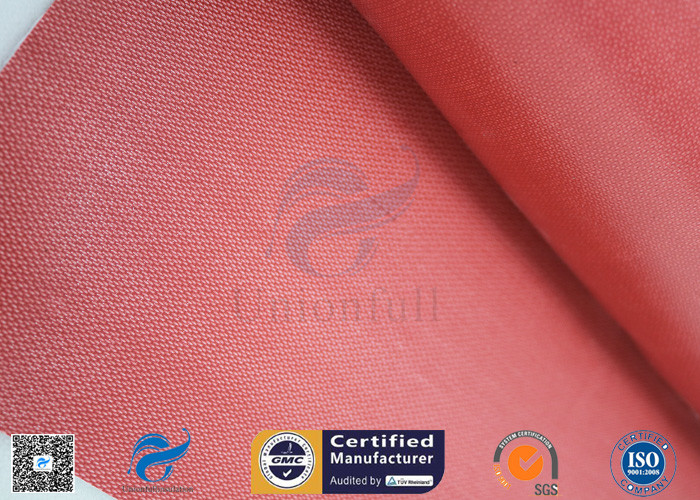

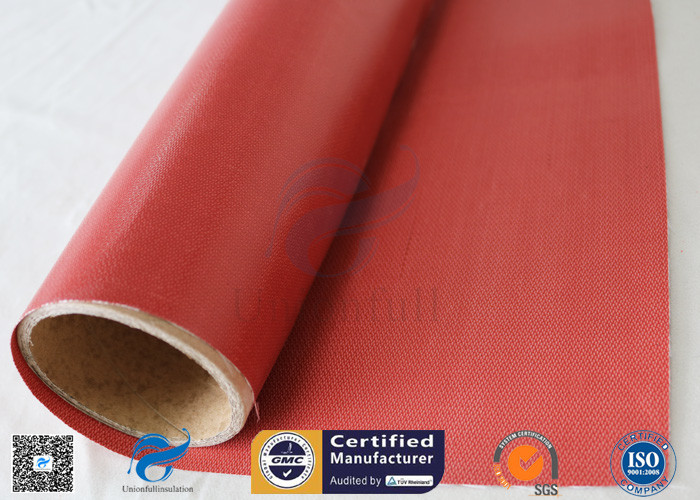

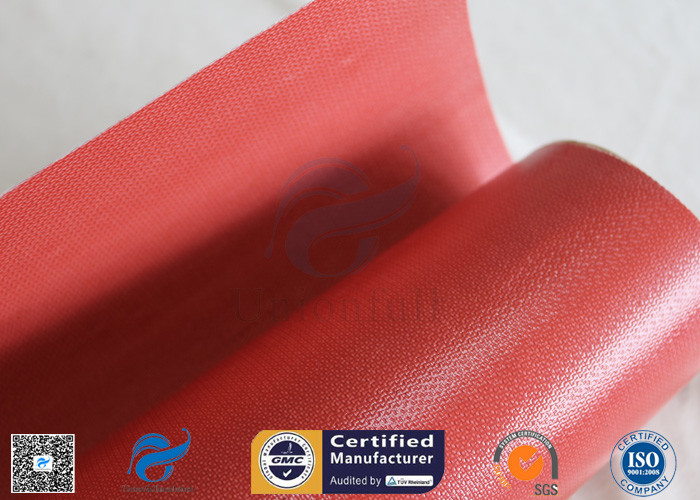

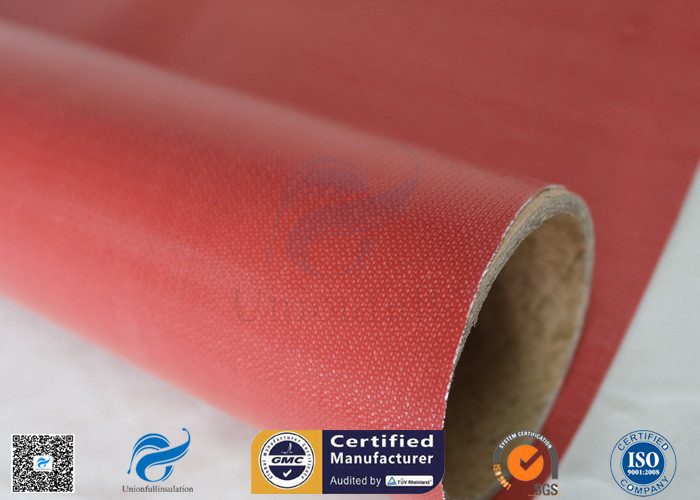

1000mm Wide 50m Long 40/40g Double - Sided Red Silicone Coated Fiberglass Fabric1000mm Wide 50m Long 40/40g Double - Sided Red Silicone Coated Fiberglass Fabric
