Furnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass Fabric

China Furnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass Fabric supplier
Furnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass Fabric supplier Furnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass Fabric supplier Furnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass Fabric supplier Furnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass Fabric supplier

Large Image :  Furnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red

Furnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass Fabric



Silicone coated fiberglass fabric is made of glass fiber cloth with high temperature resistance, corrosion resistance and high strength. As the cloth can withstand of high temperature up to 260℃, meanwhile can absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air, so it is widely used in industries like furnace curtain, fireproof blanket, welding curtain etc..

This red silicone cloth is double side coating whcih is coated 40g on each side, and total weight at 510g/m2. It extended fabric life, while providing greater oil and water resistance than uncoated fabrics as well as heat insulation.



UPSE-8732D80 is E-glass type, means Alkali-free: The R2O content is less than 0.8%, which is an aluminoborosilicate component. Its chemical stability, electrical insulation properties and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.





Data Sheet:



                                                   Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2



Properties:

1.Non-formaldehyde-based binders ,Toxic free and safe, environment friendly

2.Durable, abrasion resistant

3.Excellent high temperature insulation performance

4.Good temperature resistant, can be from -70℃ to 260℃

5.Low thermal conductivity

6.Good chemical resistance

7.Outstanding dimensional stability





Application:



1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



2.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.



3.Application in filtration: gas filtration and liquid filtration



4.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.



5.In the transportation industry, buses, yachts, tankers, cars, etc. are used.



6.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

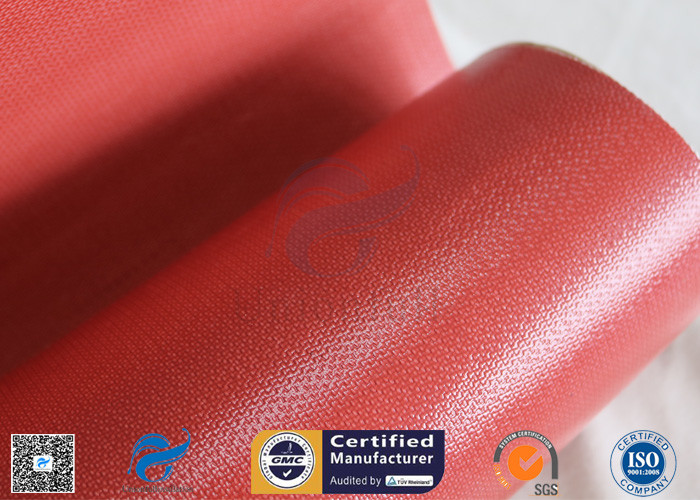

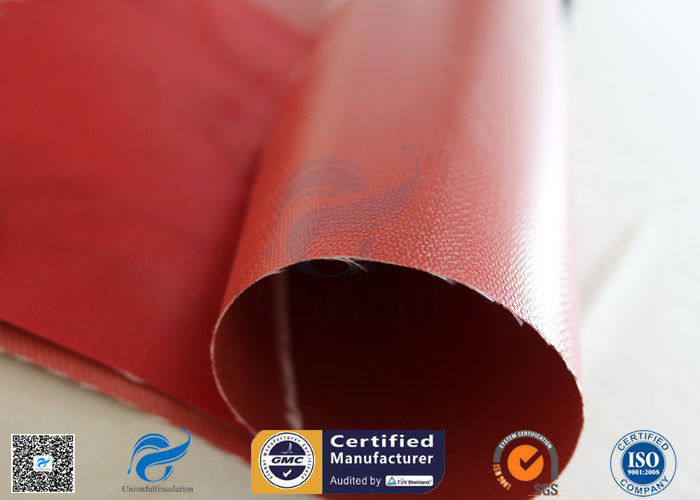

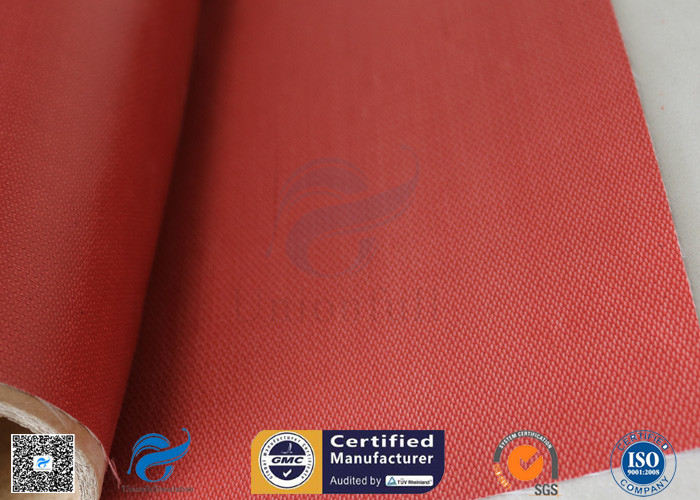

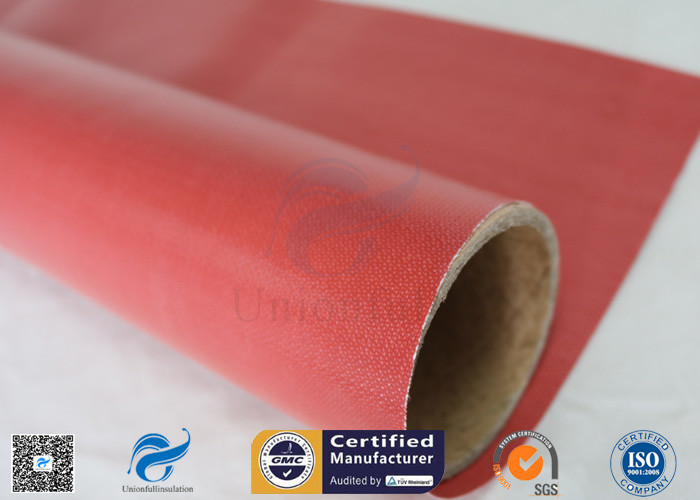

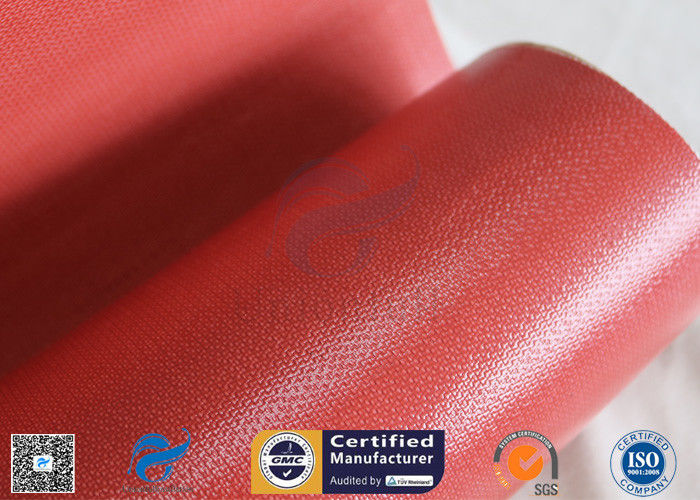

Pictures:

Furnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass FabricFurnace Curtain 0.45mm 40/40g 1000mm Red Silicone Rubber Coated Fiberglass Fabric
