Flame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass Fabric

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

Flame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass Fabric

China Flame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass Fabric supplier
Flame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass Fabric supplier Flame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass Fabric supplier Flame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass Fabric supplier Flame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass Fabric supplier

Large Image :  Flame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray

Flame Resistant 510g E-glass 18OZ Silicone Rubber Coated Fiberglass Fabric



Fiberglass fabric is a light weight material which has high tensile but soft easy to be cut. UPSE-8732D80 is a basic fiberglass fabric coated with 40g silicone rubber on each side, and the fabric weighted at 510g after coating. It extended fabric life, while providing greater oil and water resistance than uncoated fabrics as well as heat insulation. Unionfull also offering sigle-side coating fiberglass cloth as customer's request.The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air, so it is also called fireproof fabric.



This kind of fabric is E-glass type, means Alkali-free: The R2O content is less than 0.8%, which is an aluminoborosilicate component. Its chemical stability, electrical insulation properties and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.



Data Sheet:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSE-8732D80
Material

Fabric:100% E-glass fiber

Pattern:Silicone Coated

Structure:3 layers--Silicone+Glass fiber+Silicone

Weight(g/m2) 510g/m2 (430g+40g+40g)
Width 1000mm
Thickness 0.45mm
Color Gray
MOQ 500m2
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Yarn type(Warp/Weft) G37 1/0 0.7Z /G37 1/0 0.7Z
Length 50m per roll



Properties:

1.Toxic free and safe, environment friendly

2.Tensile strength and long service life

3.Excellent high temperature insulation performance

4.Has good low temperature and high temperature strength, -70~260℃

5.Low thermal conductivity

6.Good chemical resistance

7.Good weather ability



Application:

1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



2.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



3.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.



4.Anti-corrosion: Silicone-coated glass fiber cloth can be used as a pipeline, saving internal and external anti-corrosion layer, excellent anti-corrosion performance and high strength, and it is an ideal anti-corrosion material.



5.Application in filtration: gas filtration and liquid filtration



6.Daily life

Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life are also used.



7.In the transportation industry, buses, yachts, tankers, cars, etc. are used.

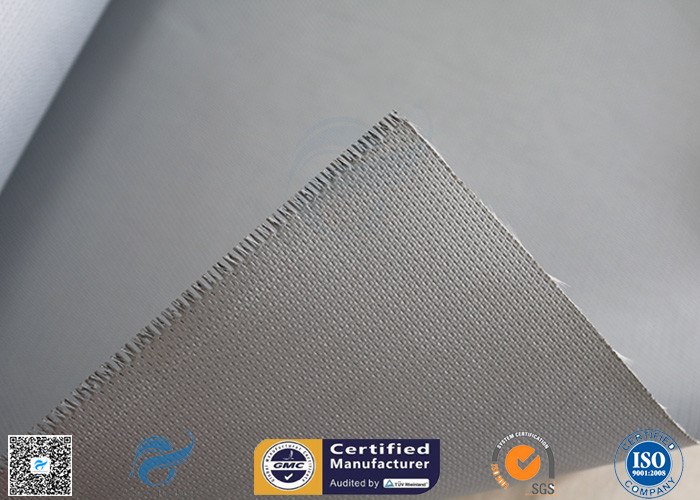

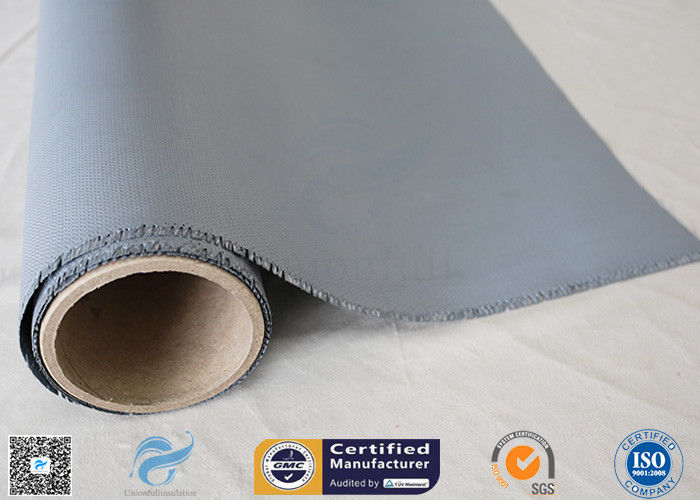

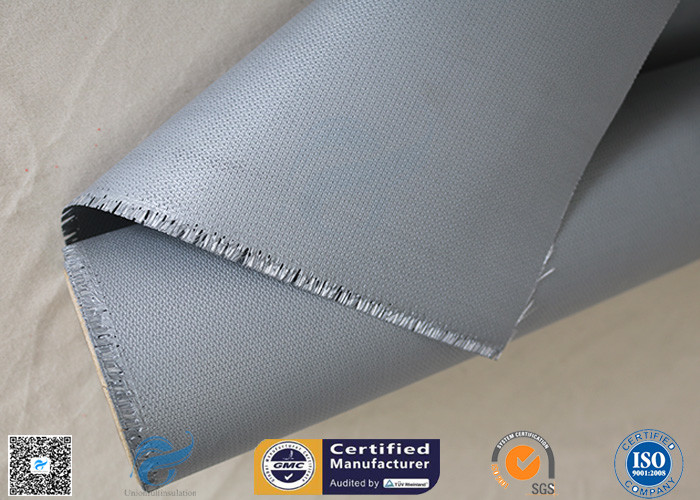

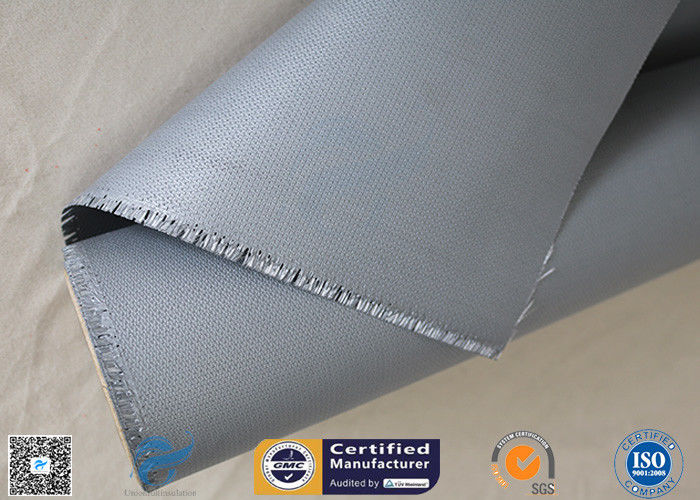

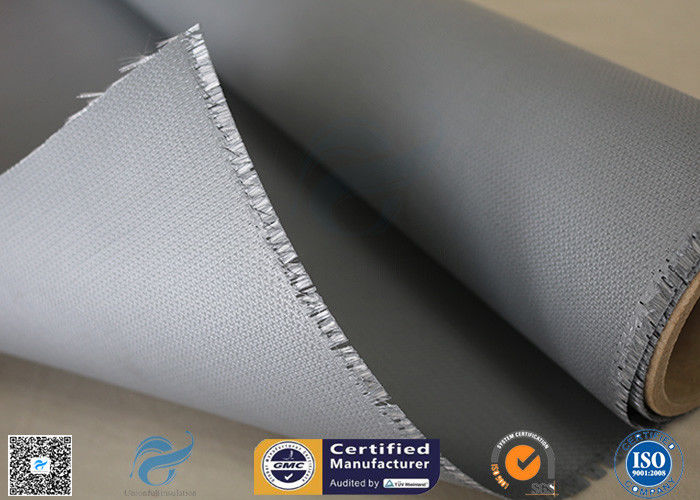

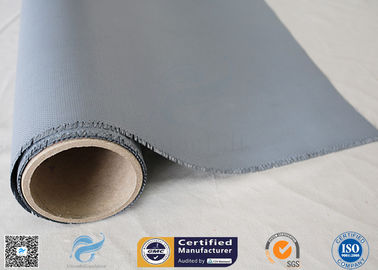

Pictures:

Flame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass FabricFlame Resistant 510g E-Glass 18OZ Silicone Rubber Coated Fiberglass Fabric
