18OZ Heat Insulation 3732 E - Glass 0.45mm Silicone Coated Fiberglass Fabric

China 18OZ Heat Insulation 3732 E - Glass 0.45mm Silicone Coated Fiberglass Fabric supplier
18OZ Heat Insulation 3732 E - Glass 0.45mm Silicone Coated Fiberglass Fabric supplier 18OZ Heat Insulation 3732 E - Glass 0.45mm Silicone Coated Fiberglass Fabric supplier 18OZ Heat Insulation 3732 E - Glass 0.45mm Silicone Coated Fiberglass Fabric supplier 18OZ Heat Insulation 3732 E - Glass 0.45mm Silicone Coated Fiberglass Fabric supplier

Large Image :  18OZ Heat Insulation 3732 E - Glass 0.45mm Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray

18OZ Heat Insulation 3732 E-glass 0.45mm Silicone Coated Fiberglass Fabric



3732 fiberglass fabric is a common glass fiber which weighted at 200g/m2 and woven by satin weave. Unionfull's Silicone coated fiberglass fabric is made from high quality e-glass fiberglass cloth, coated with silicone rubber on each side. It presents excellent heat insulation properties at continuous operating temperature up to 260℃ while the uncoating fabric can be up to 550℃.



Fiberglass fabric is classified by raw material composition:

(1) Alkali-free fiber (commonly known as E-glass): The R2O content is less than 0.8%, which is an aluminoborosilicate component. Its chemical stability, electrical insulation properties and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.

(2) Medium alkali fiber(C-glass): R2O content is 11.9%-16.4%. It is a kind of soda-calcium silicate component. Because of its high alkali content, it can not be used as electrical insulating material, but its chemical stability and strength are still good. Generally used as latex cloth, woven fabric substrate, acid filter cloth, window material substrate, and the like.

(3) High alkali fiber: A glass component having an R2O content of 15% or more. For example, glass fiber drawn from raw materials such as broken flat glass and broken glass. It can be used as waterproof and moisture-proof materials for battery separators, pipe wrapping cloths and mats.



Data Sheet:

          Items Silicone Coated Fiberglass Fabric
          Yarn G75 1/0 0.7Z / G75 1/0 0.7Z
        Material

Fabric:100% E-glass fiber

Pattern:Silicone Coated

Structure:3 layers--Silicone+Glass fiber+Silicone

          Type E-glass
         Weight 510g/m2 (430+40+40 g/m2)
       Thickness 0.45mm
         Width 1m,1.2m,1.5m
       Roll length 50m
     Temperature

Fiberglass Cloth ≤ 550℃

Coating ≤ 300℃



Properties:

1.High softness, good adhesion and no chipping

2.High temperatures resistant up to 260℃

3.Non-flammable

It is inorganic fibers, the fire-retardant grade meets the IMO standard

4.Outstanding chemical resistant

5.Superior abrasion resistant

6.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.

7.Antibacterial, moisture proof
The fabric is a natural mineral, does not provide a bacterial growth environment, bacteria can not breed, the fabric will not mold.



Application:

1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



2.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



3.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.



4.Anti-corrosion: Silicone-coated glass fiber cloth can be used as a pipeline, saving internal and external anti-corrosion layer, excellent anti-corrosion performance and high strength, and it is an ideal anti-corrosion material.



5.Application in filtration: gas filtration and liquid filtration

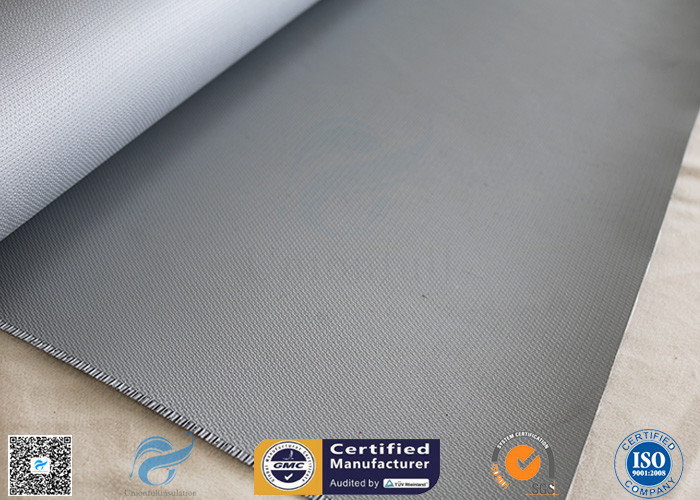

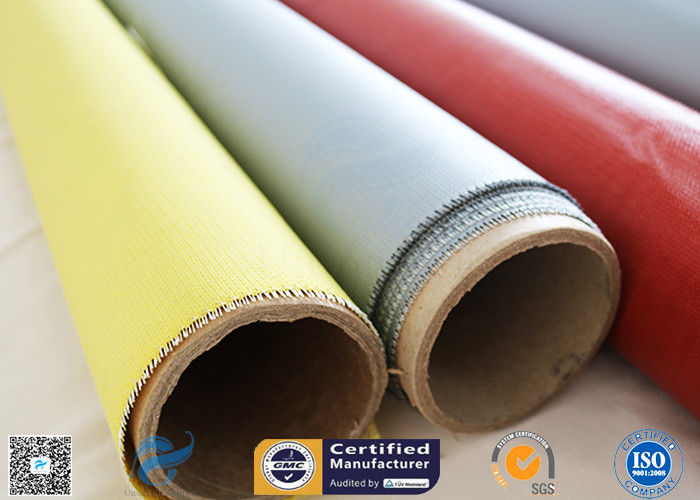

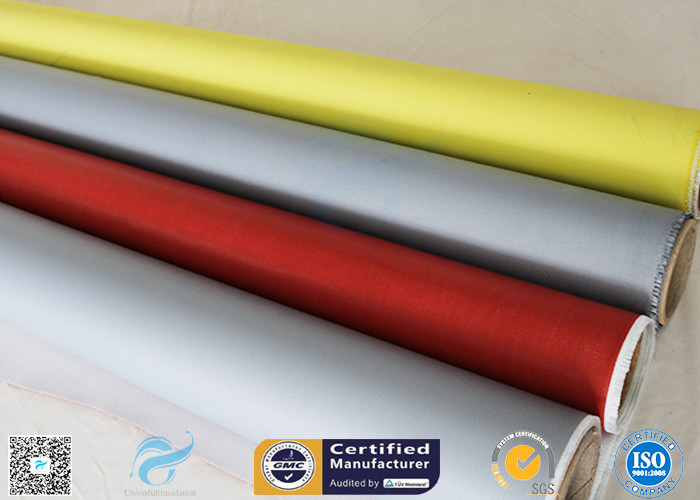

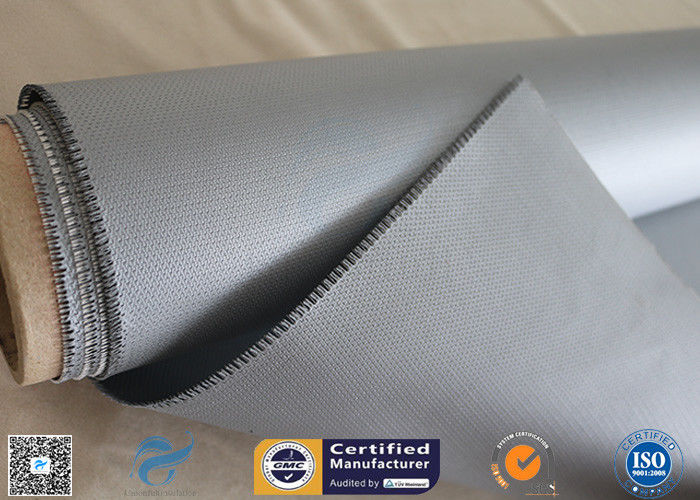

Pictures:

18OZ Heat Insulation 3732 E - Glass 0.45mm Silicone Coated Fiberglass Fabric18OZ Heat Insulation 3732 E - Glass 0.45mm Silicone Coated Fiberglass Fabric
