3732 E - Glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric

China 3732 E - Glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric supplier
3732 E - Glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric supplier 3732 E - Glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric supplier 3732 E - Glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric supplier 3732 E - Glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric supplier

Large Image :  3732 E - Glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray

3732 E-glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric



Silicone coated fiberglass cloth produced by Unionfull excels in applications requiring superior thermal resistance meanwhile has excellent dimensional stability.



Fiberglass fabric classified by raw material composition:

1.Alkali-free fiber (commonly known as E-glass)

2.Medium alkali fiber(C-glass)

3.High alkali fiber



UPSE-8732D80 is the type of E-glass:The R2O content is less than 0.8%, which is an aluminoborosilicate component. Its chemical stability, electrical insulation properties and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.







Data Sheet:

          Items Silicone Coated Fiberglass Fabric
          Yarn G75 1/0 0.7Z / G75 1/0 0.7Z
          Type E-glass
        Material

Fabric:100% E-glass fiber

Pattern:Silicone Coated

Structure:3 layers--Silicone+Glass fiber+Silicone

         Weight 510g/m2 (430g+40g+40g)
       Thickness 0.45mm
         Width 1.2m
       Roll length 50m

Tensile Strength(N/MM)

270/170

         MOQ 500m2
     Temperature

Fiberglass Cloth ≤ 550℃

Coating ≤ 300℃





Properties:

1.Good chemical resistant

2.Temperature resistant, for low temperature -70 ° C to high temperature 280 ° C

3.Highly uniform thermal insulation properties

4.Non-adhesive, not easy to adhere to any substance.

5.Superior abrasion resistant

6.Low friction coefficient

7.With high insulation properties, UV protection, anti-static.

8.high strength. Has good mechanical properties



Application:



1.Electrical insulation: Silicone cloth has a high electrical insulation grade, can withstand high voltage load, and can be made into insulation cloth, casing and other products.



2.Glass fiber cloth is mostly used in hand lay-up process. Glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.



3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



4.In the construction industry, kitchens, column beams, decorative panels, fences, etc. are applied.

5.In the transportation industry, buses, yachts, tankers, cars, etc. are used.

6.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.

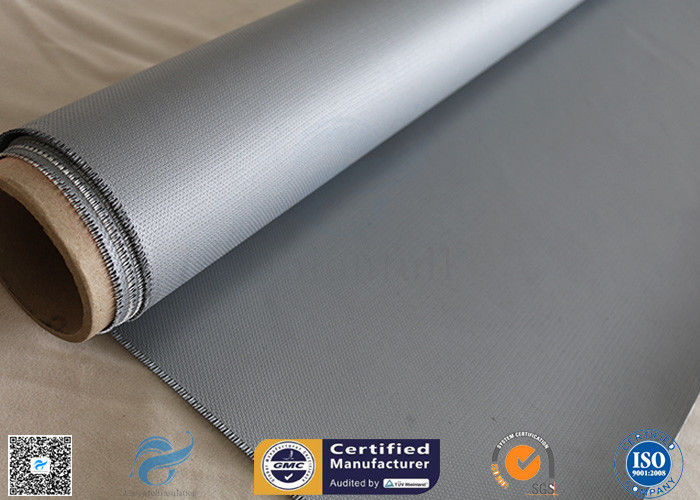

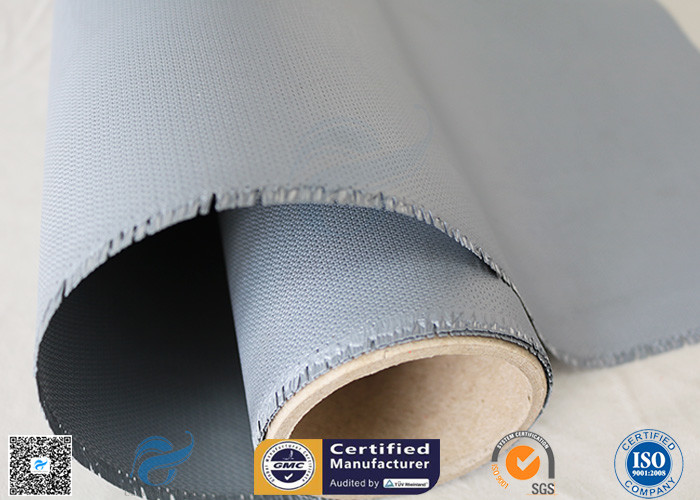

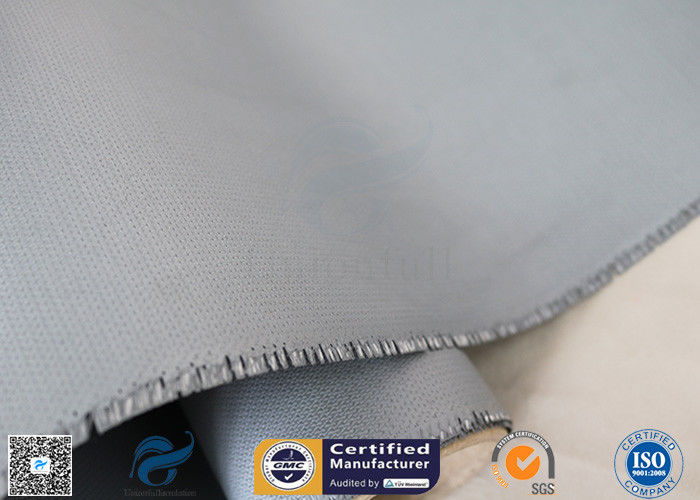

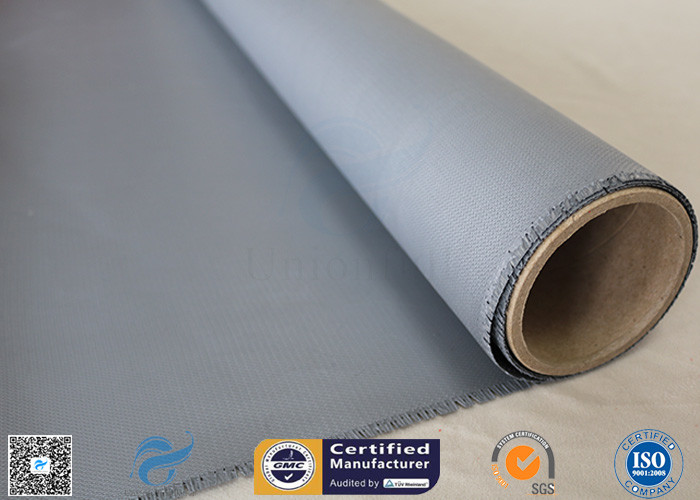

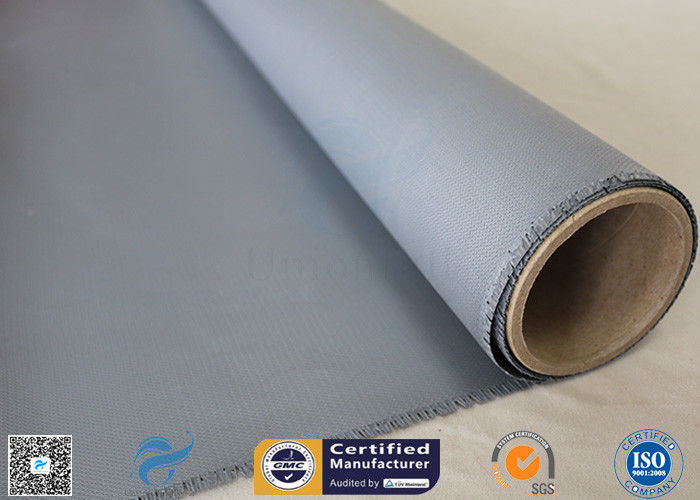

Pictures:

3732 E - Glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric3732 E - Glass 1.2m Width Heat Resistant 0.45mm Gray Silicone Coated Fiberglass Fabric
