Electrical Insulation 40/40g 1.2m Width 260℃ Silicone Coated Fiberglass Fabric

China Electrical Insulation 40/40g 1.2m Width 260℃ Silicone Coated Fiberglass Fabric supplier
Electrical Insulation 40/40g 1.2m Width 260℃ Silicone Coated Fiberglass Fabric supplier Electrical Insulation 40/40g 1.2m Width 260℃ Silicone Coated Fiberglass Fabric supplier Electrical Insulation 40/40g 1.2m Width 260℃ Silicone Coated Fiberglass Fabric supplier Electrical Insulation 40/40g 1.2m Width 260℃ Silicone Coated Fiberglass Fabric supplier

Large Image :  Electrical Insulation 40/40g 1.2m Width 260℃ Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray

Electronic Resistance 40/40g Double-sided 260℃ Silicone Coated Fiberglass Fabric



Unionfull's Silicone coated fiberglass fabric is made from e-glass fiberglass cloth, which is coated with silicone rubber on both sides. It excels in applications requiring superior thermal resistance and shows excellent dimensional stability. UPSE-8732D80 is coated 40g silicone rubber on each side, so the total weight is 430g+40g+40g after coating.



This kind of fiberglass cloth wovened by 4HS Four-harness satin(crowfoot)

The four-harness satin is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.In this weave patter there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.

The unique advantages of these electrical grade glass fibers include:



1.Low smoke and flame retardant

2.Excellent thermal properties at continuous operating temperatures up to 260℃

3.Highly uniform thermal insulation properties

4.Outstanding chemical resistant

5.Durable, abrasion resistant

6.Excellent release resistance

7.ISO9001,ISO2008,SGS,TUV certified

8.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time. No warping, expansion





Data Sheet:

          Items Silicone Coated Fiberglass Fabric
          Yarn G75 1/0 0.7Z / G75 1/0 0.7Z
          Type E-glass
        Coating Silicone rubber
         Weight 430+40+40 g/m2
       Thickness 0.45mm
         Width 1m,1.2m,1.5m
       Roll length 50m
     Temperature

Fiberglass Cloth ≤ 550℃

Coating ≤ 300℃







Application:



1.Anti-corrosion: Silicone-coated glass fiber cloth can be used as a pipeline, saving internal and external anti-corrosion layer, excellent anti-corrosion performance and high strength, and it is an ideal anti-corrosion material.



2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.



3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



4.Temperature resistance:Can be made into fire blanket, fire curtain, temperature resistant flame retardant material



5.Electrical insulation: Silicone cloth has a high electrical insulation grade, can withstand high voltage load, and can be made into insulation cloth, casing and other products.

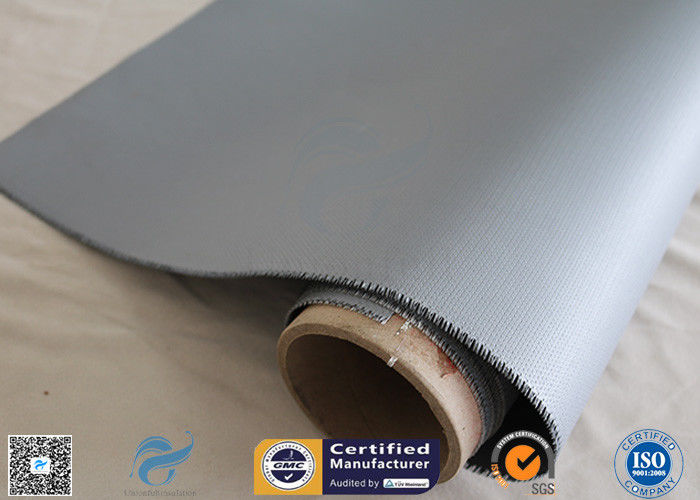

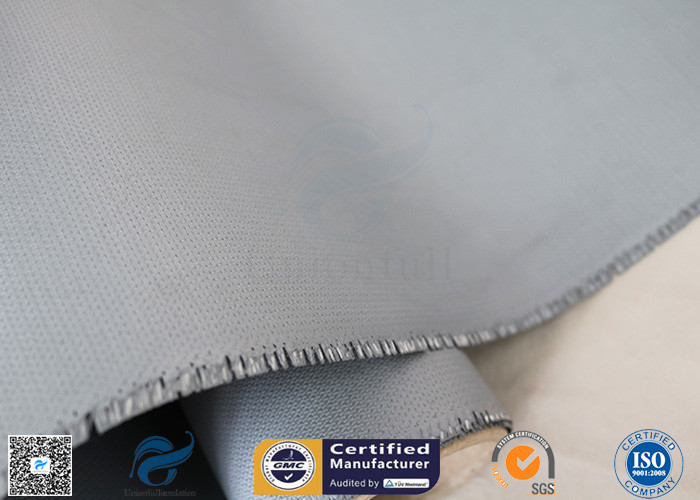

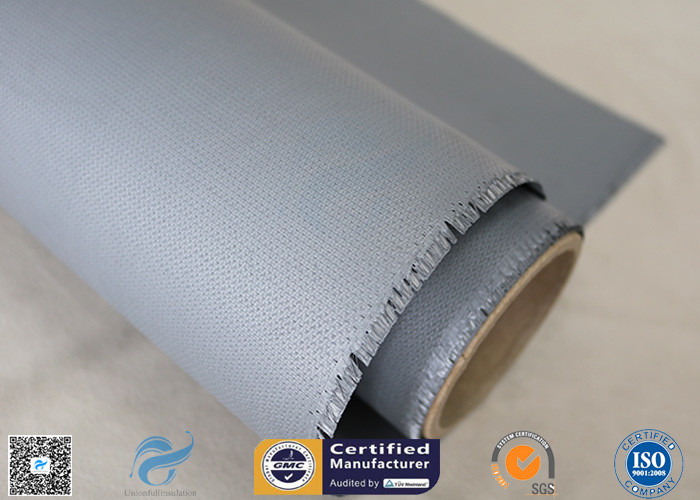

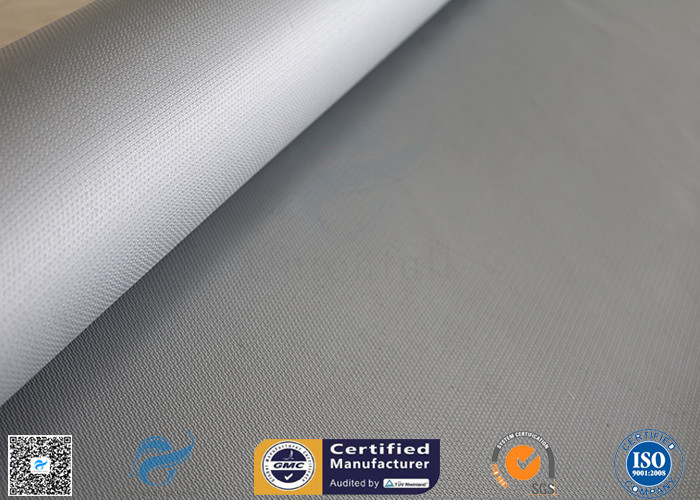

Pictures:

Electrical Insulation 40/40g 1.2m Width 260℃ Silicone Coated Fiberglass FabricElectrical Insulation 40/40g 1.2m Width 260℃ Silicone Coated Fiberglass Fabric
