Welding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric

China Welding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric supplier
Welding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric supplier Welding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric supplier Welding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric supplier Welding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric supplier Welding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric supplier

Large Image :  Welding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray

Welding Curtain/Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric



Unionfull's Silicone coated fiberglass fabric present outstanding dimensional stability as well as superior thermal resistance. The silicone coating extend life of the fiberglass fabric, and it provides greater oil & water resistance than uncoated fiberglass fabric ,meanwhile it is capable of low smoke and flame retardation.



UPSE-8732D80 is double sided coating fabric, each side coated with 40g silicone rubber. As the basic weight is 430g/m2, so the total weight is 510g/m2 after coating.



This kind of fabric can be used for makeing fire blanket, welding curtain, since it absorbs a large amount of heat when it is burned by a flame and prevents the flame from passing through and isolating the air.









Data:

          Items Silicone Coated Fiberglass Fabric
          Yarn G75 1/0 0.7Z / G75 1/0 0.7Z
          Type E-glass
        Coating Silicone rubber
         Weight 430+40+40 g/m2
       Thickness 0.45mm
         Width 1m,1.2m,1.5m
       Roll length 50m
     Temperature

Fiberglass Cloth ≤ 550℃

Coating ≤ 300℃





Properties:



1.Oil resistant, waterproof



2.Electrical insulation



3.Chemical resistant



4.Non-flammable

It is inorganic fibers, the fire-retardant grade meets the IMO standard



5.Non-adhesive, not easy to adhere to any substance.



6.Outstanding weather ability





Application:



1.Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.





2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.



3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



4.In the transportation industry, buses, yachts, tankers, cars, etc. are used.



5.Application in filtration: gas filtration and liquid filtration







Pictures:

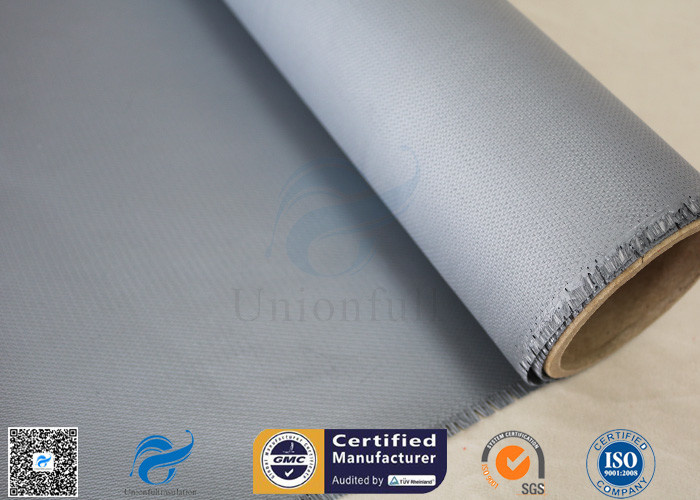

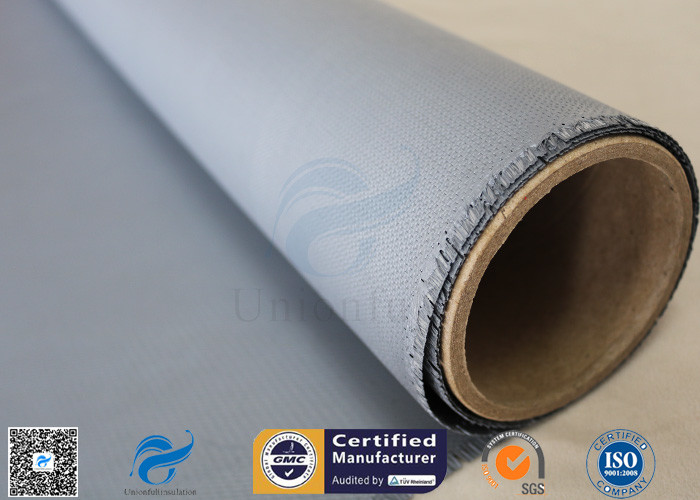

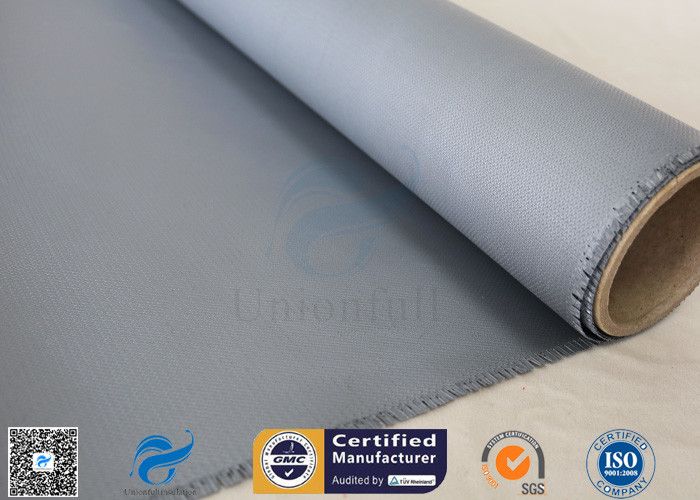

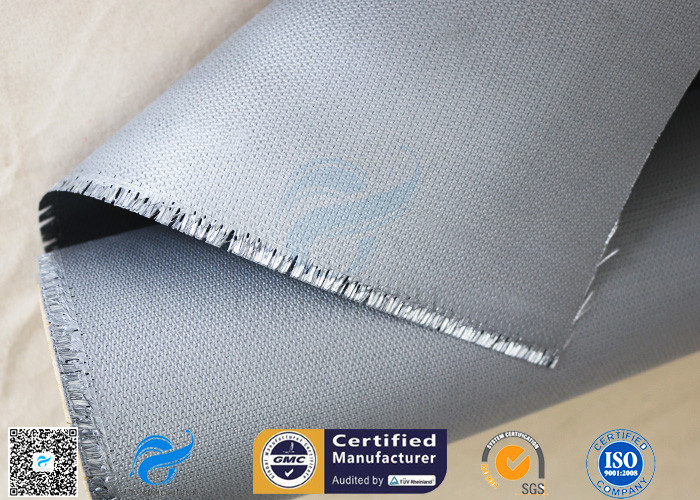

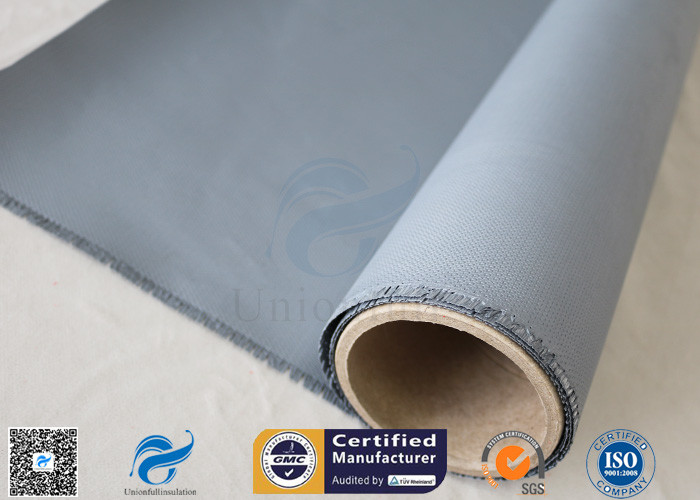

Welding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass FabricWelding Curtain / Fire Blanket 510g Gray Color 0.45mm Silicone Coated Fiberglass Fabric
