High Intensity 0.45mm 260℃ High Temp Resistant Silicone Coated Fiberglass Fabric

China High Intensity 0.45mm 260℃ High Temp Resistant Silicone Coated Fiberglass Fabric supplier
High Intensity 0.45mm 260℃ High Temp Resistant Silicone Coated Fiberglass Fabric supplier High Intensity 0.45mm 260℃ High Temp Resistant Silicone Coated Fiberglass Fabric supplier High Intensity 0.45mm 260℃ High Temp Resistant Silicone Coated Fiberglass Fabric supplier High Intensity 0.45mm 260℃ High Temp Resistant Silicone Coated Fiberglass Fabric supplier

Large Image :  High Intensity 0.45mm 260℃ High Temp Resistant Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSC-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd1.8~2.9/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: C-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Black

High Intensity 0.45mm 260℃ High Temp. Resistant Silicone Coated Fiberglass Fabric



As the silicone coated fiberglass fabric has unique high temperature resistance and outstanding chemical resistance, it has been widely used in industries like large-scale power generation equipment, fire prevention, aerospace, chemical, thermal insulation, and other fields.



Product Descriptions:

Type: C-glass

Coating: Black Silicone Rubber

Thickness: 0.45mm

Coating Sides: 2

Weight: 510g+40g+40g

Width: 1m

Length: 50m per roll

Temperature: from -70℃ to 260℃

Weave: Satin Weave

Feature: Chemical resistance, High strength, Fire retardant



Data:

                                                                   Main Specifications
      Code

Weight

(g/m2)

Thickness

(mm)

  Width(m)          Color Coating sides
UPSE-8732S40 470 0.45 1/1.2/1.5    grey,red,white             1
UPSE-8732D80 510 0.45 1/1.2/1.5    grey,red,white             2
UPSE-8732S80 510 0.45 1/1.2/1.5    grey,red,white             1
UPSE-8732D160 590 0.45 1/1.2/1.5    grey,red,white             2
UPSE-8784D80 930 0.8 1/1.5    grey,red,white             2
UPSE-8784D160 1010 1.00 1/1.5    grey,red,white             2





Properties:



1.Excellent thermal properties at continuous operating temperatures up to 260℃



2.Antibacterial, moisture proof
The fabric is a natural mineral, does not provide a bacterial growth environment, bacteria can not breed, the fabric will not mold.



3.High softness, good adhesion and no chipping

Non-flammable

It is inorganic fibers, the fire-retardant grade meets the IMO standard



4.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.



5.Fire prevention
The real fiberglass fabric, after the fire, because the inner skeleton of the fabric is glass fiber, it will not be deformed and will not be charred.



6.Outstanding weather ability





Application:



1.Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.





2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.



3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



4.In the transportation industry, buses, yachts, tankers, cars, etc. are used.



5.Application in filtration: gas filtration and liquid filtration

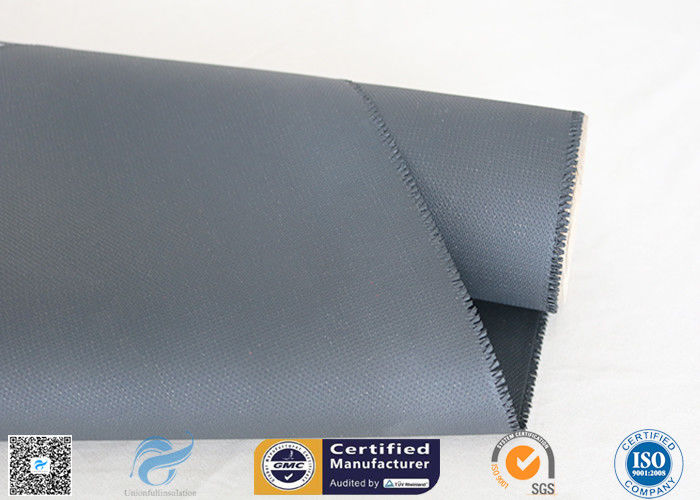

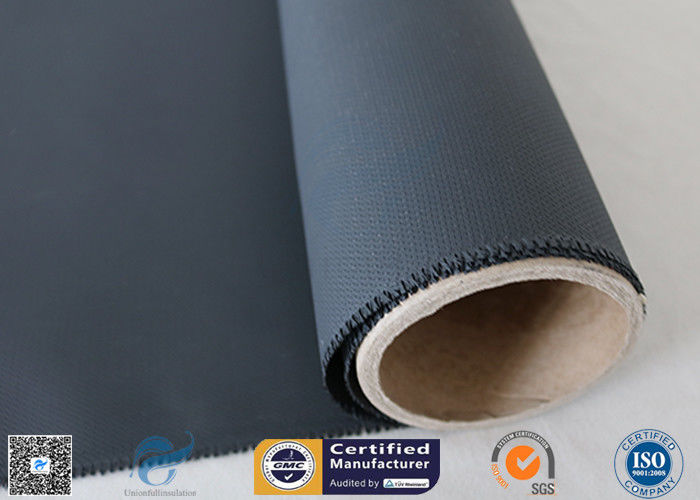

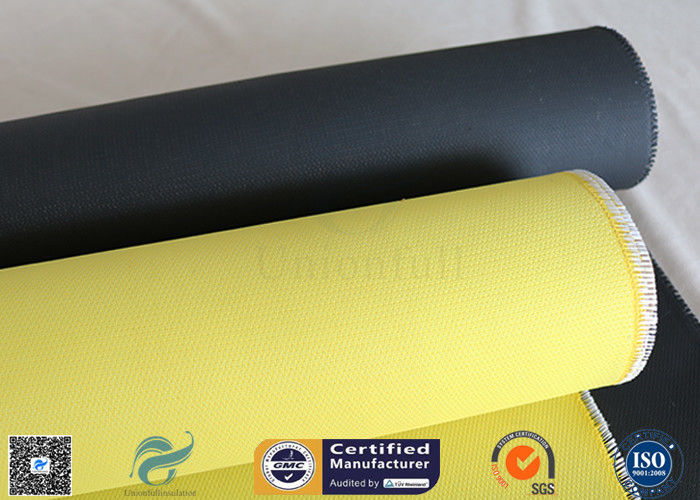

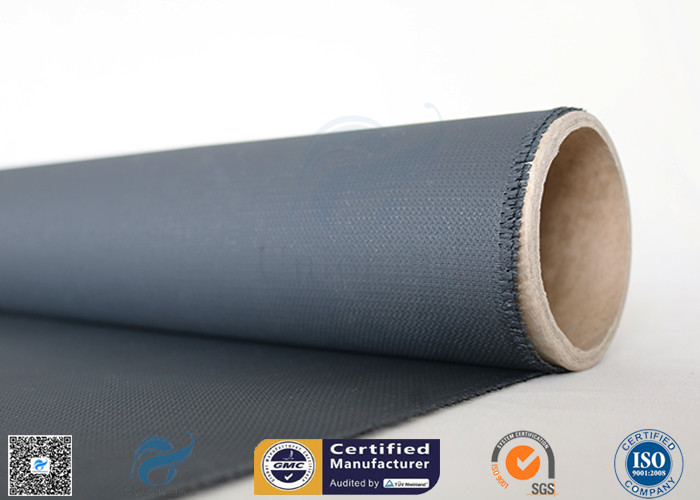

Pictures:

High Intensity 0.45mm 260℃ High Temp Resistant Silicone Coated Fiberglass FabricHigh Intensity 0.45mm 260℃ High Temp Resistant Silicone Coated Fiberglass Fabric
