1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long

1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long
1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSC-8732D80
Minimum Order Quantity: 500m2
Price: usd1.8~2.9/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Get Best Price Contact Now
Material: Silicone Coating Coating Sides: 2
Type: C-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Black
Highlight:

silicone coated glass cloth

,

silicone coated fiberglass cloth

1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long



Silicone cloth is distinguished by different alkali metal oxide contents and can be divided into:E-glass, C-glass, S-glass.



Medium alkali fiber,also know as C-glass: R2O content is 11.9%-16.4%. It is a kind of soda-calcium silicate component. Because of its high alkali content, it can not be used as electrical insulating material, but its chemical stability and strength are still good. Generally used as latex cloth, woven fabric substrate, acid filter cloth, window material substrate, and the like.





Data:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSC-8732D80
Material

Fabric:100% C-glass fiber

Pattern:Silicone Coated

Structure:3 layers--Silicone+Glass fiber+Silicone
Weight(g/m2) 510g/m2 (430g+40g+40g)
Width 1000mm
Thickness 0.45mm
Color Black
MOQ 500m2
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Temperature Fiberglass cloth ≤ 550℃

Silicone coating ≤ 260℃
Flammable ≤25%



                                                                   Main Specifications
      Code

Weight

(g/m2)

Thickness

(mm)

   Width(m)          Color Coating sides
UPSE-8732S40 470 0.45 1/1.2/1.5    grey,red,white             1
UPSE-8732D80 510 0.45 1/1.2/1.5    grey,red,white             2
UPSE-8732S80 510 0.45 1/1.2/1.5    grey,red,white             1
UPSE-8732D160 590 0.45 1/1.2/1.5    grey,red,white             2
UPSE-8784D80 930 0.8 1/1.5    grey,red,white             2
UPSE-8784D160 1010 1.00 1/1.5    grey,red,white             2





Properties:

  • Outstanding heating insulation
  • Good chemical resistance
  • Superior abrasion resistance
  • Superior Release Non-stick surface

  • High strength,has good mechanical properties

  • With high insulation properties, UV protection, anti-static.

  • Low friction coefficient is the best choice for oil-free self-lubrication.

  • Non-flammable



Application:



1.In the construction industry, glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.



2.Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.



3.Electrical insulation

Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.



4.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.



5.Application in filtration: gas filtration and liquid filtration





Pictures:

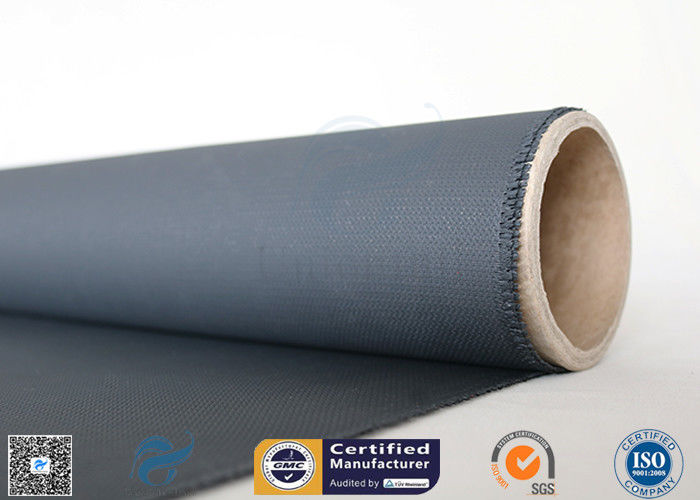

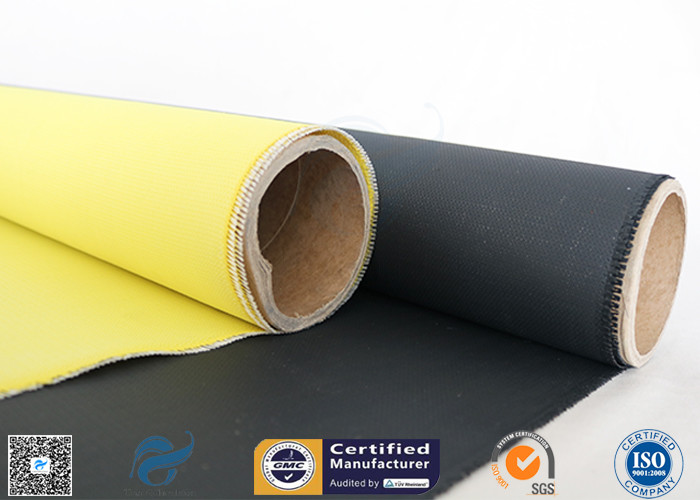

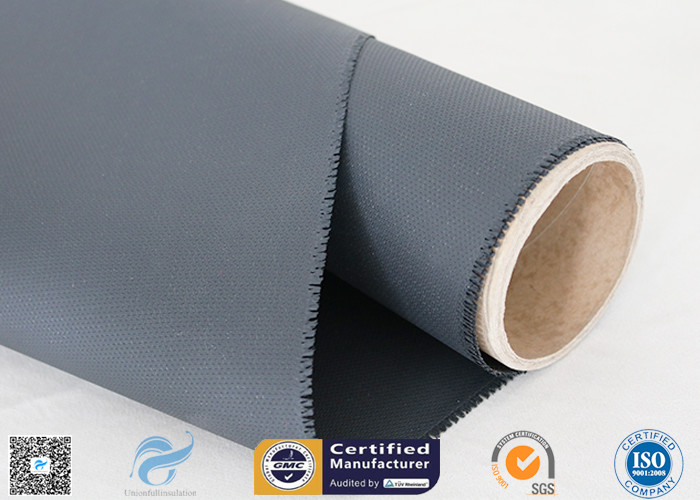

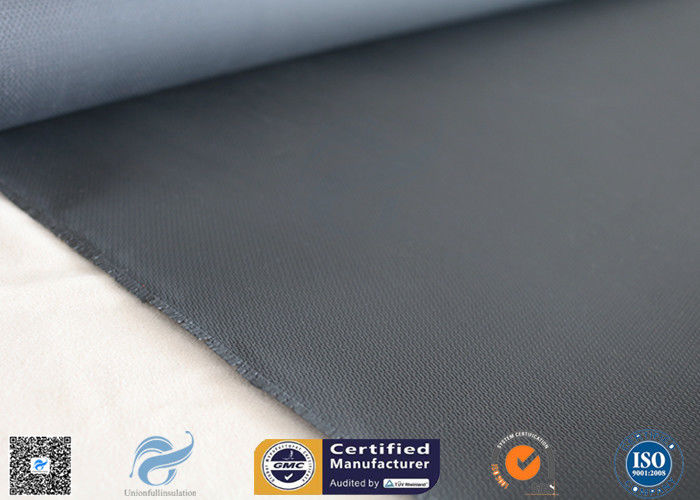

1m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 01m Wide 510g Black Silicone Coated Fiberglass Fabric Heat Insulation 50m Long 1
