C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof

C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof
C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSC-8732D80
Minimum Order Quantity: 500m2
Price: usd1.8~2.9/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Get Best Price Contact Now
Material: Silicone Coating Coating Sides: 2
Type: C-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red
Highlight:

silicone coated glass cloth

,

silicone coated glass fabric

C-glass Double -sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof



Medium alkali fiber(C-glass): R2O content is 11.9%-16.4%. It is a kind of soda-calcium silicate component. Because of its high alkali content, it can not be used as electrical insulating material, but its chemical stability and strength are still good. Generally used as latex cloth, woven fabric substrate, acid filter cloth, window material substrate, and the like.





Descriptions:



.Type: C-glass

.Thickness: 0.45mm

.Coating: Silicone Rubber

.Coating Sides: Double-sides

.Total Weight: 510g/m2

.Width: 1.5m

.Temperature : Fiberglass cloth ≤ 550℃

                        Silicone coating ≤ 260℃

.Color: Red





Data:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSC-8732D80
Material

Fabric:100% E-glass fiber

Pattern:Silicone Coated

Structure:3 layers--Silicone+Glass fiber+Silicone
Weight(g/m2) 510g/m2 (430g+40g+40g)
Width 1500mm
Thickness 0.45mm
Color Red
MOQ 500m2
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170



                                                                   Main Specifications
      Code

Weight

(g/m2)

Thickness

(mm)

   Width(m)          Color Coating sides
UPSE-8732S40 470 0.45 1/1.2/1.5    grey,red,white             1
UPSE-8732D80 510 0.45 1/1.2/1.5    grey,red,white             2
UPSE-8732S80 510 0.45 1/1.2/1.5    grey,red,white             1
UPSE-8732D160 590 0.45 1/1.2/1.5    grey,red,white             2
UPSE-8784D80 930 0.8 1/1.5    grey,red,white             2
UPSE-8784D160 1010 1.00 1/1.5    grey,red,white             2





Properties:

  • Outstanding heating insulation
  • Good chemical resistance
  • Excellent dielectric properties
  • Good weather ability
  • Excellent release properties
  • Superior abrasion resistance
  • Superior Release Non-stick surface



Application:



1.In the construction industry, glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.



2.Because silicone cloth has fireproof effect, it is also called fireproof cloth. It has high temperature and fireproof effect and is widely used in high temperature soft connection.



3.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.



4.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.





Pictures:

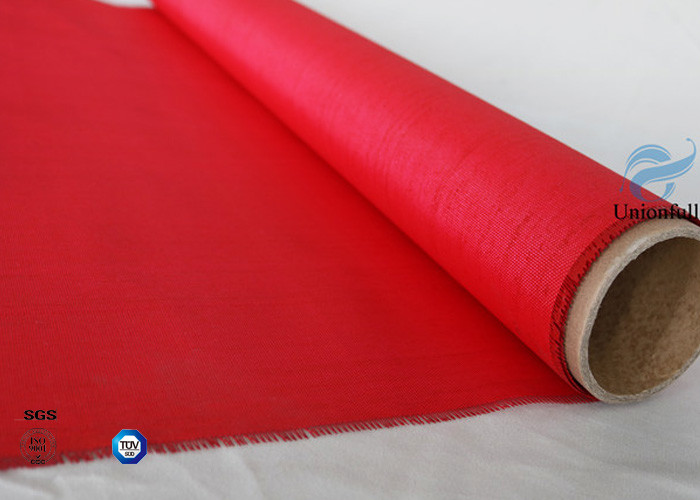

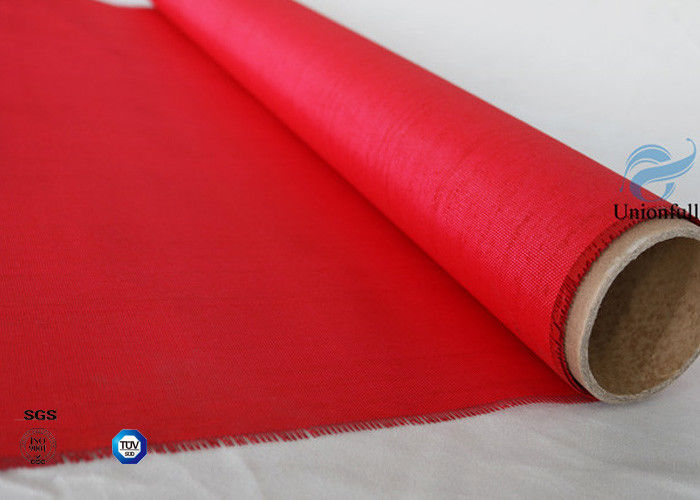

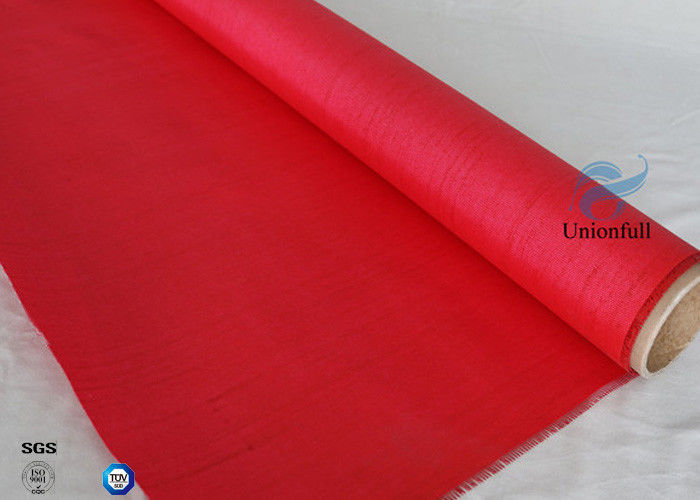

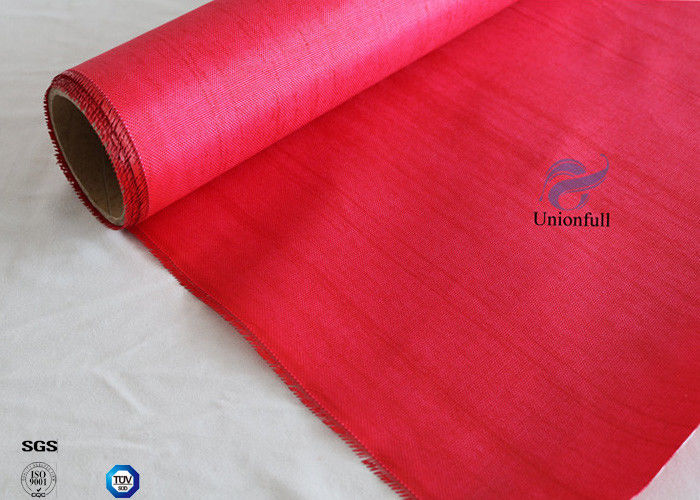

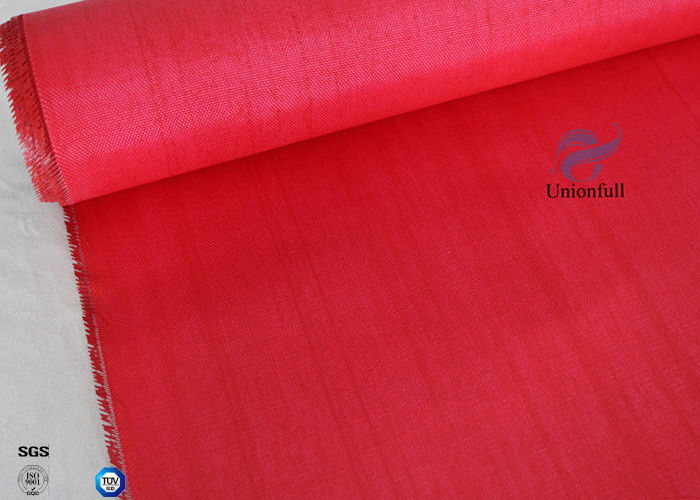

C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof 0C - Glass Double Sides 40/40g 0.45mm Red Silicone Coated Fiberglass Fabric Waterproof 1





Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd













Tag:

silicone coated fiberglass cloth,

silicone coated glass cloth,

silicone coated glass fabric
