Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm

China Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm supplier
Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm supplier Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm supplier Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm supplier Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm supplier

Large Image :  Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D160

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 1
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 590g/m2
Basic Weight: 430g/m2 Color: Gray

Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm



Silicone coating is durable and abrasion resistant to withstand the high temperatures heat. It adds extended life, while providing greater oil and water resistance than uncoated fabrics as well as electrical insulation. Working temperature of this coated fiberglass fabric is -70~260℃. Fiberglass fabric is able to resist 550℃ heat. It is a pefect material for thermal insulation applications.





Properties:



1.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time



2.Non-adhesive, not easy to adhere to any substance.



3.High softness, good adhesion and no chipping



4.Fire prevention

The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



5.Outstanding thermal conductivity to meet various heat dissipation requirements



6.Shade, light, ventilation
This fabric eliminates up to 80% of solar radiation, maintains indoor air circulation, and provides a clear view of the outdoor scene.



7.High Temperature Resistance

Can withstand of high temperature 260℃, low temperature -70℃





Descriptions:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSE-8732D160
Material

Fabric:100% E-glass fiber

Pattern:Silicone Coated

Structure:3 layers--Silicone+Glass fiber+Silicone

Weight(g/m2) 590g/m2 (430g+80g+80g)
Width 1500mm
Thickness 0.45mm
Color Gray
Length 50m/roll
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Temperature Fiberglass cloth ≤ 550℃

Silicone coating ≤ 260℃



Data:

                                                                    Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2



Main Applications:



1.Electrical insulation

Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.



2.Silicone coated fiberglass fabric is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



3.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.



4.Silicone coated glass fiber is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



5. Apart from above application, silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.

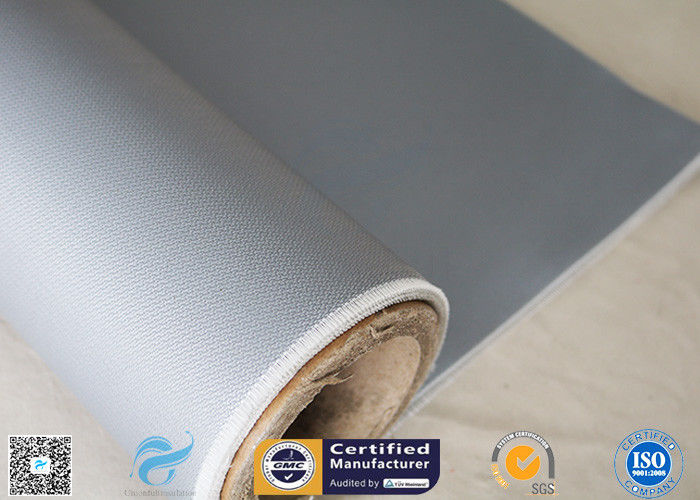

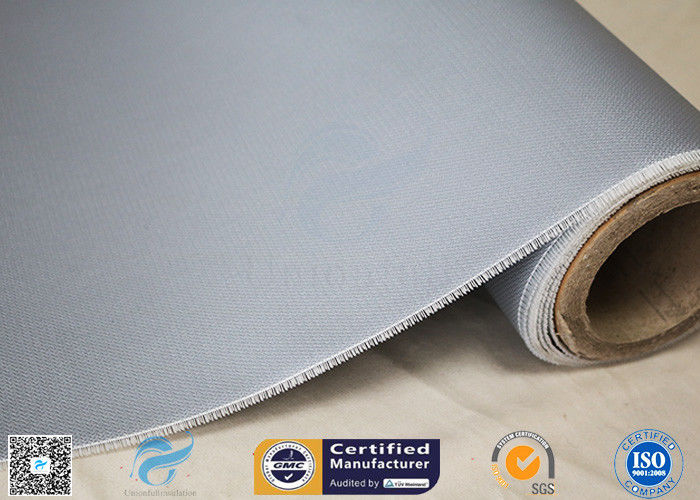

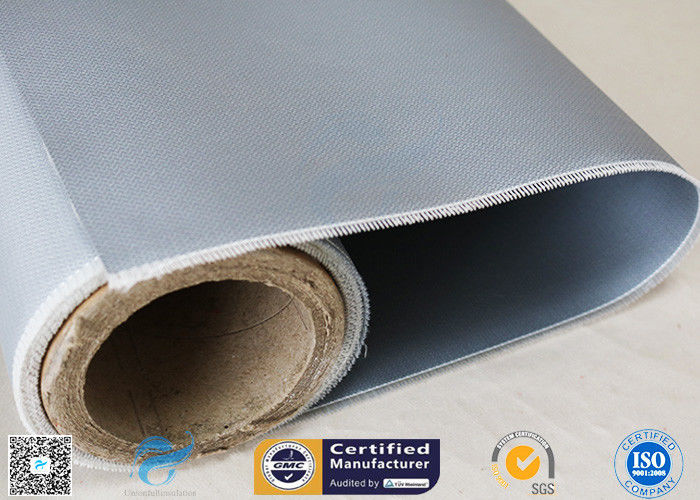

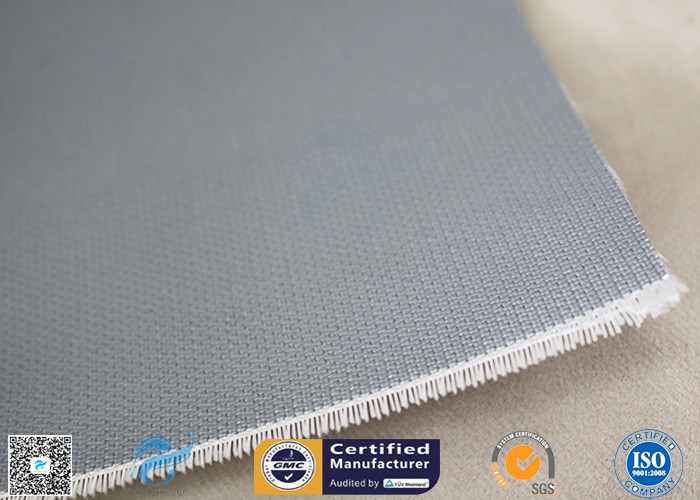

Pictures:



Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mmWelding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm
