Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric

China Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric supplier
Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric supplier Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric supplier Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric supplier Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric supplier

Large Image :  Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D160

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 1
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 590g/m2
Basic Weight: 430g/m2 Color: Gray

Thermal Insulation 260℃ High Temp.Resist 20.8oz Silicone Coated Fiberglass Fabric



UnionfullTM's Silicone coated fiberglass fabric is made from woven fiberglass fabric and then coated with silicone/rubber. Fiberglass fabric is a light weight material which has moderate tensile and compressive strength. This cloth has been used in many industrial fields.



Properties:

1.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time



2.Non-flammable



3.Fire prevention

The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



4.Low friction coefficient is the best choice for oil-free self-lubrication.



5.Anti-ripper
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.



6.With high insulation properties, UV protection, anti-static.







Descriptions:



Item Name Silicone Coated Fiberglass Fabric
Products Code UPSE-8732D160
Material

Fabric:100% E-glass fiber

Pattern:Silicone Coated

Structure:3 layers--Silicone+Glass fiber+Silicone

Weight(g/m2) 590g/m2 (430g+80g+80g)
Width 1500mm
Thickness 0.45mm
Color Gray
Length 50m/roll
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Temperature Fiberglass cloth ≤ 550℃

Silicone coating ≤ 260℃



Data:

                                                                    Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white            1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white            1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white            2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white            1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white            2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white            2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white            2





Main Applications:

1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



2.Construction: Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.



3.Silicone coated fiberglass fabric is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



4.It is a fantasy protection thing for the public security fire safety key unit. When it is used for construction in public places such as large shopping malls, supermarkets, hotels, etc., such as welding, cutting, etc.: using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk

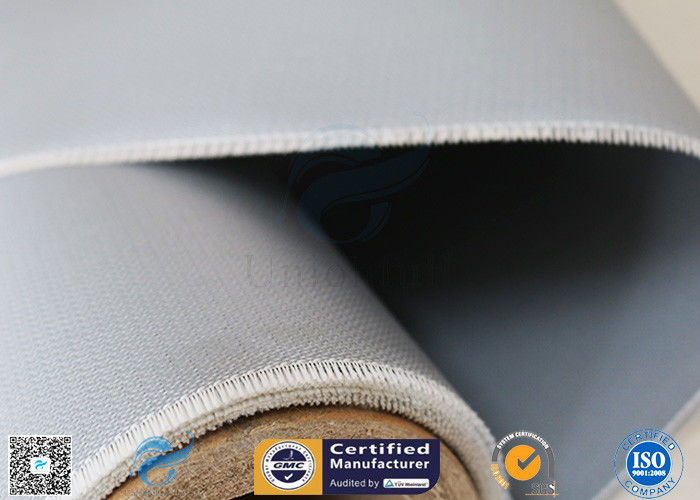

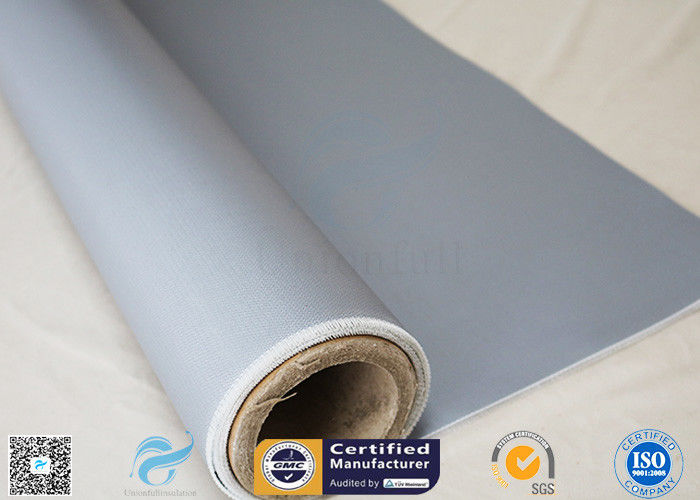

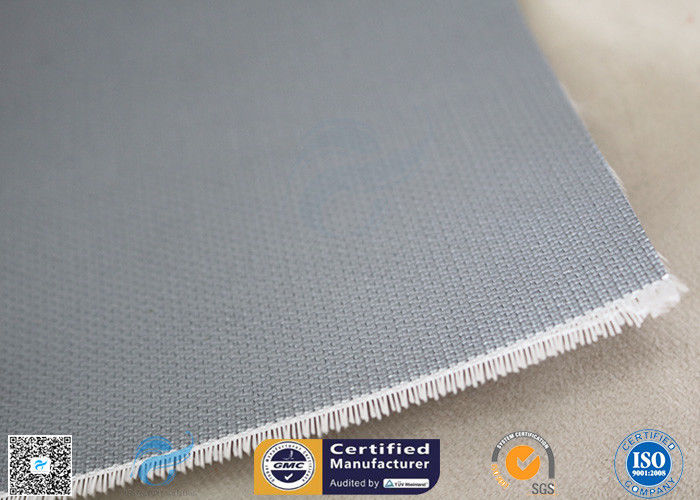

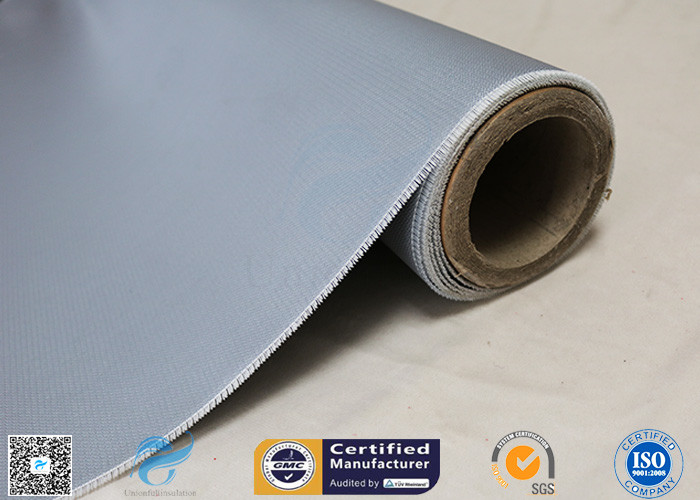

Pictures:

Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass FabricThermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric
