Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001,ISO2008,SGS,TUV |
Model Number: | UPSE-8732D160 |
Minimum Order Quantity: | 500m2 |
Price: | usd2.5~3.8/m2 |
Packaging Details: | 50 meters per roll, 20 rolls one pallet |
Delivery Time: | 15days after receive the payment |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 100000m2/Month |
Material: | Silicone Coating | Coating Sides: | 1 |
---|---|---|---|
Type: | E-Glass | Weave: | Satin 4SH |
Thickness: | 0.45mm | Width: | 1/1.2/1.5m |
Roll Length: | 50m | Total Weigth: | 590g/m2 |
Basic Weight: | 430g/m2 | Color: | Gray |
High Light: | silicone coated fiberglass cloth,silicone coated glass fabric |
590g Satin Weave Anti-corrosion 0.45mm E-glass Silicone Coated Fiberglass Fabric
Fiberglass fabric is ideal cloth that are used in demanding temperature applications throughout industrial insulation market. They are easy to fabricate and remains flexible after high temperature exposure and provides excellent protection from molten metal splash. Silicone coated fiberglass fabric has a lot of applications ranging from welding to metal cutting applications.
Details of the fabric UPSE-8732D160 :
Material: Fabric:100% E-glass fiber
Coating:Silicone Rubber
Structure:3 layers--Silicone+Glass fiber+Silicone
Coating side: double -sides
Coating Weight: 80g+80g
Total Weight: 590g
Length: 50m/roll
Width: 1m
Flammable: ≤25%
Temperature: Fiberglass cloth ≤ 550℃
Silicone coating ≤ 260℃
Type: E-glass(Alkali free)
Feature: High Temp. resist, Chemical resistant, Electrical resistance, Fireproof
Properties:
1.High and low temperature resistance:
high temperature resistance 280 ° C, low temperature resistance minus 70 ° C
2.Excellent electrical insulation to meet various electrical insulation requirements
3.Low friction coefficient is the best choice for oil-free self-lubrication.
4.Outstanding thermal conductivity to meet various heat dissipation requirements
5.Good insulation
With high insulation properties, UV protection, anti-static.
6.high strength.
Has good mechanical properties
7.High softness, good adhesion and no chipping
Main Applications:
1.Temperature resistance: as fire blanket, fire curtain, temperature resistant flame retardant material
2.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.
3.Silicone coated glass fiber is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
4.Construction: Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
5. Other fields: Silicone rubber coated glass fiber membrane structural materials can be applied to building sealing materials, high temperature anticorrosive conveyor belts, packaging materials and other fields.
Data:
Main Specifications | |||||
Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
UPSE-8732S40 | 480 | 0.43 | 1/1.2/1.5 | grey,red,white | 1 |
UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
UPSE-8784D200 | 1050 | 1.00 | 1/1.5 | grey,red,white | 2 |

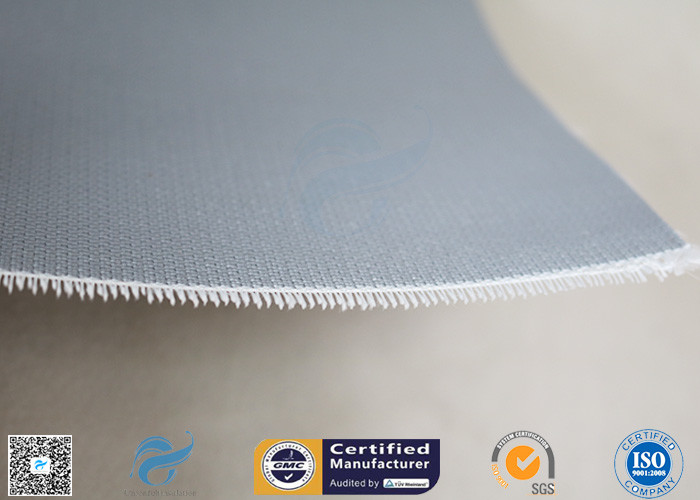

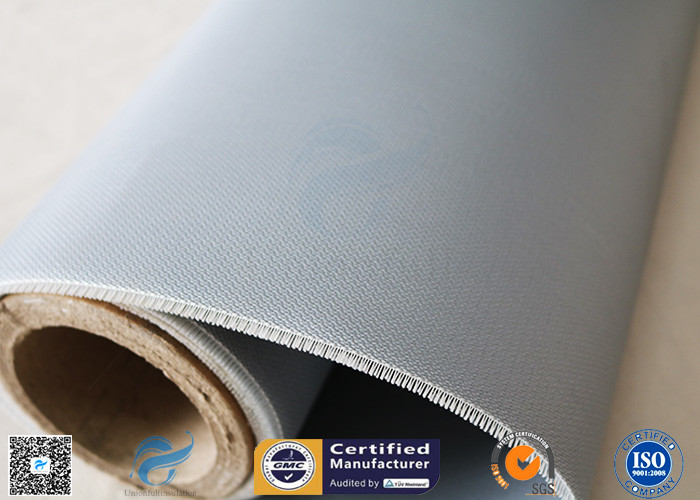

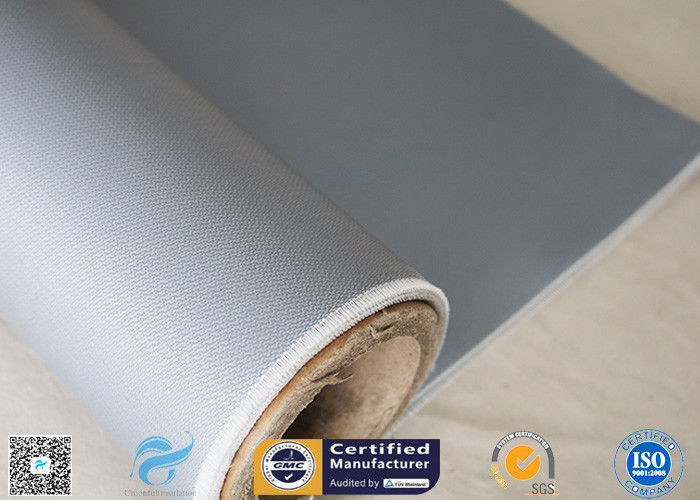

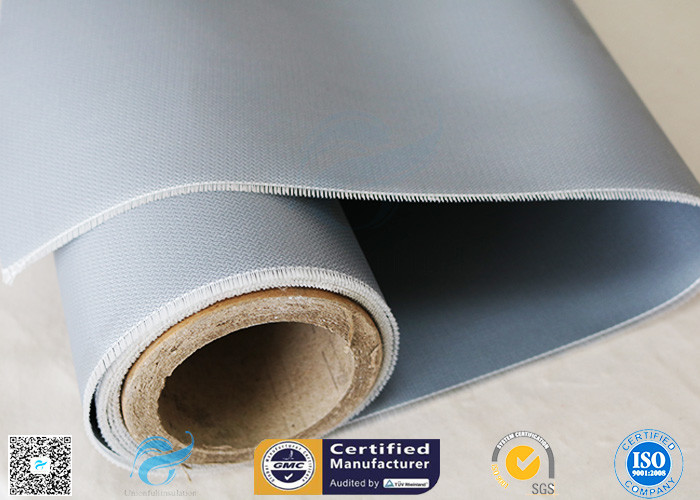

Pictures:
