E - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray

China E - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray supplier
E - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray supplier E - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray supplier E - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray supplier E - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray supplier

Large Image :  E - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D160

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 1
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 590g/m2
Basic Weight: 430g/m2 Color: Gray

E-glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray





The products are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated with silicone rubber, which is a brand new product with good performance and multiple applications. On request, one side or both sides silicone coated products are both available, customers color available.



UPSE-8732D160 has the following features:



Material:  Fabric:100% E-glass fiber

                Coating:Silicone Rubber

                Structure:3 layers--Silicone+Glass fiber+Silicone

Coating side: Two sides

Coating Weight: 80g+80g

Total Weight: 590g

Length: 50m/roll

Width: 1m

Flammable: ≤25%

Temperature: Fiberglass cloth ≤ 550℃

                      Silicone coating ≤ 260℃

Type: E-glass(Alkali free)

Feature: High Temp. resist, Chemical resistant, Electrical resistant, Fireproof



Properties:

1.Excellent electrical insulation to meet various electrical insulation requirements

2.Flame retardant performance: non-flammable

3.High temperature up to 260℃

4.Excellent release properties

5.Outstanding thermal conductivity to meet various heat dissipation requirements

6.Good insulation

With high insulation properties, UV protection, anti-static.

7.resistant to ozone, sample, light and weather aging, excellent weather ability in the field, life service up to 10 years.



Main Applications:

1.Silicone coated fiberglass fabric is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



2.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.



3.Silicone coated glass fiber is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



4.Temperature resistance: as fire blanket, fire curtain, temperature resistant flame retardant material



5. Other fields: Silicone rubber coated glass fiber membrane structural materials can be applied to building sealing materials, high temperature anticorrosive conveyor belts, packaging materials and other fields.



Data:

                                                                    Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2

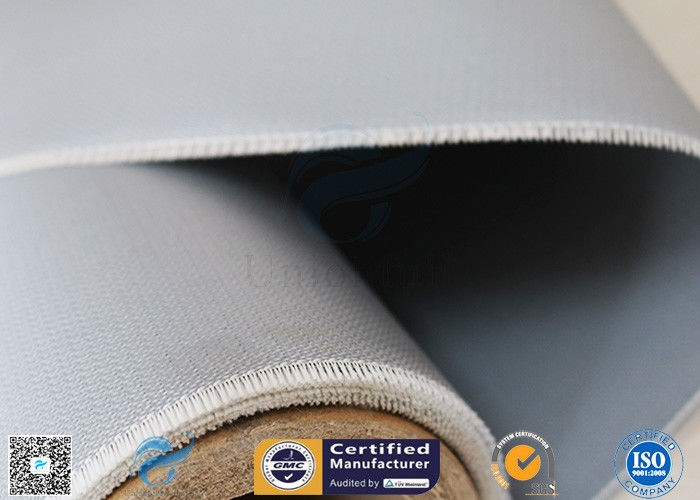

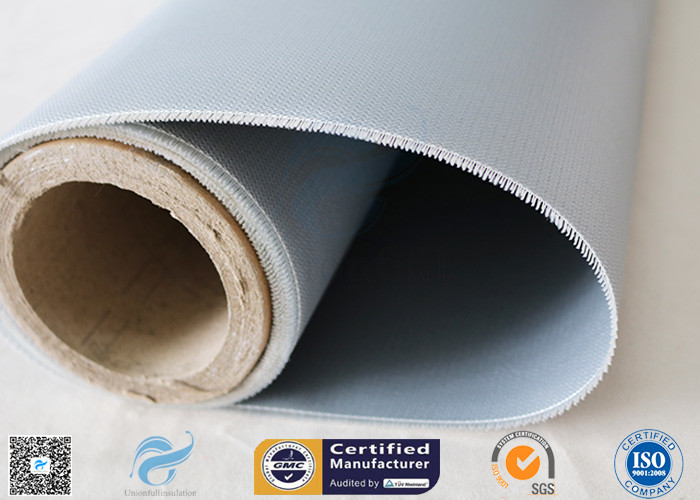

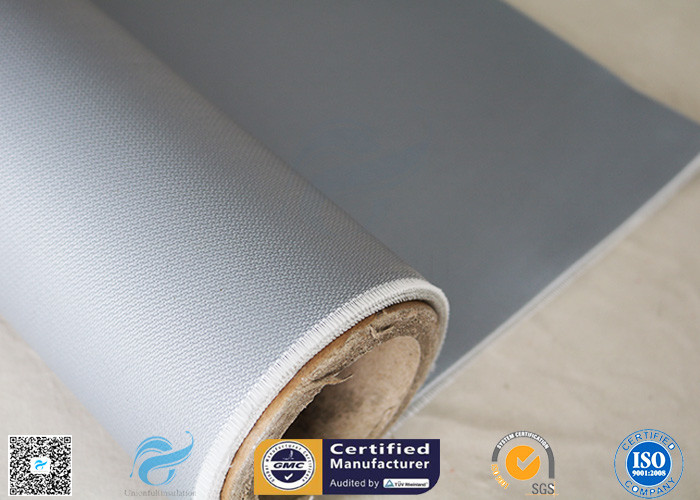

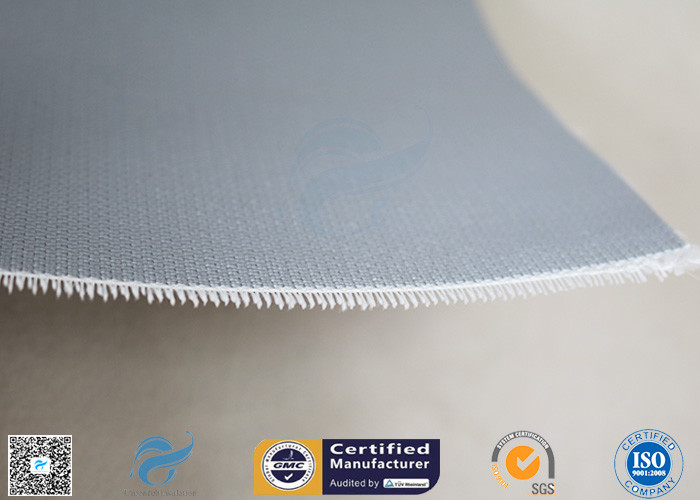

Pictures:

E - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric GrayE - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray
