Waterproof 40/40g 18oz 0.45mm Silicone Coated Fiberglass Fabric 260℃ Gray Color

China Waterproof 40/40g 18oz 0.45mm Silicone Coated Fiberglass Fabric 260℃ Gray Color supplier
Waterproof 40/40g 18oz 0.45mm Silicone Coated Fiberglass Fabric 260℃ Gray Color supplier Waterproof 40/40g 18oz 0.45mm Silicone Coated Fiberglass Fabric 260℃ Gray Color supplier Waterproof 40/40g 18oz 0.45mm Silicone Coated Fiberglass Fabric 260℃ Gray Color supplier Waterproof 40/40g 18oz 0.45mm Silicone Coated Fiberglass Fabric 260℃ Gray Color supplier

Large Image :  Waterproof 40/40g 18oz 0.45mm Silicone Coated Fiberglass Fabric 260℃ Gray Color

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 1
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red

Fireproof/Waterproof 40/40g Double-sided Silicone Coated Fiberglass Fabric 260℃





Silicone coated fiberglass fabrics:

Silicone cloth is a high-performance, multi-purpose composite material that is made of high-temperature, corrosion-resistant, high-strength glass fiber cloth, which is calendered or impregnated with silicone rubber.

It is an ideal material for welding blanket, fireproof curtain, thermal insulation covers.





UPSE-8732D80 has the following features:



Material:  Fabric:100% E-glass fiber

                Coating:Silicone Rubber

                Structure:3 layers--Silicone+Glass fiber+Silicone

Coating side: Two sides

Coating Weight: 40g+40g

Total Weight: 510g

Length: 50m/roll

Width: 1m

Flammable: ≤25%

Temperature: Fiberglass cloth ≤ 550℃

                      Silicone coating ≤ 260℃

Type: E-glass(Alkali free)

Feature: High Temp. resist, Chemical resistant, Fire Protection,Waterproof



Properties:



1.Flame retardant performance: non-flammable

2.High temp resistant

Can as good as before under the temperature -70 ℃ to 260℃,

3.Excellent release properties

4.Non-stick,easy to wash

5.resistant to ozone, sample, light and weather aging, excellent weather ability in the field, life service up to 10 years.

6.High softness, good adhesion and no chipping

7.Good insulation

With high insulation properties, UV protection, anti-static.







Main Applications:



1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



2.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



3.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.



4.Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.





Data:



                                                                    Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2

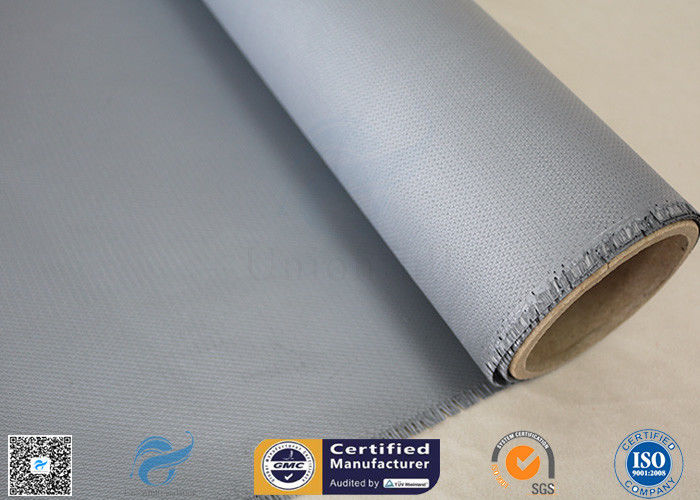

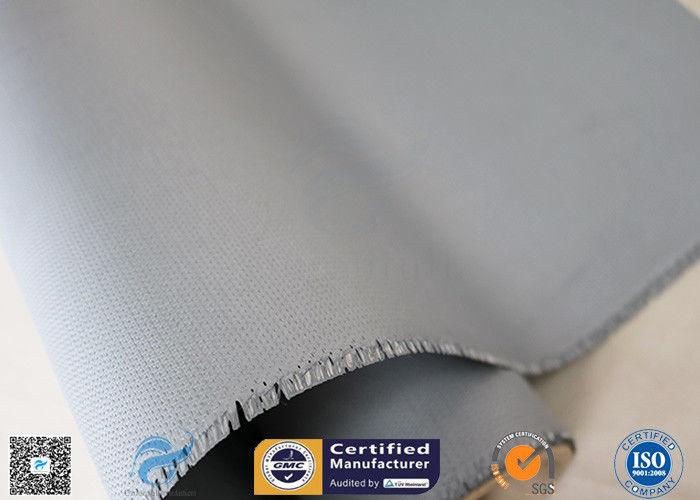

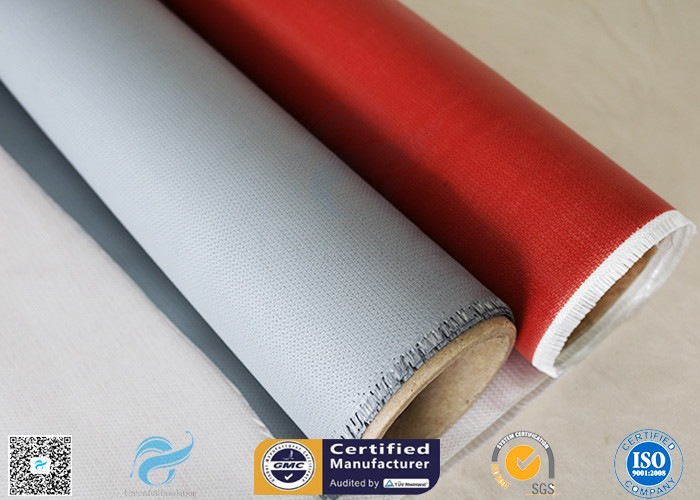

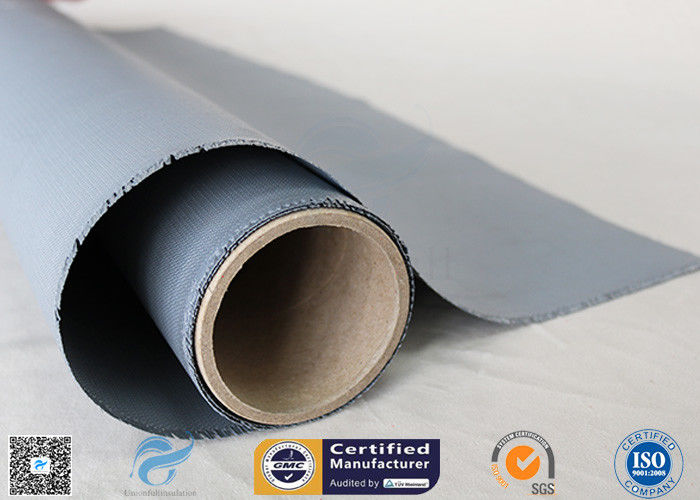

Pictures:

Waterproof 40/40g 18oz 0.45mm Silicone Coated Fiberglass Fabric 260℃ Gray ColorWaterproof 40/40g 18oz 0.45mm Silicone Coated Fiberglass Fabric 260℃ Gray Color
