Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion

China Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion supplier
Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion supplier Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion supplier Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion supplier Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion supplier Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion supplier Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion supplier

Large Image :  Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.5/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 1
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red

Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti-corrosion



Silicone coated fiberglass fabrics:

Silicone coated cloth from Unionfull offers excellent resistance to extreme environment especially the high temperature. It can withstand of the low temperature -70℃ and high temperature 260℃. As an ideal industry material, it also has excellent properties such as flame retardant, chemical resistant, high strength, waterproof etc.



Reagarding Unionfull Group Ltd:

Unionfull Group Ltd is a quality environment friendly (ISO - 9001 & 2008) modern, hi-tech enterprise specialized in manufacturing of Thermal Materials and Heat Resistant Materials. We also approved by SGS,TUV, IMO testing.



All of our products can be customized, such as width, color, coating weight, material, just for different applications.



UPSE-8732D80 meets the following requirements:



Material:  Fabric:100% E-glass fiber

                Pattern:Silicone Rubber Coated

Coating side: Single-side

Coating Weight: 80g

Total Weight: 510g

Length: 50m/roll

Width: 1.5m

Flammable: ≤25%

Temperature: Fiberglass cloth ≤ 550℃

                      Silicone coating ≤ 260℃

Type: E-glass(Alkali free)

Feature: High Temp. resist, Chemical resistant, Fire Protection



Properties:

1.High temp resistant up to 260℃

2.Excellent release properties

3.Low friction coefficient is the best choice for oil-free self-lubrication.

4.Anti-corrosion

5.High Intensity,has good mechanical properties

6.Low thermal conductivity,0.035W/M·K—0.045 W/M·K±0.005(room temperature)

7.Good insulation

With high insulation properties, UV protection, anti-static.



Main Applications:

1.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.



2.Daily life

Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life are also used.



3.Construction

Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.



4.Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.



Data:

                                                                    Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2

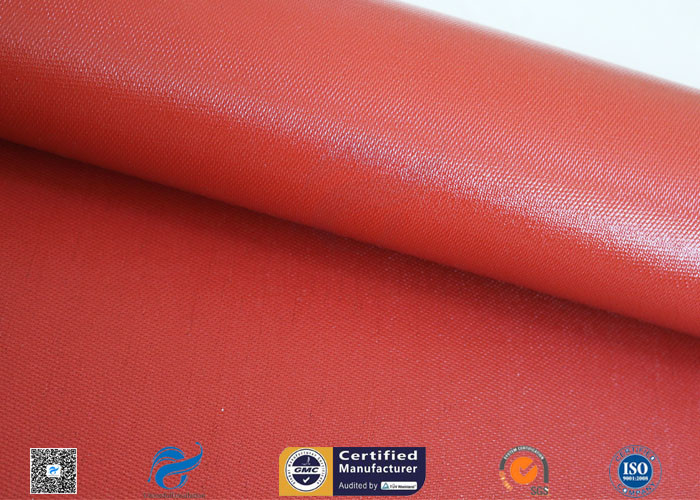

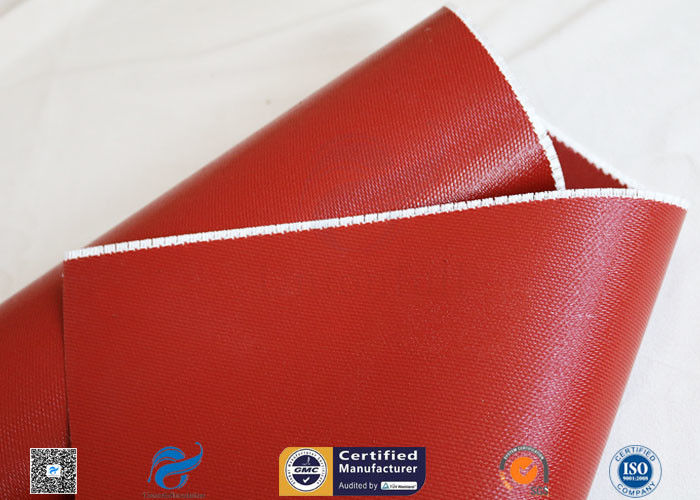

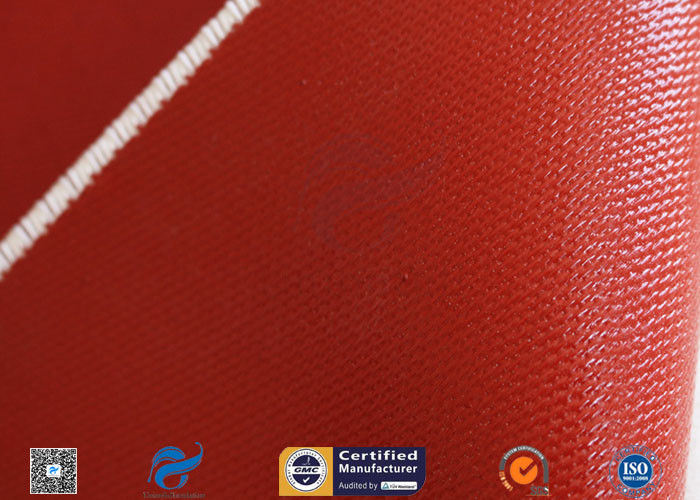

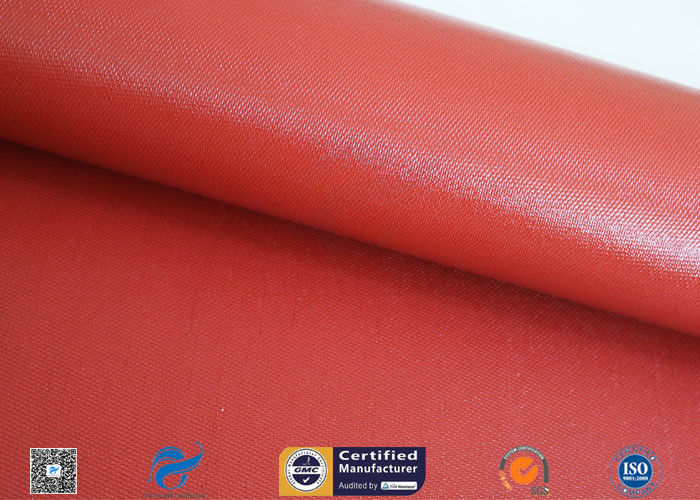

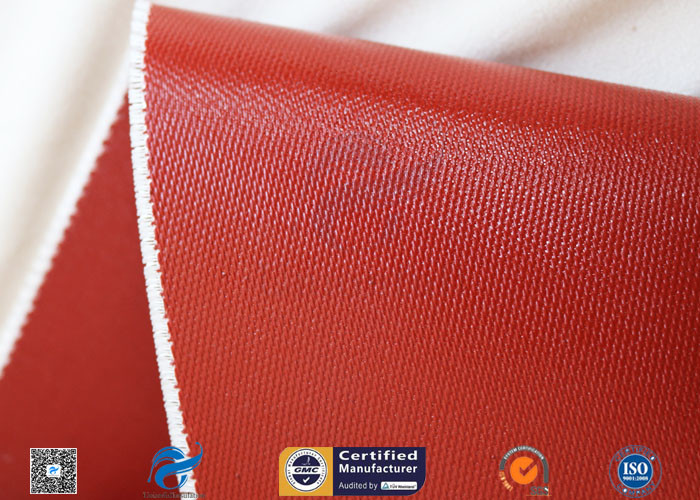

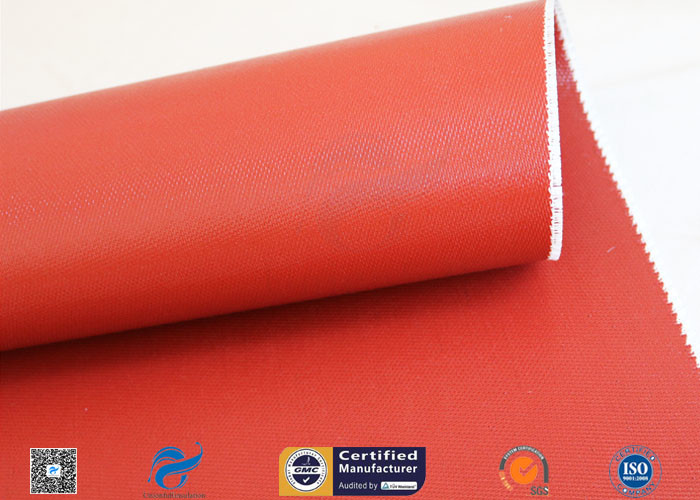

Pictures:

Heat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - CorrosionHeat Insulation 18oz 510g Red Silicone Coated Fiberglass Fabric Anti - Corrosion
