IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain

China IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain supplier
IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain supplier IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain supplier IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain supplier IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain supplier

Large Image :  IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.5/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 1
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red

IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain



UnionfullTM's Silicone coated fiberglass fabric is made from woven fiberglass fabric and then coated with silicone/rubber. Fiberglass fabric is a light weight material which has moderate tensile and compressive strength.

Our product quality is guaranteed as approved by ISO9001,SGS, TUV, and we are also the winner of the IMO rules:



.Flame Spread Testing

.Smoke & Toxicity Testing

.Non-Combustibility Testing



UPSE-8732S80 meets the following requirements:



Material:  Fabric:100% E-glass fiber

                Pattern:Silicone Rubber Coated

Coating side: Single-side

Coating Weight: 80g

Total Weight: 510g

Length: 50m/roll

Width: 1.5m

Flammable: ≤25%

Temperature: Fiberglass cloth ≤ 550℃

                      Silicone coating ≤ 260℃

Type: E-glass(Alkali free)

Feature: High Temp. resist, Chemical resistant, Fire Protection



Properties:



1.Good chemical resistant

Corrosion resistant to aqua regia, strong acids, alkalis etc.

2.Good weather ability

2.High strength, soft and tough,has good mechanical properties

3.Low thermal conductivity,0.035W/M·K—0.045 W/M·K±0.005(room temperature)

4.Good insulation

With high insulation properties, UV protection, anti-static.

5.Heat Resistant

Can withstand of temperature -70℃ to 260℃

6.Excellent Electrical Insulation



Main Applications:



-Fire doors & Fire curtains

-Fabric ductwork connector

-Insulation jackets, mattress and pad

-Welding/fire blankets

-Other fire control systems

-Fabric expansion joints





Data:



                                                                    Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2



Pictures:

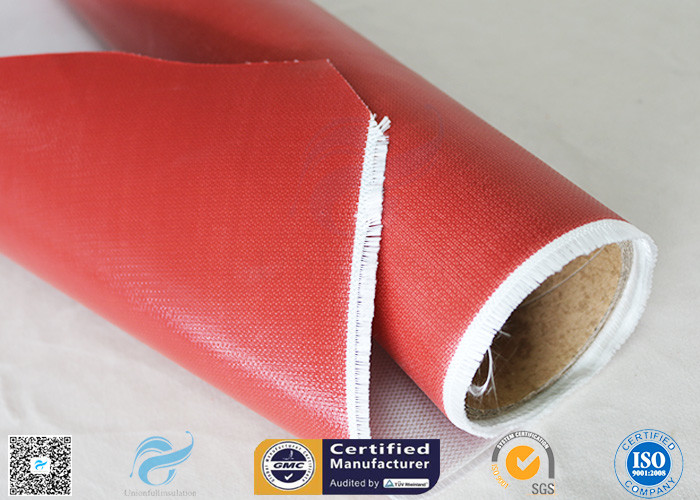

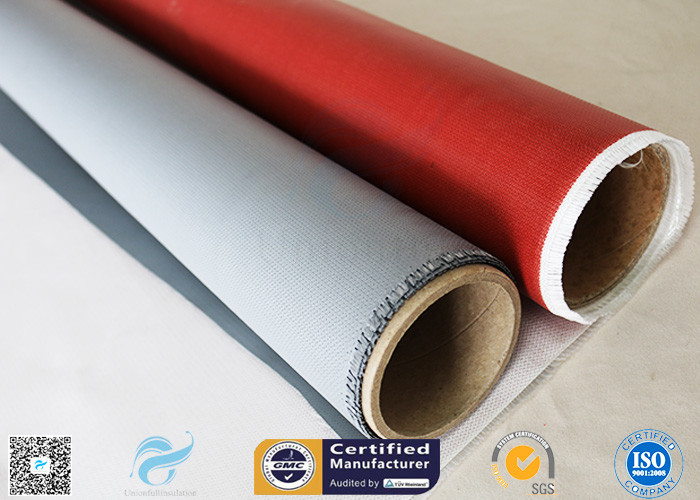

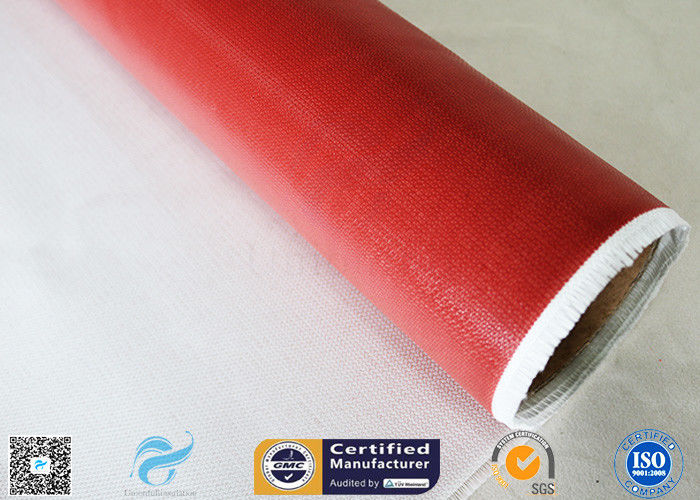

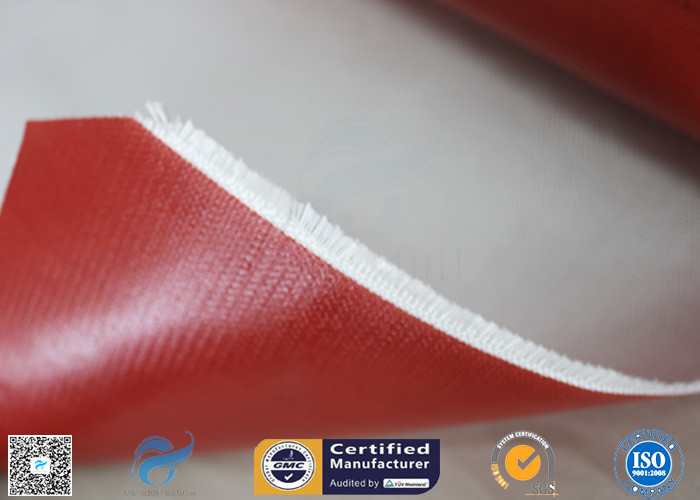

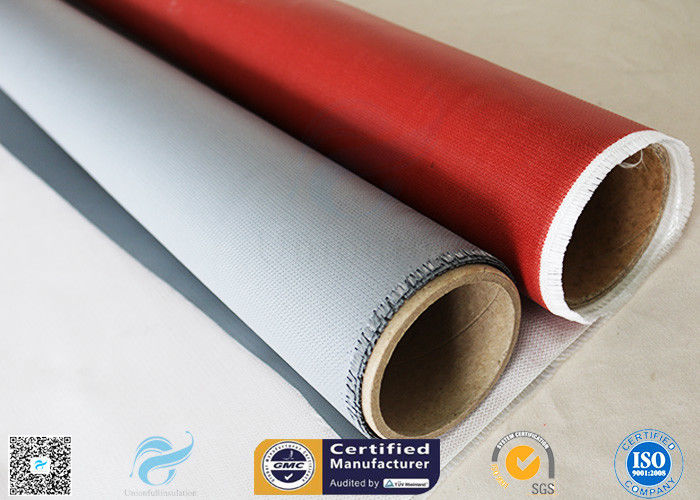

IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding CurtainIMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain
