1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist

China 1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist supplier
1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist supplier 1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist supplier 1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist supplier 1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist supplier

Large Image :  1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.5~3.5/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 1
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red

1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist



Silicone cloth is divided into single-sided coating and double-sided coating. UPSE-8732S80 is the 80g single-sided silicone glass fiber, which has the same properties as double-sided.



It is can be customized into different weight and material (PU,PVC,Acrylic etc.) according to customer's application.



E-glass fiber is an inorganic non-metallic material with excellent properties.The R2O content is less than 0.8%. It has excellent properties like good chemical stability, electrical insulation properties and high strength. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.



Product quality can be promised if you choose Unionfull, as we are the winner of IMO.



UPSE-8732S80 meets the request as below:



Material:  Fabric:100% E-glass fiber

                Pattern:Silicone Rubber Coated

Coating side: 80g on one side

Thickness:0.45mm

Weight: 510g

Length: 50m/roll

Width: 1.5m

Temperature: Fiberglass cloth ≤ 550℃

                      Silicone coating ≤ 260℃

Type: E-glass(Alkali free)

Feature: High Temp. resist, Chemical resistant, Fire Protection



Properties:

1.Fire Protection

Flammability ≤25%

2.High strength, soft and tough

3.Low thermal conductivity,0.035W/M·K—0.045 W/M·K±0.005(room temperature)

4.Good chemical resistant

Corrosion resistant to strong acids, alkalis, aqua regia and various organic solvents

5.Heat Resistant

Can withstand of temperature -70℃ to 260℃

6.Good dielectric properties



Application:



1.It is a fantasy protection thing for the public security fire safety key unit. When it is used for construction in public places such as large shopping malls, supermarkets, hotels, etc., such as welding, cutting, etc.: using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk



2.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.



3.Glass fiber cloth is mostly used in hand lay-up process. Glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.





4.In the transportation industry, buses, yachts, tankers, cars, etc. are used.



5.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.





Data:



                                                                    Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2

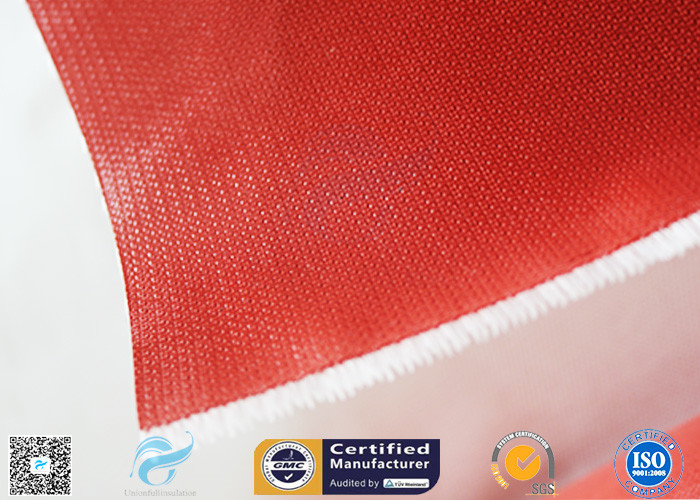

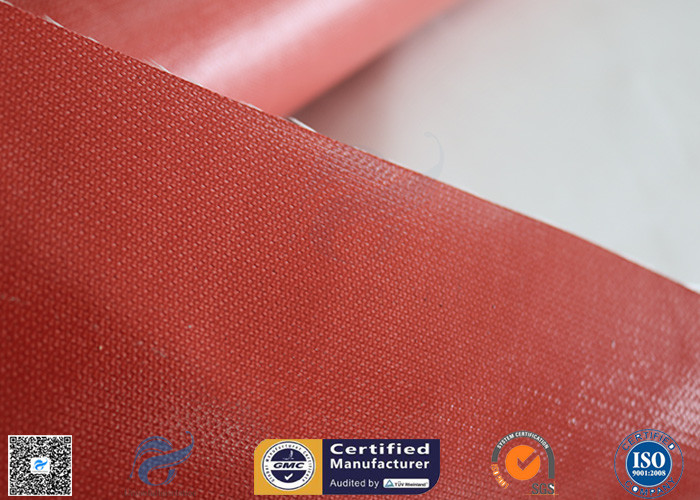

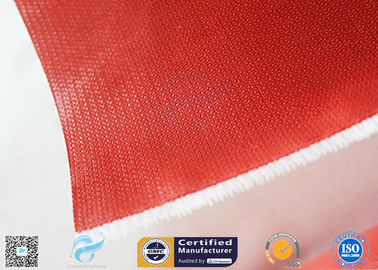

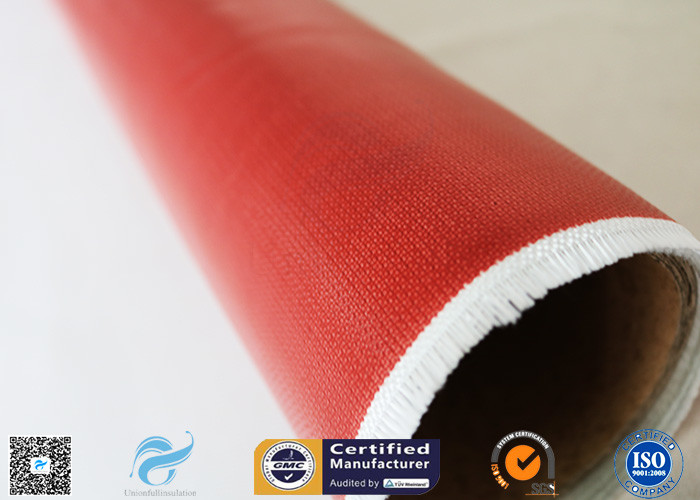

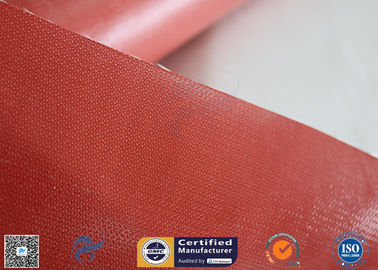

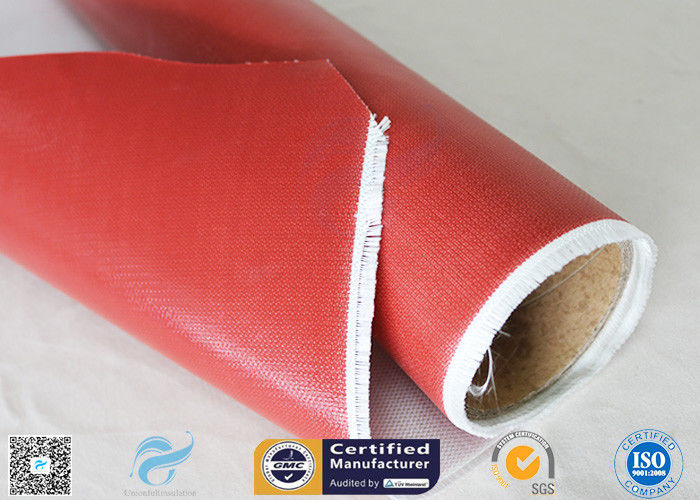

Pictures:

1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist
