|Material:||Silicone Coating||Coating Sides:||1|
|Roll Length:||50m||Total Weigth:||510g/m2|

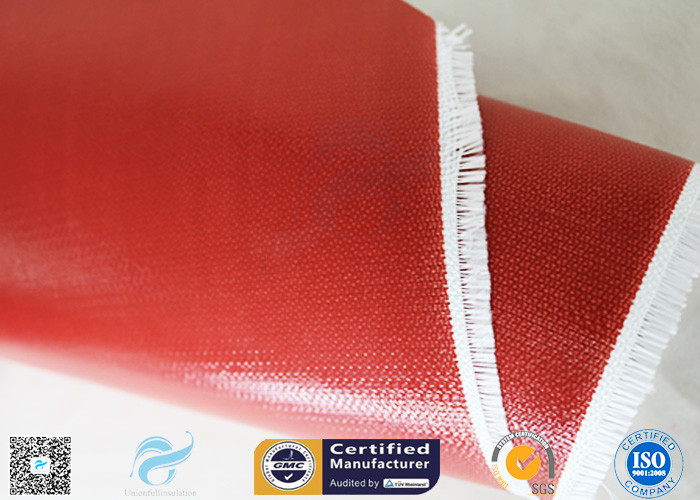

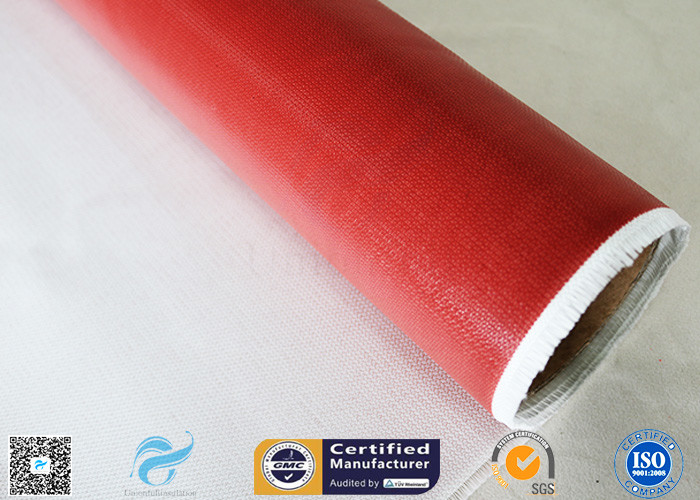

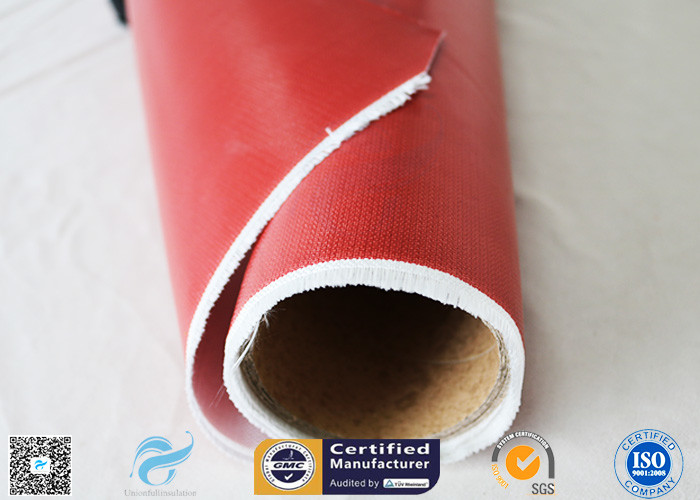

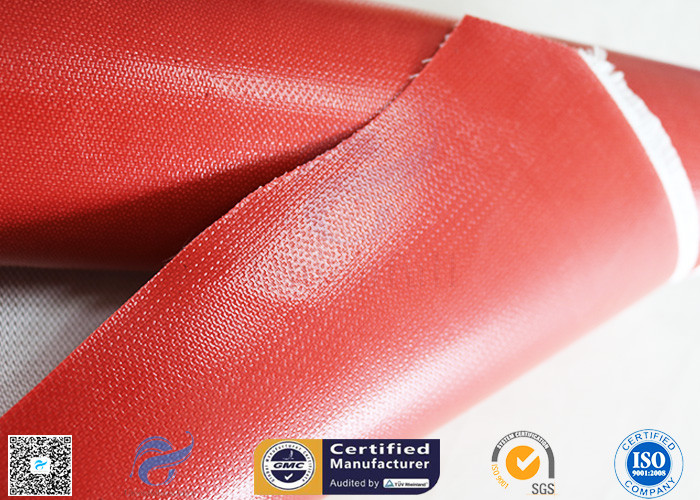

80g Single Side Silicone Coated Fiberglass Fabric Red Color Non-Flammable E-glass Fiber
This is the glass fiber coated with red color silicone rubber on one side, weight at 430g+80g, total 510g/m2. It can be used as good fire prevention materials as the low flammability ≤25%.
We also can coated different weight and material (PU,PVC,Acrylic etc.)on both sides according to customer's require.
E-glass fiber is an inorganic non-metallic material with excellent properties.The R2O content is less than 0.8%. It has excellent properties like good chemical stability, electrical insulation properties and high strength. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.
Unionfull, as the winner of IMO, has approved by SGS, TUV,ISO9001, we can promise you good quality and after-sales service.We heavily export our products to different companies / industrial houses in the UK, US, Europe, Australia, Africa and the Middle East, and our products get the good comments from the customers.
UPSE-8732S80 meets the request as following:
Coating: 80g red silicone rubber on one side
Length: 50m per roll
Temperature: Fiberglass cloth ≤ 550℃
Silicone coating ≤ 260℃
Type: E-glass(Alkali free)
Weave: 4HS(Four-harness satin)
Feature: High Temp. resist, High strength,Non-flammable
1.Low thermal conductivity,0.035W/M·K—0.045 W/M·K±0.005
2.Good heat insulation
Can be as good as before from the high temp.260℃ to low temp.-70℃
3.Good chemical resistant
Corrosion resistant to strong acids, alkalis, aqua regia and various organic solvents
Flammability ≤25%high strength.
Has good mechanical properties
6.With high insulation properties, UV protection, anti-static.
Fiberglass cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
2.Glass fiber cloth is mostly used in hand lay-up process. Glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.
Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.
4.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.
5.In the transportation industry, buses, yachts, tankers, cars, etc. are used.
|Item Name||Silicone Coated Fiberglass Fabric|
Fabric:100% E-glass fiber
Structure:Two layers--Silicone+Glass fiber
|Yarn type(Warp/Weft)||G37 1/0 0.7Z /G37 1/0 0.7Z|
|Length||50m per roll|
Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
