1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric

China 1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric supplier
1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric supplier 1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric supplier 1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric supplier 1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric supplier

Large Image :  1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.8~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray

1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric



UPSE-8732D80 is woven by satin weave(4HS).In this weave patter there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.The four-harness satin is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.



Unionfull's products have good reputation among customers all over the world, as our guaranteed quality and good-sales service.

We approved by ISO9001, TUV,SGS,and we are the winner of the IMO rules:

.Non-Combustibility Testing

.Smoke & Toxicity Testing

.Flame Spread Testing



UPSE-8732D80 is two sides silicone coating, which meet the request as following:



Coating: 40g silicone rubber on two sides

Weight: 510g,18oz

Thickness:0.45mm

Width: 1.2m

Length: 50m per roll

Temperature: Fiberglass cloth ≤ 550℃

                      Silicone coating ≤ 260℃

Type: E-glass(Alkali free)

Weave: 4HS(Four-harness satin)

Feature: High Temp. resist, High strength, Flame prevent



Properties:

1.Superior abrasion resistance

2.Excellent Release Non-stick surface

3.High Temperature resist, from -70 ℃ to 260℃

4.High softness, easy to process and cut

5.Good weather ability,the service life can be as long as ten years

6.Good chemical resistance



Application:

1.Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.



2.Electrical insulation
Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.



3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



4.It is a fantasy protection thing for the public security fire safety department. When it is used for construction like welding, cutting in public places such as large shopping malls, supermarkets, hotels, etc.  Using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk



5.Apart from above application, silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.



Data:

                                                                Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2

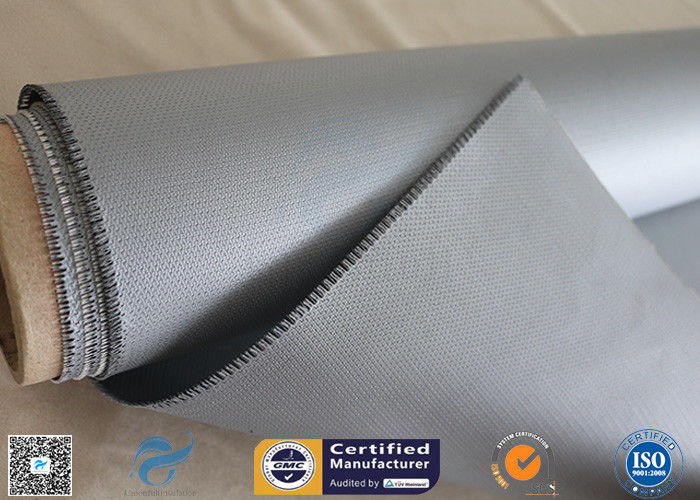

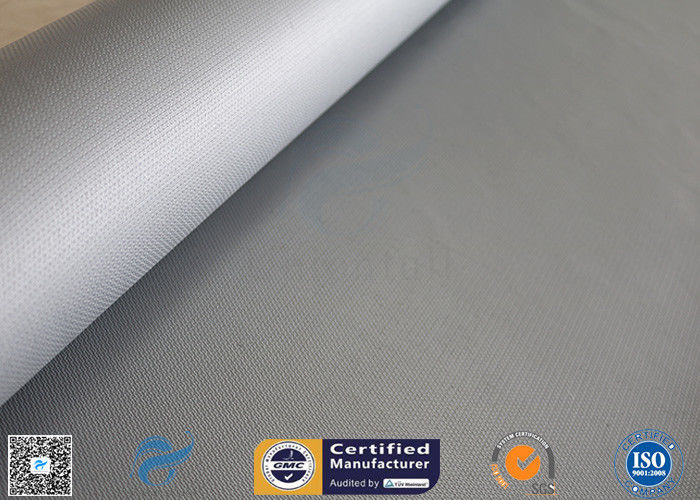

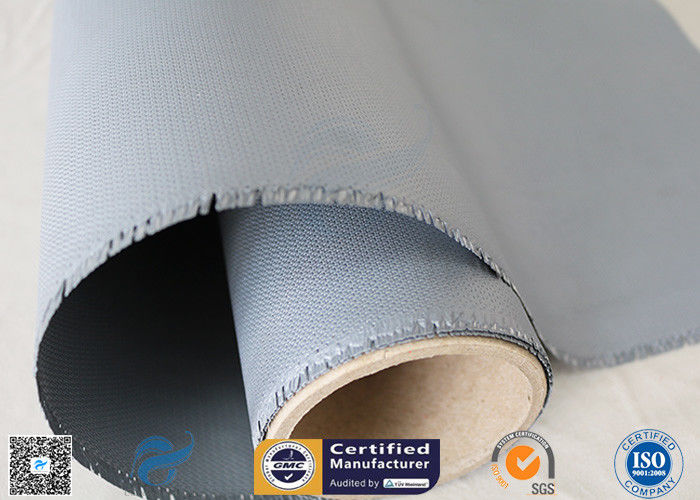

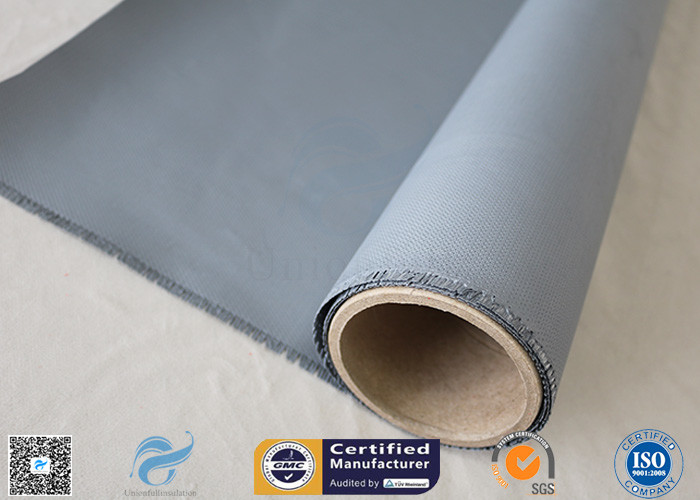

Pictures:

1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric1.2*50m Alkali Free 18OZ Two Sides 4HS Silicone Rubber Coated Fiberglass Fabric
