18OZ 510g Silicone Coated Fiberglass Fabric 1*50m High Intensity Thermal Insulation

China 18OZ 510g Silicone Coated Fiberglass Fabric 1*50m High Intensity Thermal Insulation supplier
18OZ 510g Silicone Coated Fiberglass Fabric 1*50m High Intensity Thermal Insulation supplier 18OZ 510g Silicone Coated Fiberglass Fabric 1*50m High Intensity Thermal Insulation supplier 18OZ 510g Silicone Coated Fiberglass Fabric 1*50m High Intensity Thermal Insulation supplier

Large Image :  18OZ 510g Silicone Coated Fiberglass Fabric 1*50m High Intensity Thermal Insulation

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd2.8~3.8/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: E-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Gray

18OZ 510g Silicone Coated Fiberglass Fabric 1*50m High Intensity Thermal Insulation



As an ideal fireproof material in industries, silicone coated glass fiber has high temperature, corrosion resistance and aging resistance, excellent elasticity and flexibilityis, it is mainly used in petroleum, chemical, cement, steel, energy and other fields, and has achieved good results. Unionfull can produce any size according to customer's requirements like width and weight per square meter. Our product quality is guaranteed as approved by TUV,SGS, ISO9001, and we are the winner of the IMO rules:



.Smoke & Toxicity Testing

.Flame Spread Testing

.Non-Combustibility Testing



UPSE-8732D80 is double-sided silicone coated glass fiber, also called two sides coating, which is fiberglass cloth coated 40g silicone rubber on each side, and total weight is 510g/m2.



Properties:



1.Superior Release Non-stick surface

2.No-hot shrink

3.Good heat insulations, work temperature up to 260d egree

4.High softness, good adhesion and no swarf

5.Good weather ability,the service life can be as long as ten years

6.Superior abrasion resistance



Application:



1.Glass fiber cloth is mostly used in hand lay-up process. Glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.



2.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.



3. Construction: Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.



4.It is a fantasy protection thing for the public security fire safety department. When it is used for construction like welding, cutting in public places such as large shopping malls, supermarkets, hotels, etc.  Using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk



5.Electrical insulation
Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.





Data:

                                                                Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 480 0.43 1/1.2/1.5 grey,red,white 1
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784S40 890 0.8 1/1.5 grey,red,white 1
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2
UPSE-8784D200 1050 1.00 1/1.5 grey,red,white 2



Pictures:

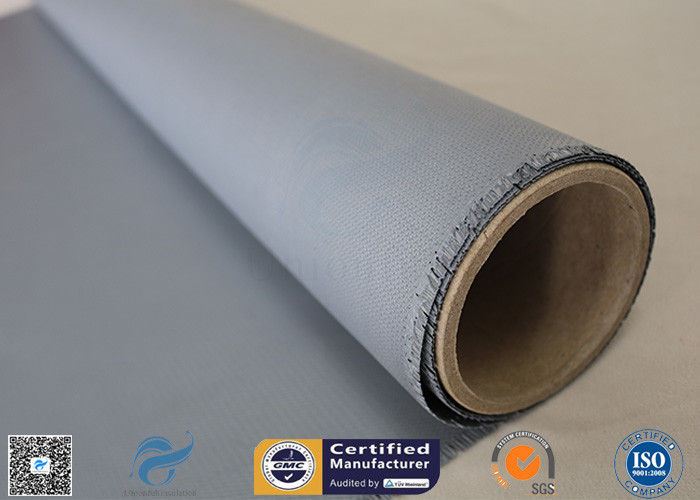

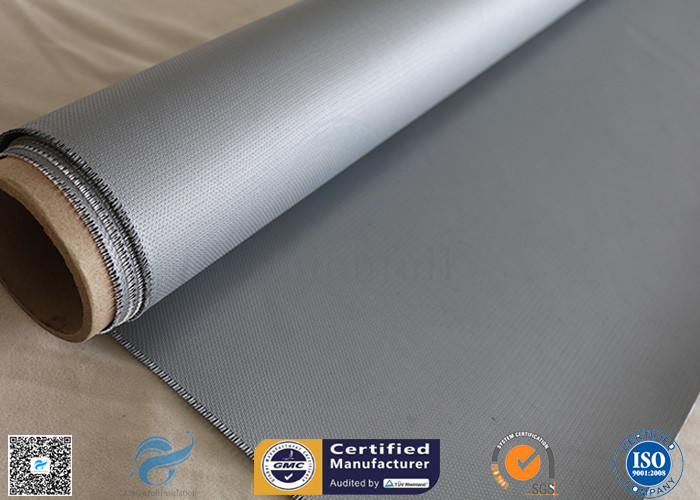

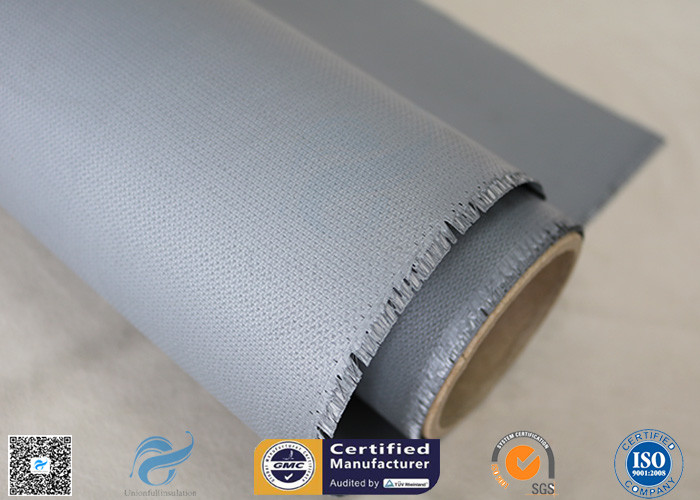

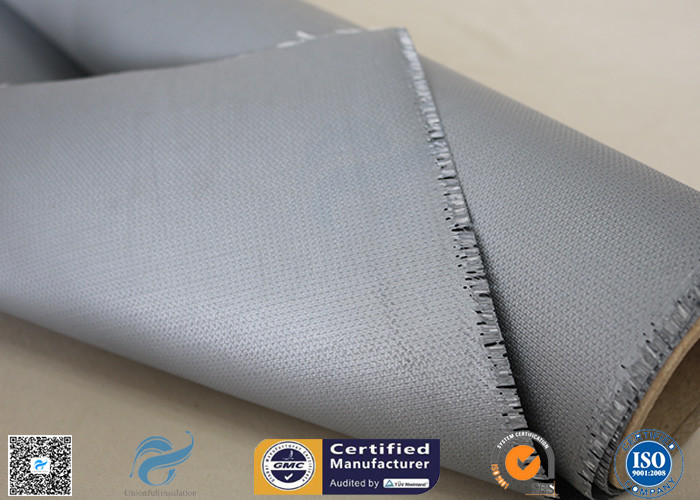

18OZ 510g Silicone Coated Fiberglass Fabric 1*50m High Intensity Thermal Insulation18OZ 510g Silicone Coated Fiberglass Fabric 1*50m High Intensity Thermal Insulation
