E Glass Satin Weave 0.45mm 80/80g Double Sides Silicone Coated Fiberglass Fabric

E-glass Satin Weave 0.45mm 80/80g Double-Sides Silicone Coated Fiberglass Fabric

Silicone cloth is a high-performance, multi-purpose composite material that is made of high-temperature, corrosion-resistant, high-strength glass fiber cloth, which is calendered or impregnated with silicone rubber.

Generally, it is classified by raw material composition:

(1) Alkali-free fiber (commonly known as E-glass): The R2O content is less than 0.8%, which is an aluminoborosilicate component. Its chemical stability, electrical insulation properties and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.

(2) Medium alkali fiber(C-glass): R2O content is 11.9%-16.4%. It is a kind of soda-calcium silicate component. Because of its high alkali content, it can not be used as electrical insulating material, but its chemical stability and strength are still good. Generally used as latex cloth, woven fabric substrate, acid filter cloth, window material substrate, and the like.

(3) High alkali fiber: A glass component having an R2O content of 15% or more. For example, glass fiber drawn from raw materials such as broken flat glass and broken glass. It can be used as waterproof and moisture-proof materials for battery separators, pipe wrapping cloths and mats.

This 0.45mm two sides silicone coated fiberglass fabric, the coating weight is 80g each side, basic cloth of this coated fiberglass fabric is 430g E-glass fiber cloth, so the total weight is 590g/m2.  It is woven from satin weave.

Data:

Properties:

1.Good insulation performance

 Used for low temperature -70 ° C to high temperature 260 ° C

2.low thermal conductivity:0.035W/M·K—0.045 W/M·K±0.005

3.Good chemical resistance, oil and water resistant (scratchable)

4.Fire Retardant

The fabric can not burning when it's burned by the flame

5.Non-adhesive, easy to wash

6.Constant size
The material of the fabric itself determines that it is not ductile and maintains flatness for a long time.

7.Insulation
Glass fiber fabric has good thermal insulation properties which greatly reduces the use rate of room air conditioners, thereby saving energy.

Application:

1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.

3.Anti-corrosion: Silicone-coated glass fiber cloth can be used as a pipeline, saving internal and external anti-corrosion layer, excellent anti-corrosion performance and high strength. It is an ideal anti-corrosion material.

4.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.

5.Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life are also used.

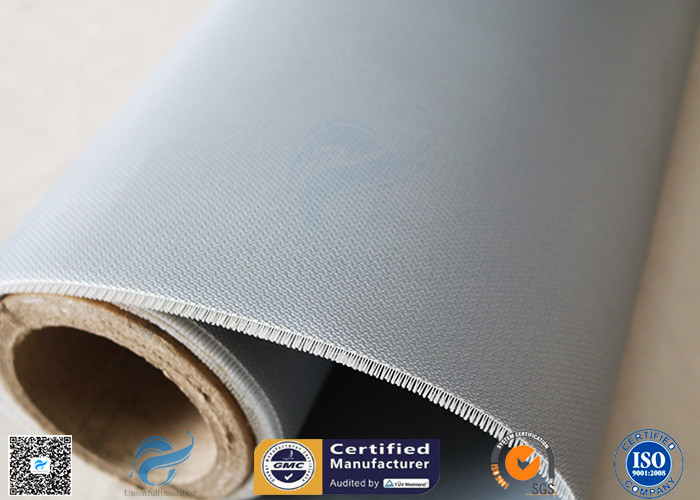

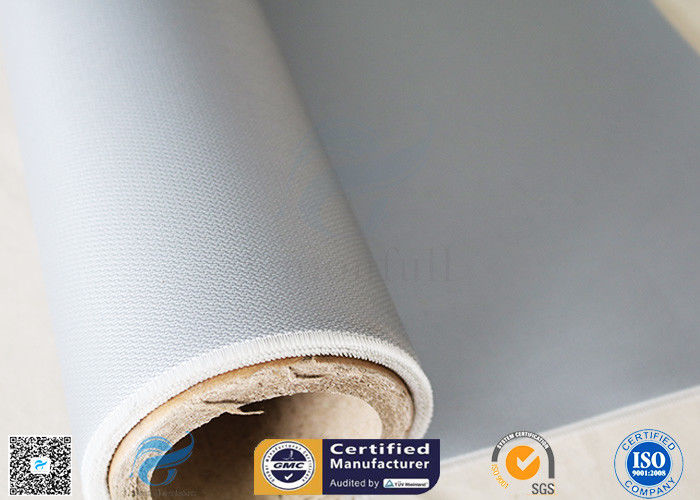

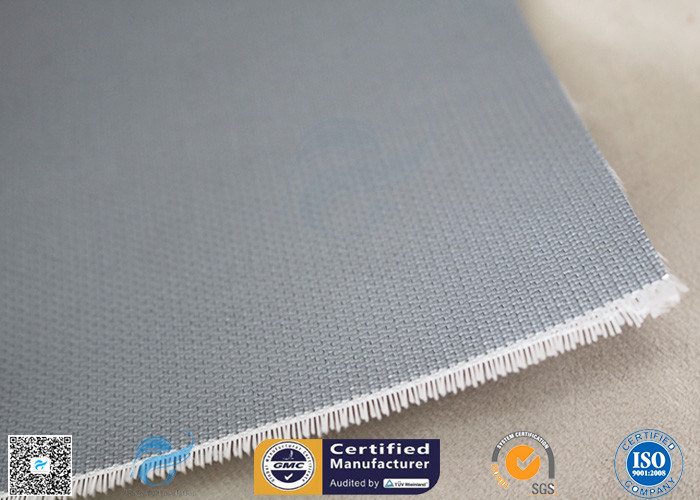

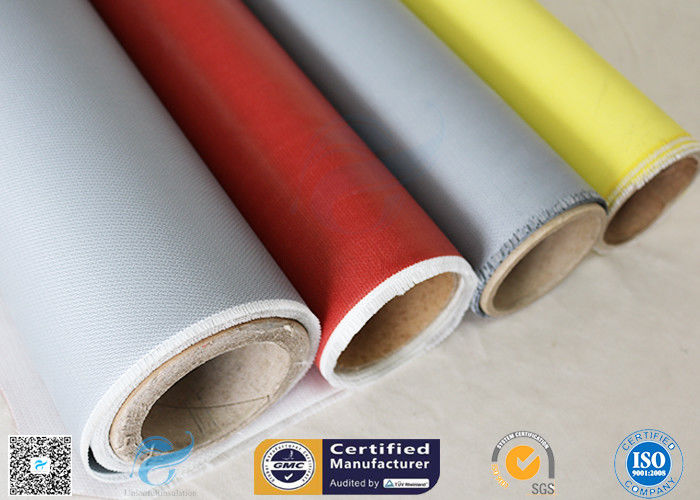

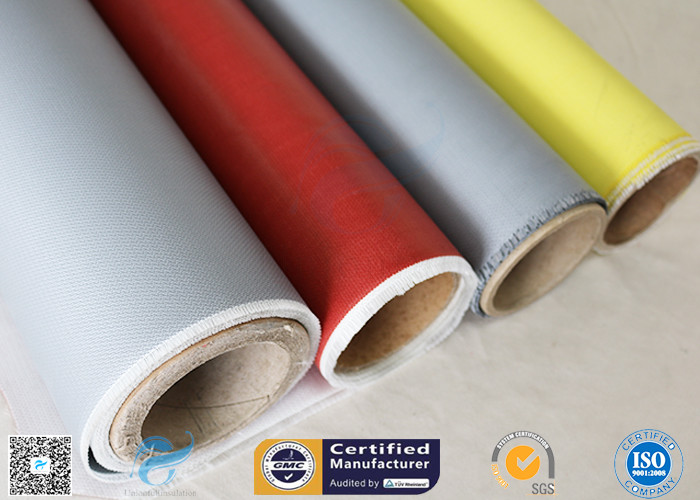

Pictures:
