C-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mm

China C-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mm supplier
C-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mm supplier C-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mm supplier C-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mm supplier C-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mm supplier

Large Image :  C-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mm

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSC-8732D160

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd1.8~2.9/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: C-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 590g/m2
Basic Weight: 430g/m2 Color: Red/Black/Yellow/Orange/Blue

C-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mm



Silicone cloth is a common fabric for fire blankets and welding curtain because of its excellent fire, temperature and corrosion resistance.



Classified by raw material composition:

(1) Alkali-free fiber (commonly known as E-glass): The R2O content is less than 0.8%, which is an aluminoborosilicate component. Its chemical stability, electrical insulation properties and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.

(2) Medium alkali fiber(C-glass): R2O content is 11.9%-16.4%. It is a kind of soda-calcium silicate component. Because of its high alkali content, it can not be used as electrical insulating material, but its chemical stability and strength are still good. Generally used as latex cloth, woven fabric substrate, acid filter cloth, window material substrate, and the like.

(3) High alkali fiber: A glass component having an R2O content of 15% or more. For example, glass fiber drawn from raw materials such as broken flat glass and broken glass. It can be used as waterproof and moisture-proof materials for battery separators, pipe wrapping cloths and mats.





Data:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSC-8732D160
Weight(g/m2) 590g/m2
Width 1000mm
Thickness 0.45mm
Weave Style 4H Satin
Fiber Style C-Glass
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Yarn type(Warp/Weft) G37 1/0 0.7Z /G37 1/0 0.7Z
Length 50m
Packing (Length/OD/Thickness) 1080x76x7mm
Others Carton





Properties:



1.Fireproof,waterproof

2.High temperature resistance, -50~260℃

3.low thermal conductivity,

4.thermal shock resistance, low heat capacity;

5.Excellent high temperature insulation performance,

6.Non-toxic, harmless, no adverse effects on the environment;



Application:



1.In the construction industry, glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.



2.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.



3.In the transportation industry, buses, yachts, tankers, cars, etc. are used.



4.Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life are also used.



5.Because silicone cloth has fireproof effect, it is also called fireproof cloth. It has high temperature and fireproof effect and is widely used in high temperature soft connection.

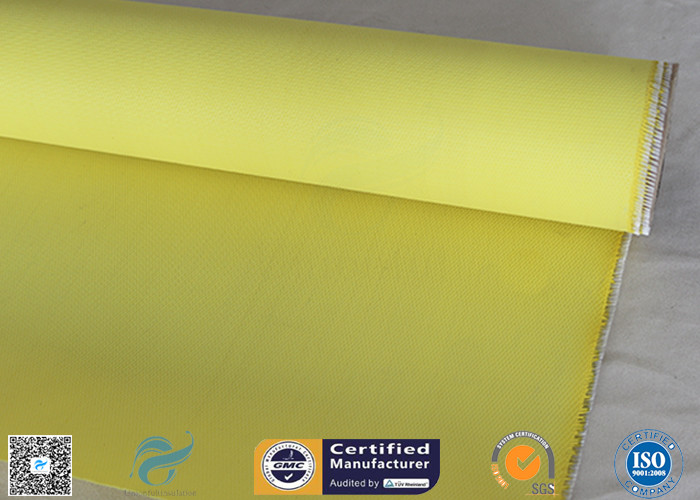

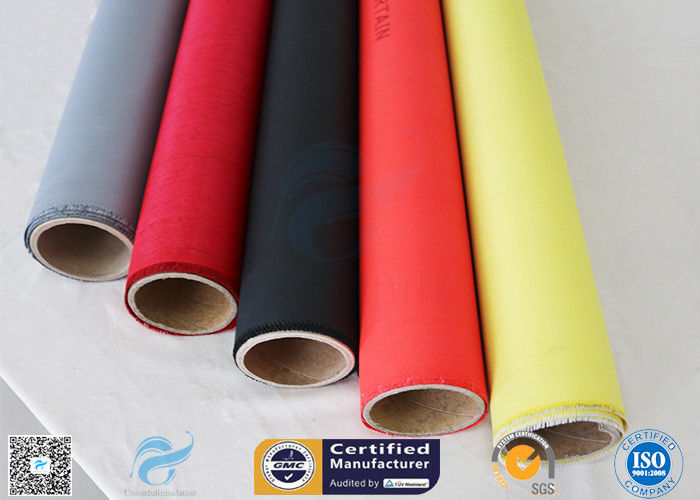

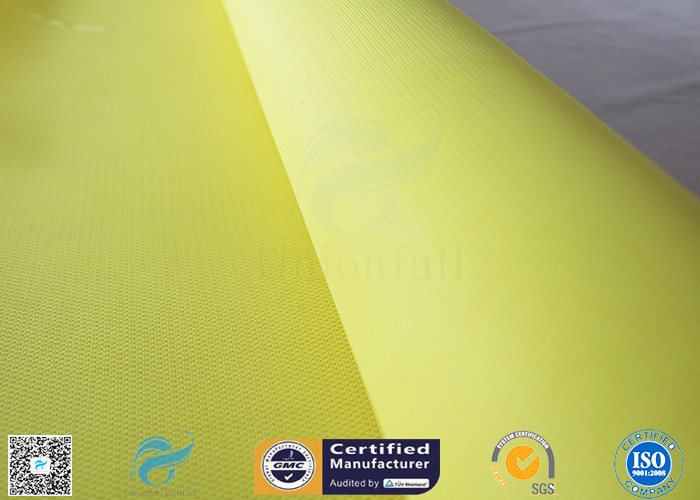

Pictures:



C-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mmC-glass 590g Satin Weave Silicone Coated Fiberglass Fabric Welding Curtain 0.45mm
