Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001,ISO2008,SGS,TUV |
Model Number: | UPSC-8732D160 |
Minimum Order Quantity: | 500m2 |
Price: | usd1.8~2.9/m2 |
Packaging Details: | 50 meters per roll, 20 rolls one pallet |
Delivery Time: | 15days after receive the payment |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 100000m2/Month |
Material: | Silicone Coating | Coating Sides: | 2 |
---|---|---|---|
Type: | C-Glass | Weave: | Satin 4SH |
Thickness: | 0.45mm | Width: | 1/1.2/1.5m |
Roll Length: | 50m | Total Weigth: | 590g/m2 |
Basic Weight: | 430g/m2 | Color: | Red/Black/Yellow/Orange/Blue |
Highlight: | silicone coated glass cloth,silicone coated fiberglass cloth |
High-temp 260℃ Alkali Free 0.45mm Yellow Color Silicone Coated Fiberglass Fabric
Silicone Coated Glass Fiber is a high-temp resist, anti-corrosion,high strength thermal insulation materials which is widely used in industries as welding curtain, fireproof blanket, insulation cover, reinforced material etc.
Glass fiber cloth is made of glass ball or waste glass by high temperature melting, drawing, winding, weaving and other processes.Each bundle of fiber strands consists of hundreds or even thousands of monofilaments.
The base material of the glass fiber cloth is an alkali-free glass fiber yarn, and its production process is generally made by using an enhanced boring agent. Glass fiber cloth is an indispensable insulating banding material for motors and electrical because of its excellent insulation performance and high temperature resistance.
Data:
Item Name | Silicone Coated Fiberglass Fabric | ||||||||
Products Code | UPSC-8732D160 | ||||||||
Weight(g/m2) | 430g/m2 | ||||||||
Width | 1000mm | ||||||||
Thickness | 0.45mm | ||||||||
Weave Style | 4H Satin | ||||||||
Fiber Style | C-Glass | ||||||||
Ends Warp/Weft(cm) | 17.4/14 | ||||||||
Tensile Strength(N/MM) | 270/170 | ||||||||
Yarn type(Warp/Weft) | G37 1/0 0.7Z /G37 1/0 0.7Z | ||||||||
Length | 50m | ||||||||
Packing | (Length/OD/Thickness) | 1080x76x7mm | |||||||
Others | Carton |
Properties:
The performance characteristics of silicone cloth are a lot:
High temperature resistance,
low thermal conductivity,
thermal shock resistance, low heat capacity;
Excellent high temperature insulation performance,
long tensile strength, long service life,
anti-melting aluminum, zinc and other non-ferrous metals;
good low temperature and high temperature strength
Non-toxic, harmless, no adverse effects on the environment;
Application:
1.In the construction industry, glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.
2.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.
3.In the transportation industry, buses, yachts, tankers, cars, etc. are used.
4.Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life are also used.
5.Because silicone cloth has fireproof effect, it is also called fireproof cloth. It has high temperature and fireproof effect and is widely used in high temperature soft connection.

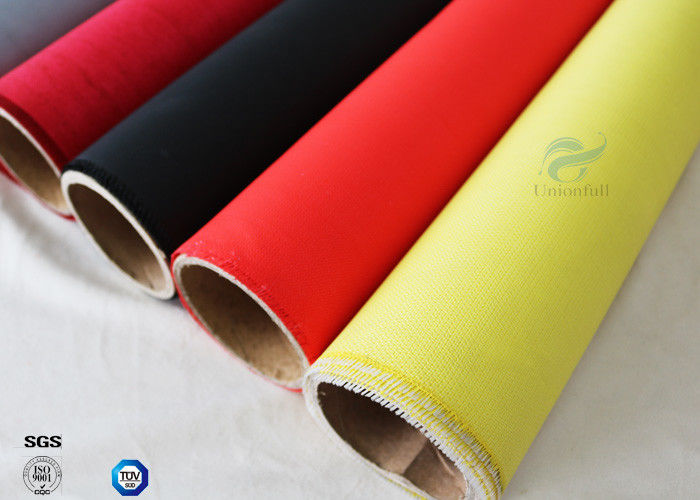

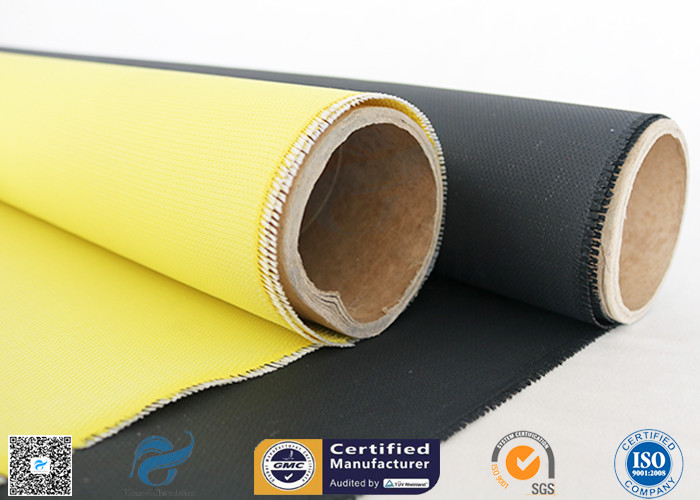

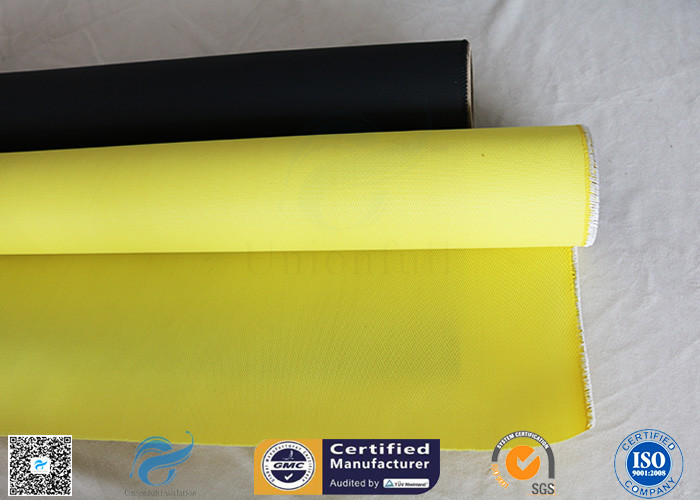

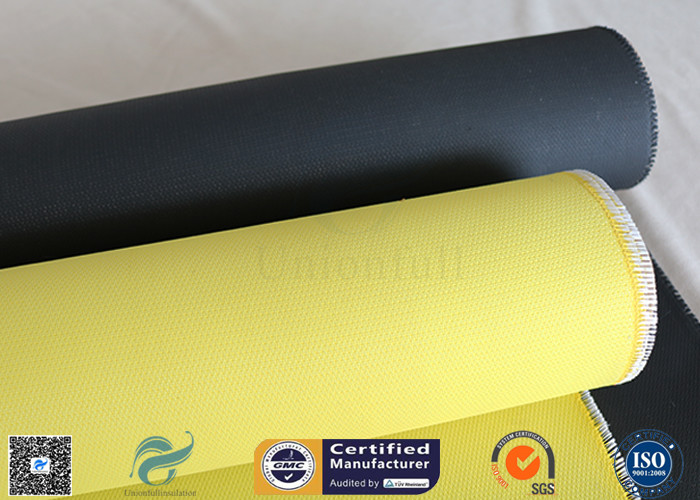

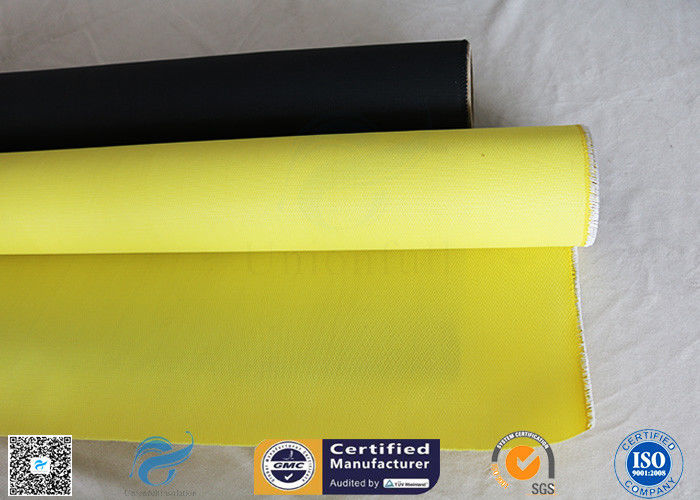

Pictures:
Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
