Welding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass Fabric

China Welding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass Fabric supplier
Welding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass Fabric supplier Welding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass Fabric supplier Welding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass Fabric supplier Welding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass Fabric supplier

Large Image :  Welding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001,ISO2008,SGS,TUV
Model Number: UPSC-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: usd1.8~2.9/m2
Packaging Details: 50 meters per roll, 20 rolls one pallet
Delivery Time: 15days after receive the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Contact Now
Detailed Product Description
Material: Silicone Coating Coating Sides: 2
Type: C-Glass Weave: Satin 4SH
Thickness: 0.45mm Width: 1/1.2/1.5m
Roll Length: 50m Total Weigth: 510g/m2
Basic Weight: 430g/m2 Color: Red/Black/Yellow/Orange/Blue

Welding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass Fabric



Silicone Coated Fiberglass Fabric is a high intensity, anti-corrosion,fireproof thermal insulation materials, it is widely used in industries as welding curtain, fireproof blanket, insulation cover, reinforced material etc.



In general, there are four methods to weave the fabric: plain, twill, satin and gauze. UPSC-8732D80 is weaved by 4HS(satin weave). Compared with plain weave and twill weave, it is of high density,high intensity, with a soft and loose structural weave with a good texture.



This fabric is glass fiber coated with 80g silicone rubber on both sides(40/40g), so the total weight is 510g/m2. Unionfull supply all kinds of coating and weight as customer's requiry.



Data:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSC-8732D80
Weight(g/m2) 430g/m2
Width 1000mm
Thickness 0.43mm
Weave Style 4H Satin
Fiber Style C-Glass
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Yarn type(Warp/Weft) G37 1/0 0.7Z /G37 1/0 0.7Z
Length 50m
Packing (Length/OD/Thickness) 1080x76x7mm
Others Carton



Properties:

1.Insulation
Glass fiber fabric has good thermal insulation properties not found in other fabrics.

2.High temperature resist

Working temperature from -70℃ to 260℃
3.Scale stability and heat resistance are excellent.

4.Light transmittance of 6~13%

5.Anti-corrosion

Resistant to strong acids, alkalis, aqua regia and various organic solvents.

6.High intensity, small elongation (3%)

7.Flammbility ≤25%



Application:

1.In the transportation industry, buses, yachts, tankers, cars, etc. are used.



2.Because silicone cloth has fireproof effect, it is also called fireproof cloth. It has high temperature and fireproof effect and is widely used in high temperature soft connection.


3.In the construction industry, glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.



4.Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life are also used.



5.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.

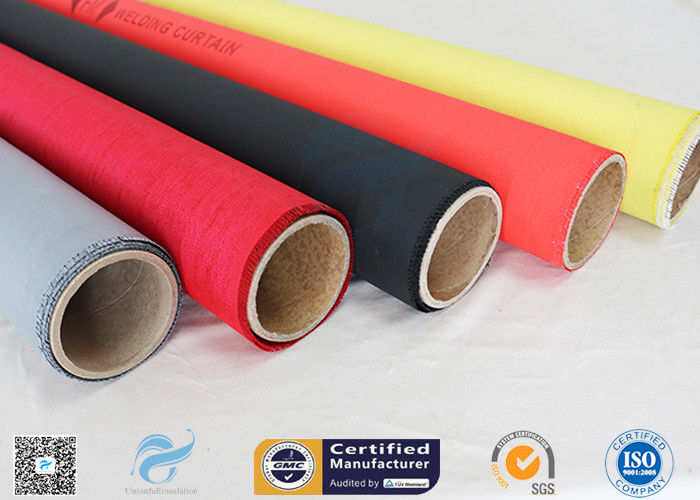

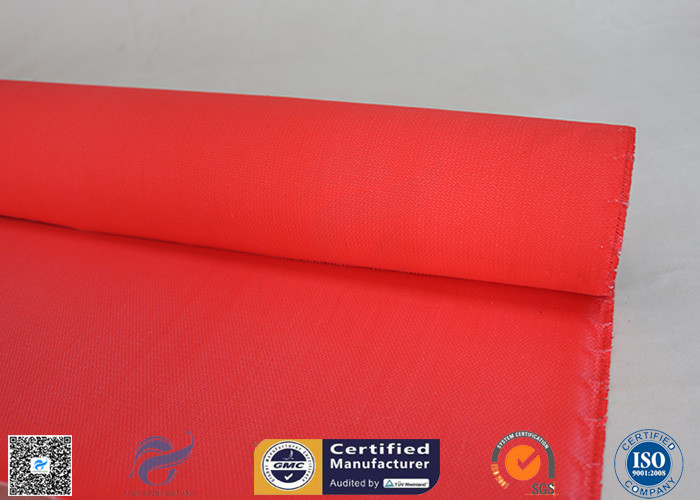

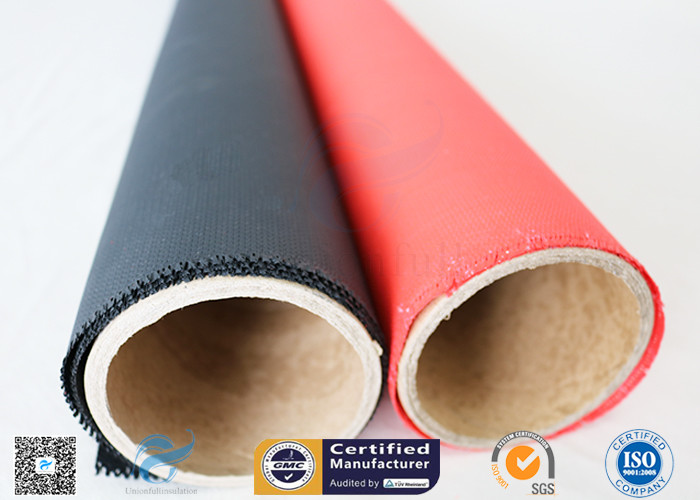

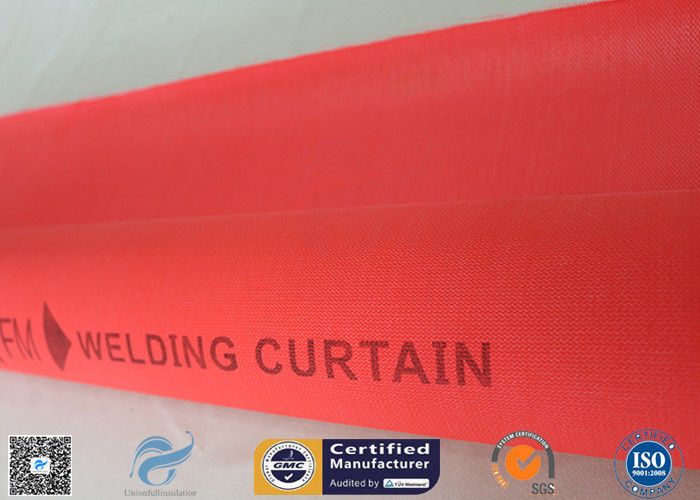

Pictures:

Welding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass FabricWelding Curtain High Intensity 40/40g Satin Weave Silicone Coated Fiberglass Fabric
