590g Satin Weave Silicone Two Sides Coated Fiberglass Fabric High Temperature Resist

590g Satin Weave Silicone Two Sides Coated Fiberglass Fabric High Temperature Resist



UPSE-8732D160 is a glass fibre product coated on two sides with silicone rubber that meets the following requirements:



.High Temperature Resist, from -50℃ to 260℃

.Weave Pattern: Satin Weave

.Weight: 590g/m2

.Coating Type: Silicone Rubber

.Thickness: 0.45mm

.Color: Gray/Red/White/Orange/Blue/Yellow



E-glass, also known as alkali-free glass, is a borosilicate glass. It is currently the most widely used glass component for glass fiber, has good electrical insulation and mechanical properties, is widely used in the production of glass fiber for electrical insulation.



Silicone cloth has fireproof effect, since the material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air, so it is also called fireproof cloth. It is mainly used in industry: heat insulation, fire prevention and flame retardant.





Data:



Main Specifications
Code	Weight (g/m2)	Thickness (mm)	Width(m)	Color	Coating sides
UPSE-8732S40	470	0.45	1/1.2/1.5	grey,red,white	1
UPSE-8732D80	510	0.45	1/1.2/1.5	grey,red,white	2
UPSE-8732S80	510	0.45	1/1.2/1.5	grey,red,white	1
UPSE-8732D160	590	0.45	1/1.2/1.5	grey,red,white	2
UPSE-8784D80	930	0.8	1/1.5	grey,red,white	2
UPSE-8784D160	1010	1.00	1/1.5	grey,red,white	2





Properties:



1.Flame retardant performance: non-combustible

2. Density: 100-220Kg/m3



3. Moisture absorption rate: <5%



4.Chemical Resistant

Resistant to strong acids, alkalis, aqua regia and various organic solvents.

5.High Temperature resist

Operating temperature from -50℃ to 260 ° C



6.Insulation

Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.



7.Shade, light, ventilation
This fabric eliminates up to 80% of solar radiation, maintains indoor air circulation, and provides a clear view of the outdoor scene.







Application:

1. Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

2.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.

3. In the transportation industry, buses, yachts, tankers, cars, etc. are used.

4. In the construction industry, there are kitchens, column beams, decorative panels, fences, etc.



5.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

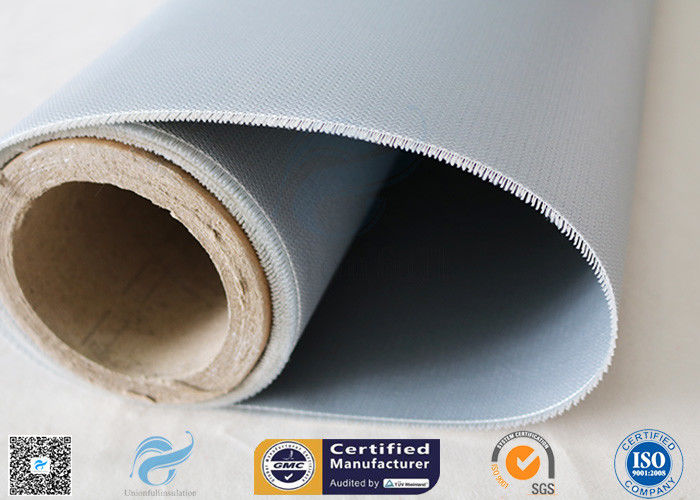

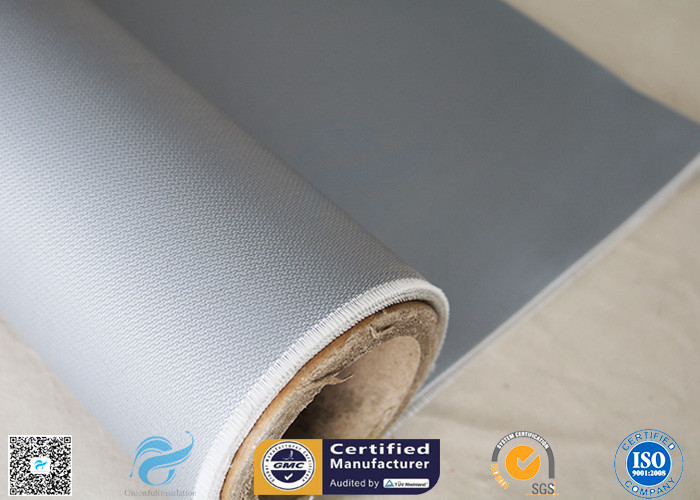

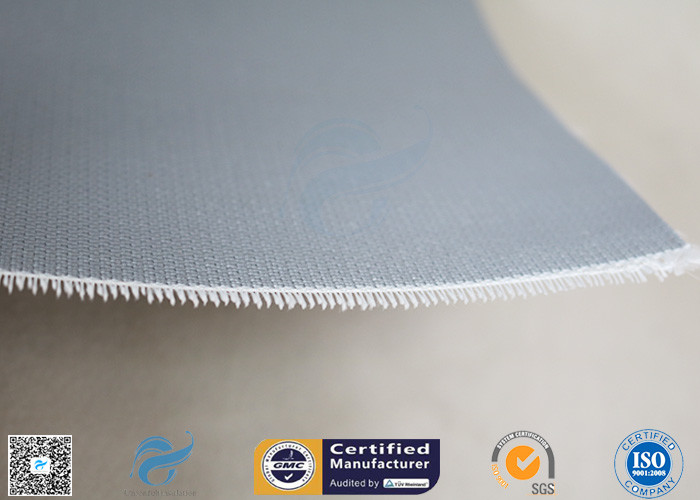

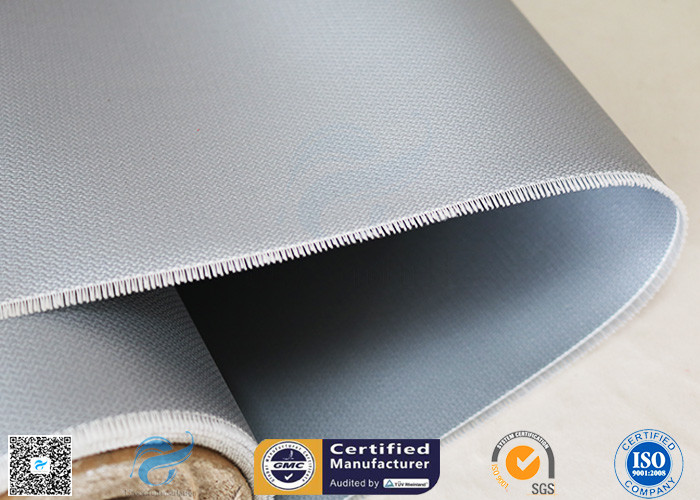

Pictures:





Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
