High Temperature Satin Weave 80/80g Gray Color Silicone Coated Fiberglass Fabric

High Temperature Satin Weave 80/80g Gray Color Silicone Coated Fiberglass Fabric

Silicone coated fiberglass fabric is a new type of high molecular elastomer with excellent heat aging resistance, high insulation performance and excellent weather resistance. It can withstand high temperatures of 260 degrees and withstand low temperatures of -50 degrees. E-glass fiber has high tensile strength and long service life.

UPSE-8732D160 is the basic glass fiber coated with 80g silicone rubber on both sides, total weight is 590g/m2, and 0.45mm thick. Satin weave is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.The four-harness satin is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.

Data:

Properties:

1.Thermal Insulation

The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

2.Anti-corrosion

Resistant to strong acids, alkalis, aqua regia and various organic solvents.

3.Temperature resistance 280 ° C, and low temperature -70 ° C

4.Low thermal conductivity: 0.035W/M·K—0.045 W/M·K±0.005 (at normal temperature)Temperature resistant

5.Elongation The elongation of glass fibers is generally 3% to 4%, which is much smaller than other natural and synthetic fibers.

6.High tensile strength, especially high temperature retention strength, is an important characteristic of E glass fiber

Application:

1. glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.

2. Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

3. In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.

4.Glass fiber cloth is generally used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

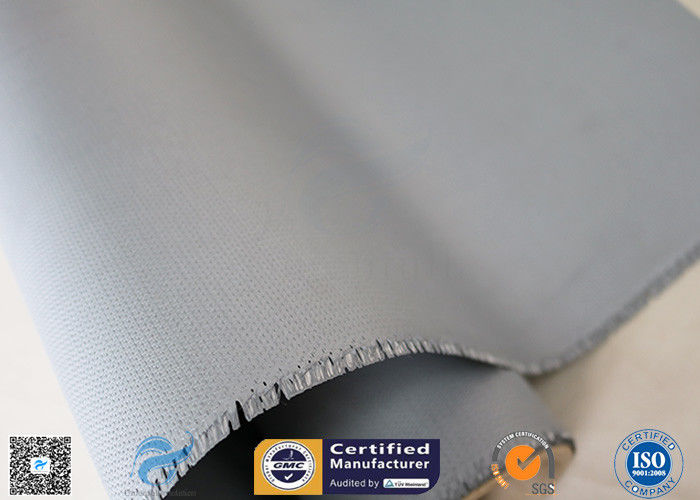

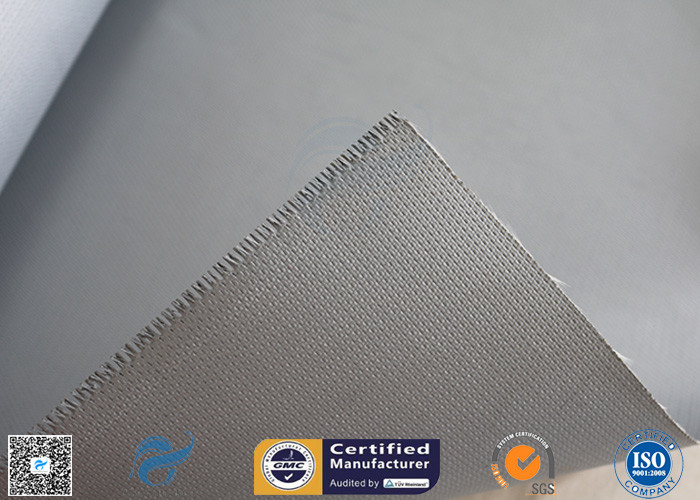

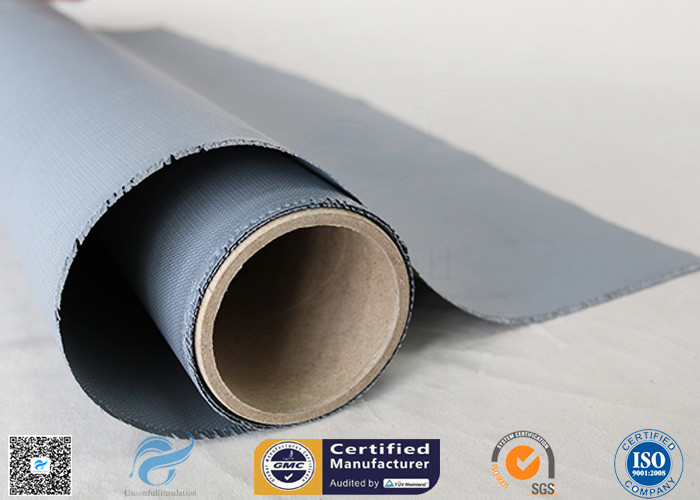

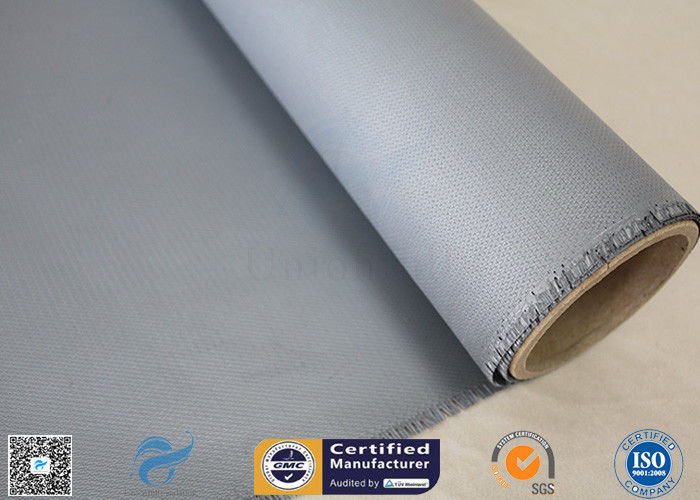

Pictures:

Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
