Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001,ISO2008,SGS,TUV |
Model Number: | UPSE-8732D50 |
Minimum Order Quantity: | 500m2 |
Price: | $1.6~3/m2 |
Packaging Details: | 50 meters one roll, 20 rolls one pallet |
Delivery Time: | 15days after receive the payment |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 100000m2/Month |
Material: | Silicone | Coating Sides: | 2 Sides |
---|---|---|---|
Weight: | 480g/m2 | Thickness: | 0.45mm |
Width: | 1/1.2/1.5m | Weave: | 4HS |
Roll Length: | 50m | Temperature: | -50~260℃ |
Type: | E-Glass | Color: | Red |
Highlight: | silicone coated fiberglass cloth,silicone coated glass fabric |
Fire Blanket 480g 0.43mm High Strength Silicone Coated Fiberglass Fabric Red Color
Silicone Coated Fiberglass Fabric is usually used to make fire blankets, welding blankets because of it's excellent insulation performances such as flame retardant, fire protection,high strength and temeperature resistance.The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
This type of fiberglass fabric is coated with red silicone rubber on both sides, and the total weight is 480g/m2, 0.43mm thick. Our regular color are red, gray and black, certainly all color can be customized as your requirements.
DATA:
Main Specifications | |||||
Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
UPSE-8732D50 | 480 | 0.43 | 1/1.2/1.5 | grey,red,white | 2 |
UPSE-8732D80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
UPSE-8732D160 | 590 | 0.5 | 1/1.2/1.5 | grey,red,white | 2 |
UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
Properties:
1.Fire protection
Non-combustible in contact with flame, long time using temperature 260°C.
2.With high insulation properties, UV protection,
3.High strength
Soft and tough, it can be cut and processed.
4.Excellent weather resistance in the field, life expectancy up to 10 years
5.Good chemical resistance, oil and water resistant (scratchable)
6.Excellent insulation
Silicone coated fibeglass fabric features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeve etc..
Applications:
1.Electrical insulation: Silicone cloth has a high electrical insulation grade, can withstand high voltage load, and can be made into insulation cloth, casing and other products.
2.Chemical: Silicone rubber coated glass fiber cloth can be used as a pipeline, saving internal and external anti-corrosion layer, excellent anti-corrosion performance and high strength, it is an ideal anti-corrosion material.
3.Welding blanket/ fireproof blanket
As the silicone fiberglass cloth absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air. It's used to make fire blanket, fire curtain, temperature resistant flame retardant material.
4.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.
5.In the transportation industry, always used to buses, yachts, tankers, cars, etc.
6.In the construction industry, there are kitchens, column beams, decorative panels, fences, etc.

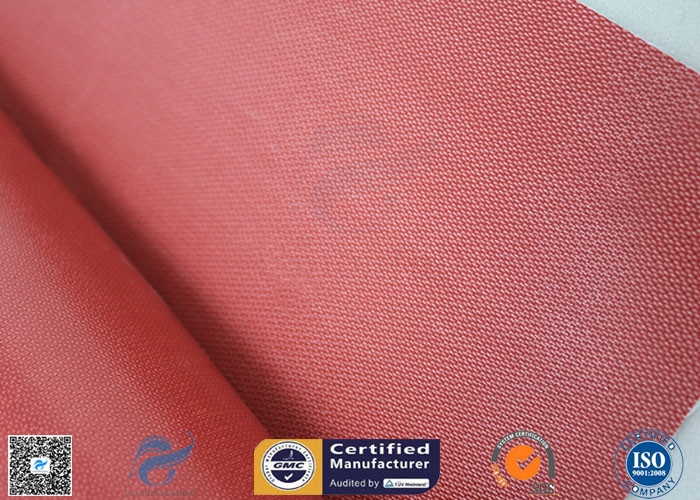

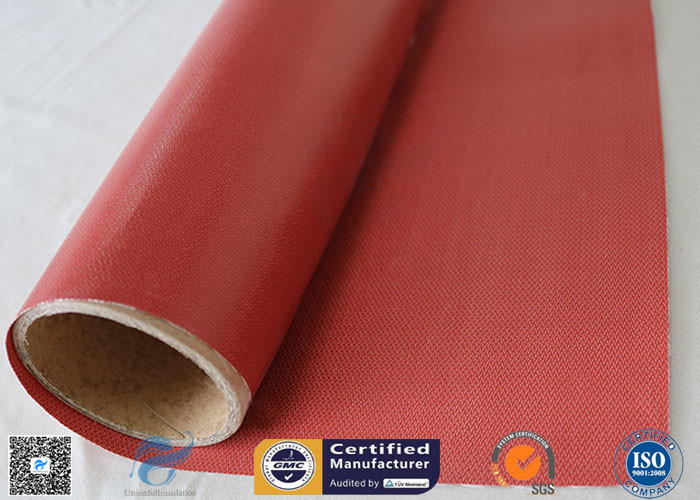

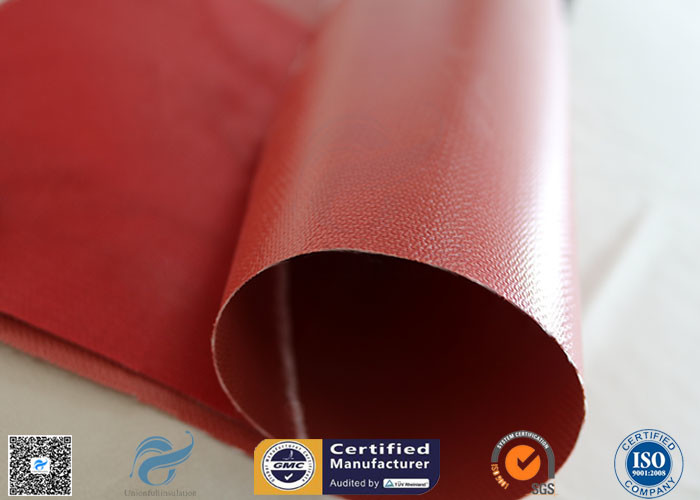

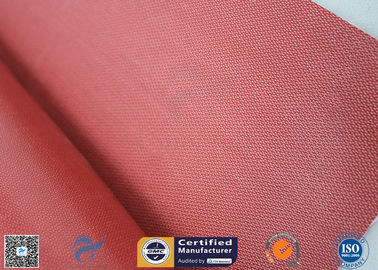

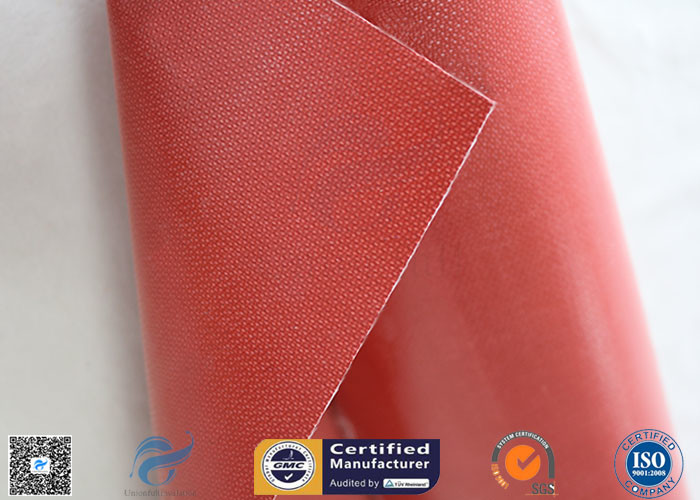

Pictures:
Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
